Telemetry 2.0 support for RDKB RPI -User Manual

Created on May 26, 2021

Introduction

While migrating to Telemetry2.0 from DCA telemetry, the traditional log grepping is targetted to reduce as much as possible by instrumenting the markers coming from RDKB components.To achieve this, RDKB components are supposed make required changes with the use of APIs from Telemetry 2.0 shared library.

RDKB Telemetry Components

Xconf Server
RPI with rdkb image
telemetry2_0

Environment Setup

2.1. Build procedure

Follow the wiki page to make yocto’s RDK-B image from yocto workspace in your PC.

RDK-B R-Pi Yocto 4.0 – Kirkstone

Note: Proceed the build procedure in Ubuntu18 version VM

2.2. Pre– requisites for enabling Telemetry2_0 (Version : 2) – Single profile

Telemetry Version : 2 (by default telemetry version as 1)

Below are the steps for enabling Telemetry 2.0 in RPI,
1. dmcli eRT setv Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Enable bool true
2. dmcli eRT setv Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version string 2
3. dmcli eRT setv Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL string https://xconf.rdkcentral.com:19092/loguploader/getT2Settings
4. touch /nvram/enable_t2_debug
5. reboot the device
6. pidof “telemetry2_0” – check the running status of telemetry2

After board boot up, disable log rotation by using the command:

$ systemctl disable rdkbLogMonitor

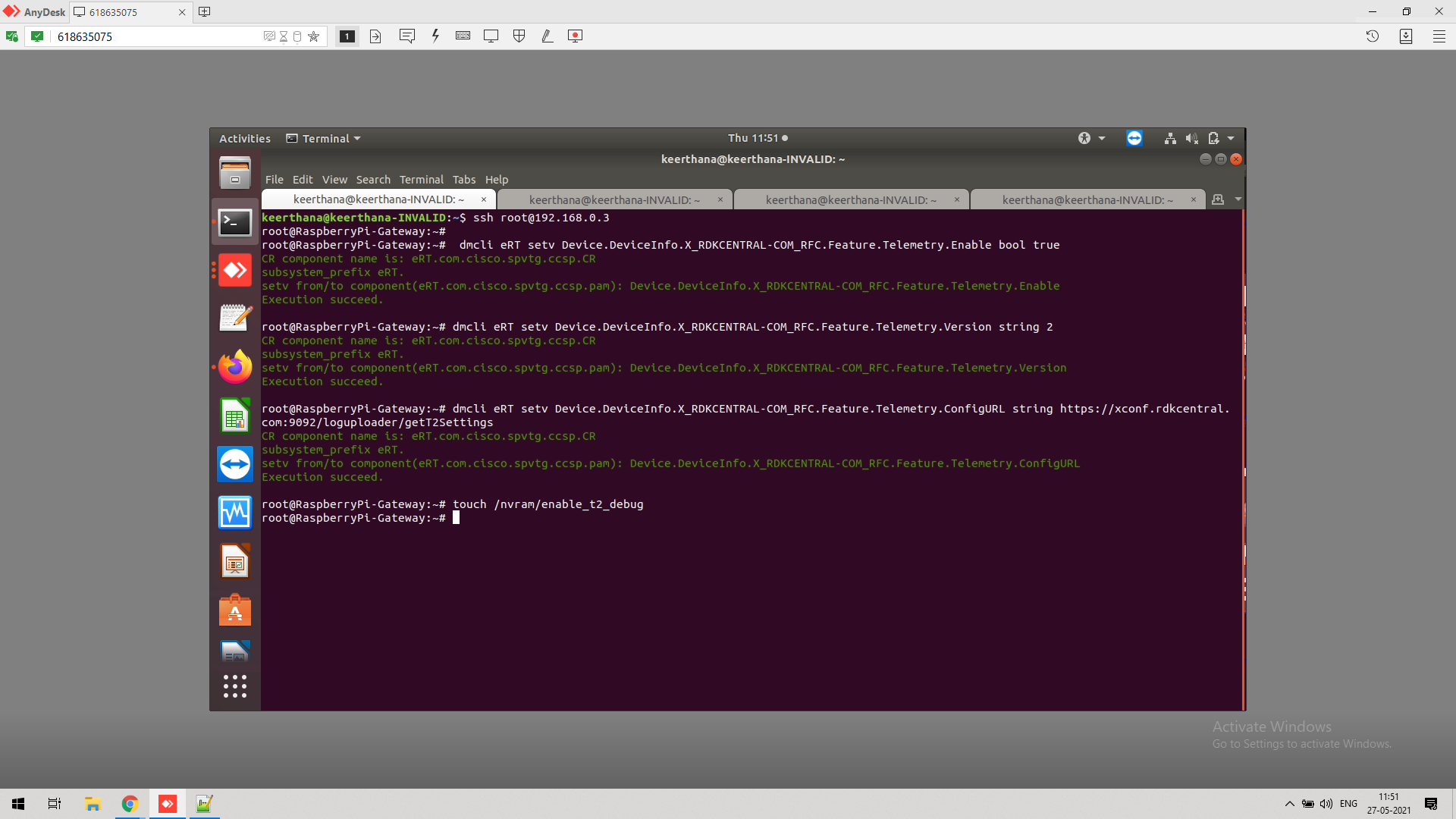

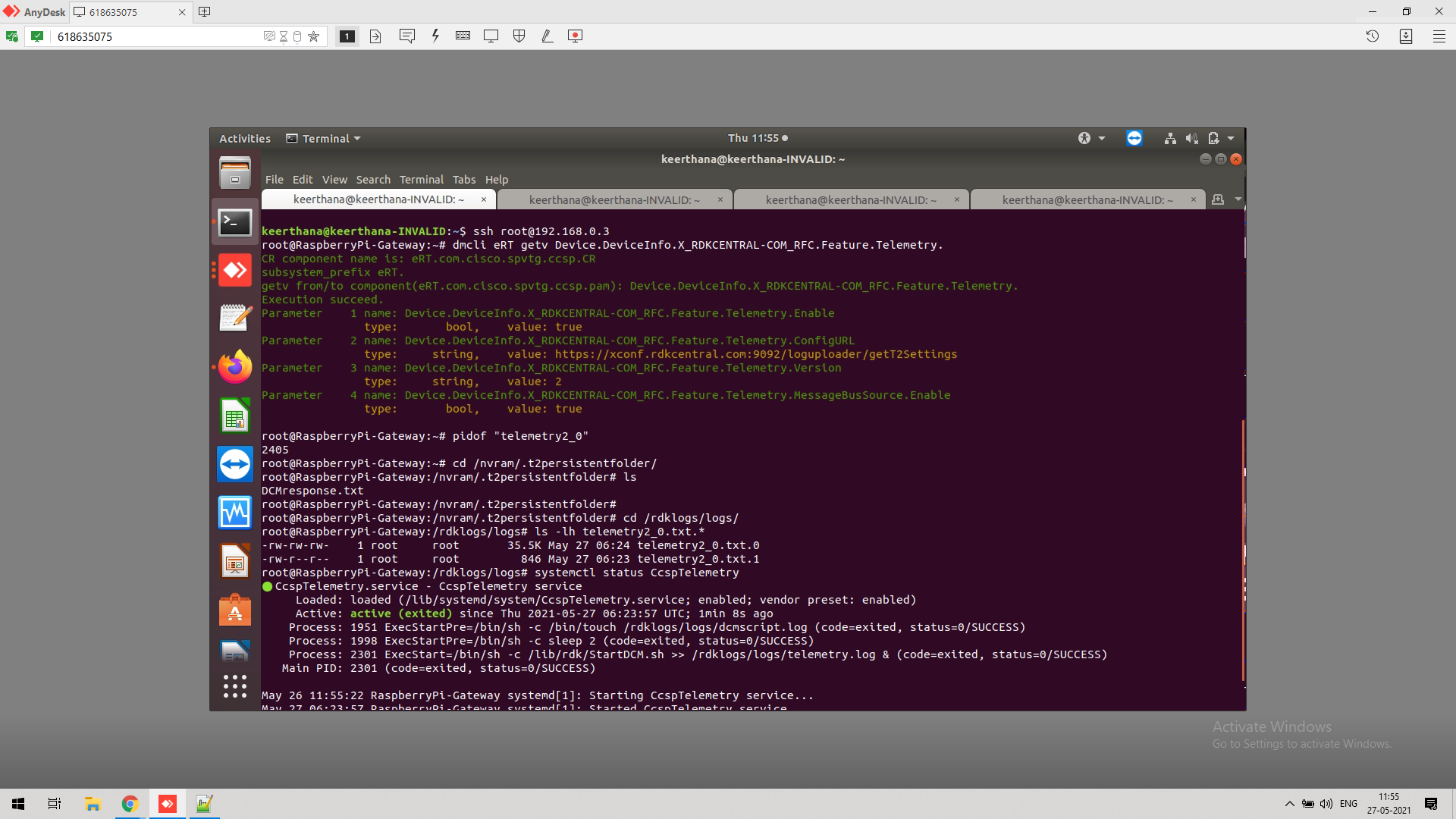

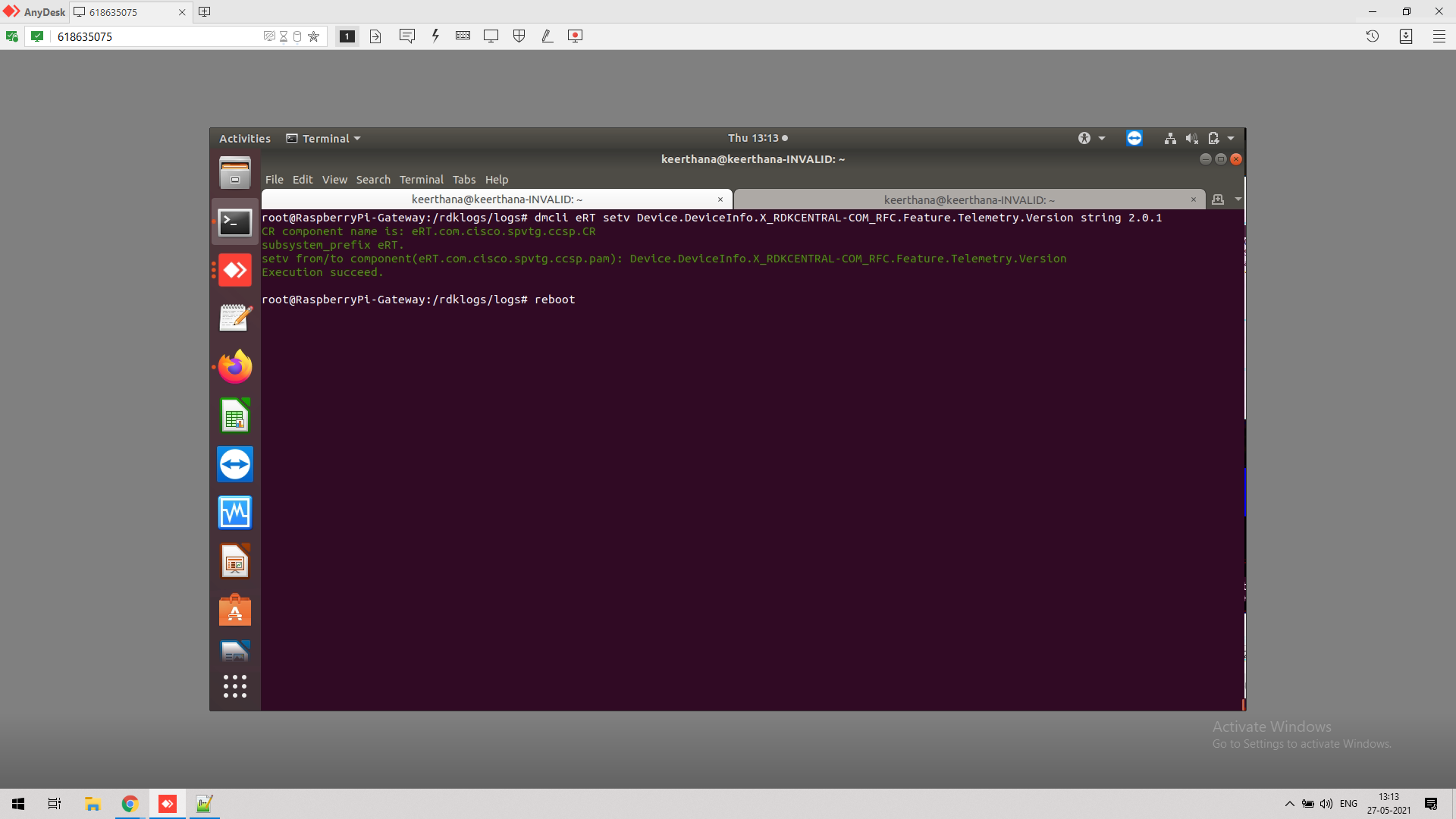

Below sample screenshots are enabling the T2 process of version 2 in target device(rpi),

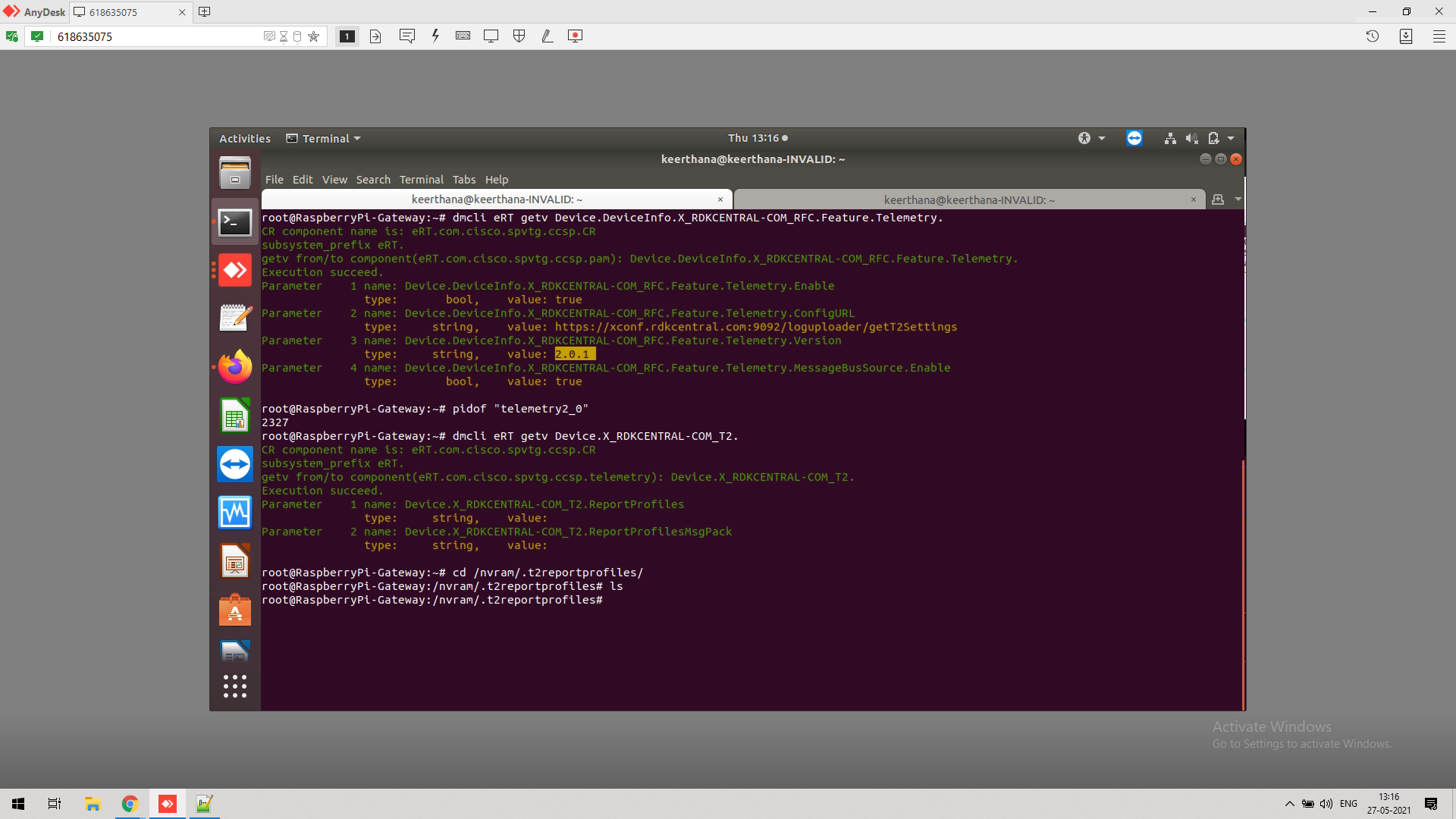

After reboot the device,

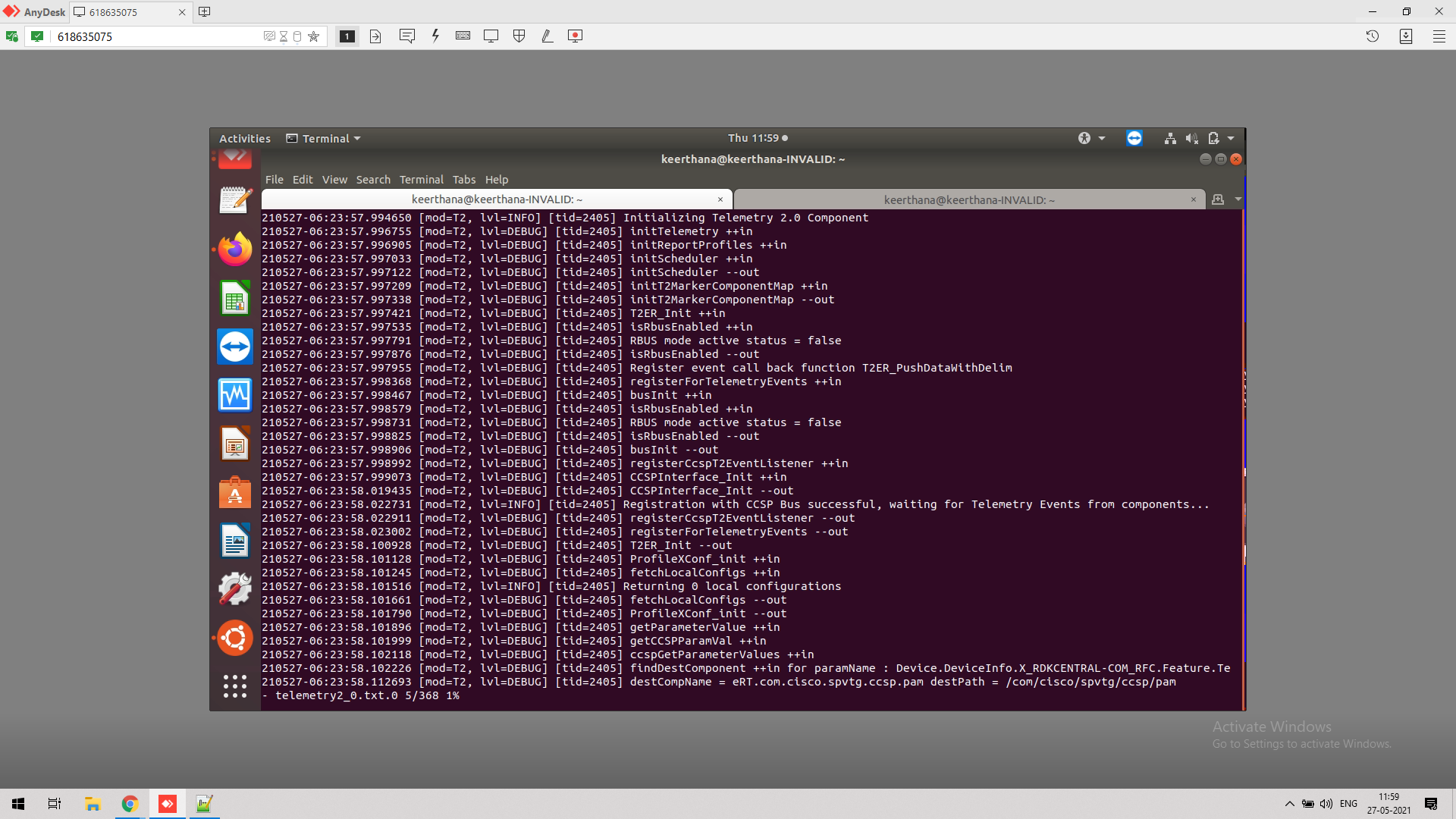

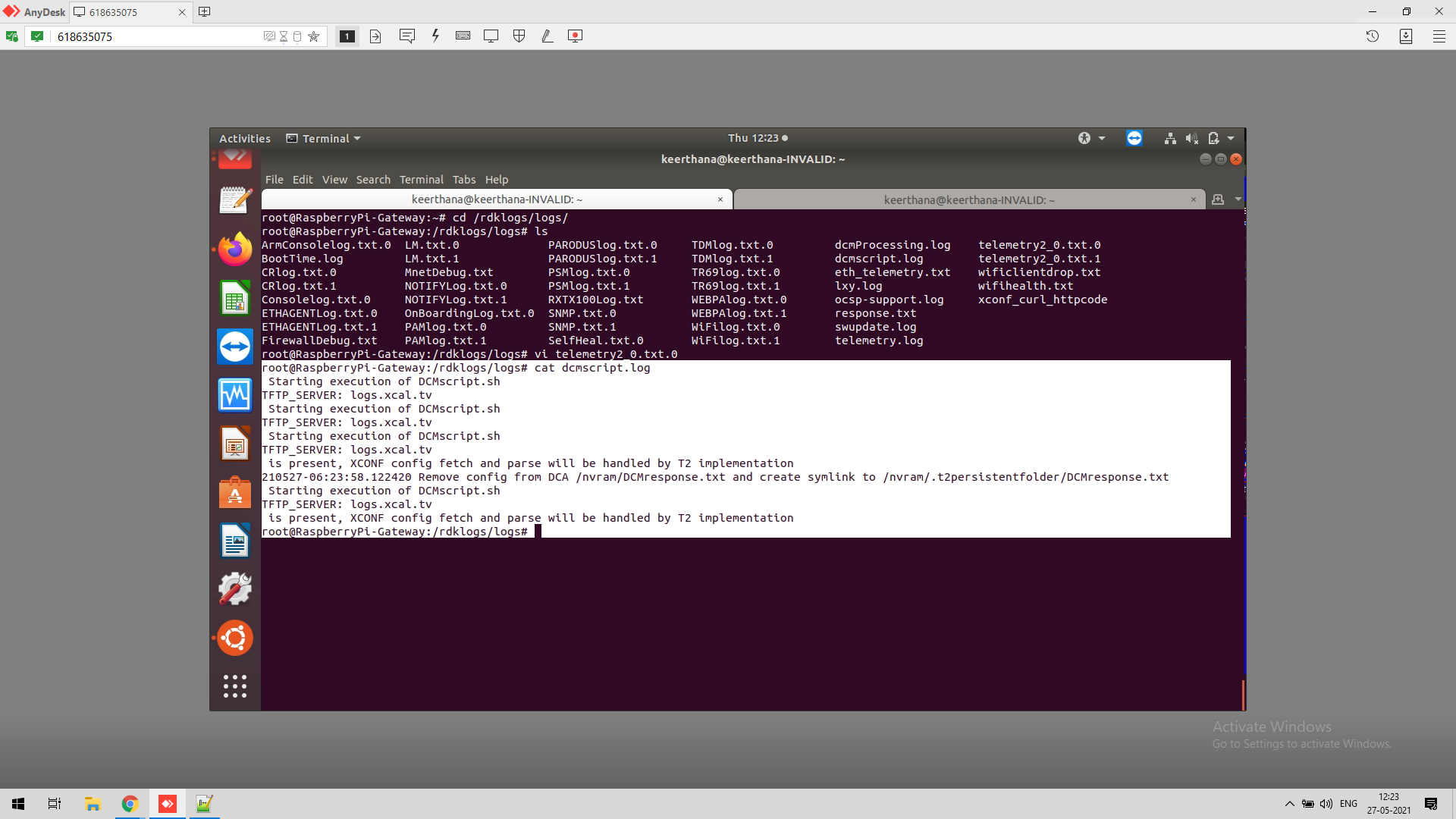

Sample Successful logs for Telemetry 2 process Initialization in /rdklogs/logs/telemetry2_0.txt.0 ,

Xconf server

Xconf server page : https://xconf.rdkcentral.com:19093/admin/ux
With default credentials ‘admin’ as both UserName/Password

Configuring Telemetry on Xconf server

Change Application to stb in top right corner of the window

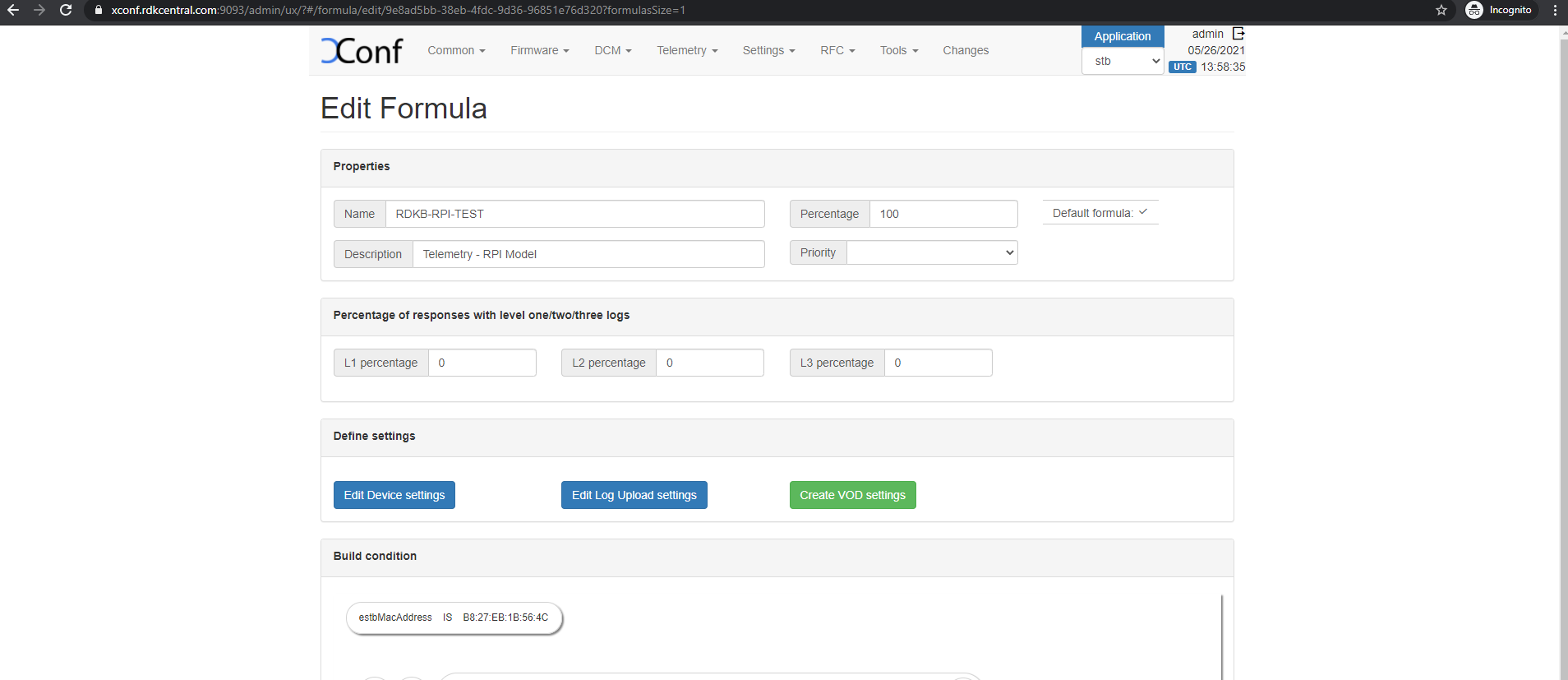

Create Formula

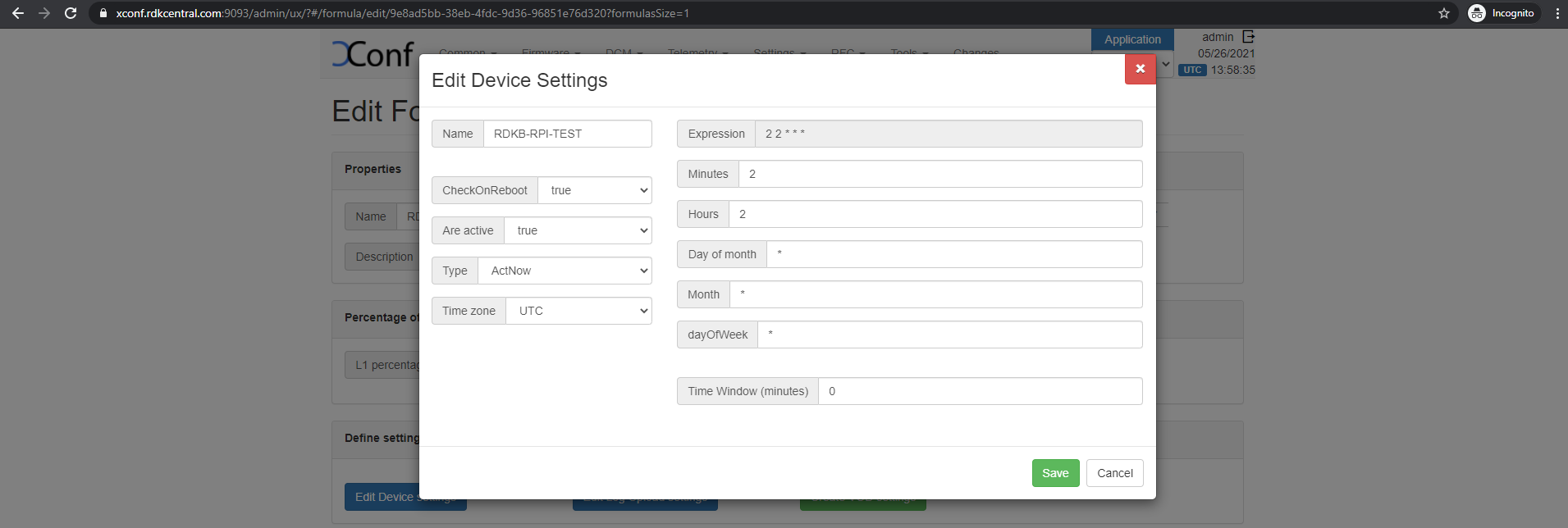

Create Device Settings

Xconf Server → DCM → Device Settings

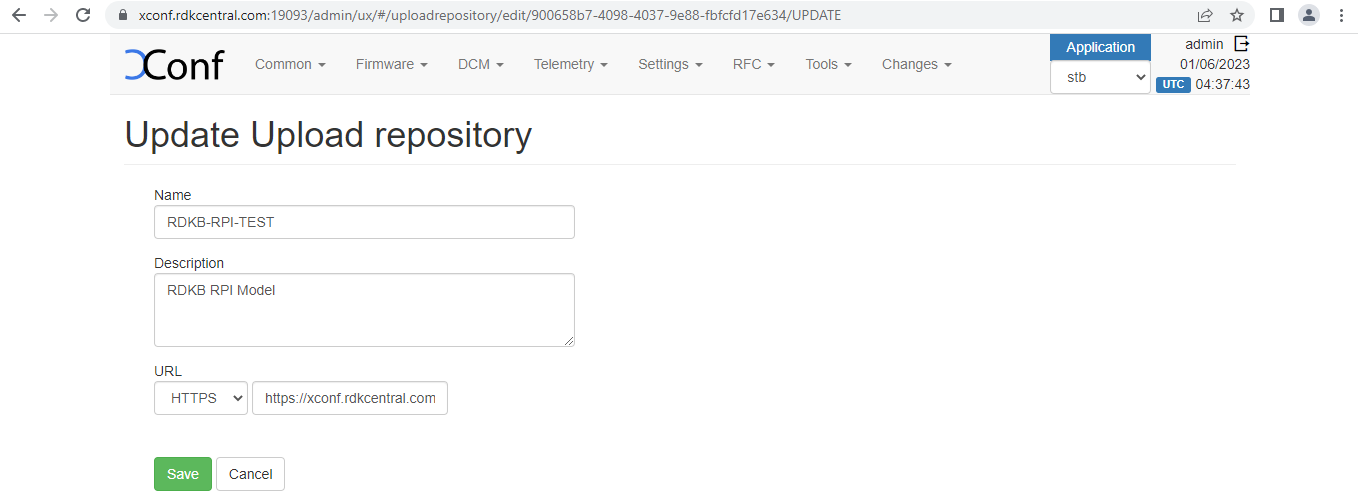

Create Upload Repository

Xconf Server → DCM → Upload Repository

Upload Repository : HTTPS Server

Repository URL: https://xconf.rdkcentral.com/xconf/telemetry_upload.php

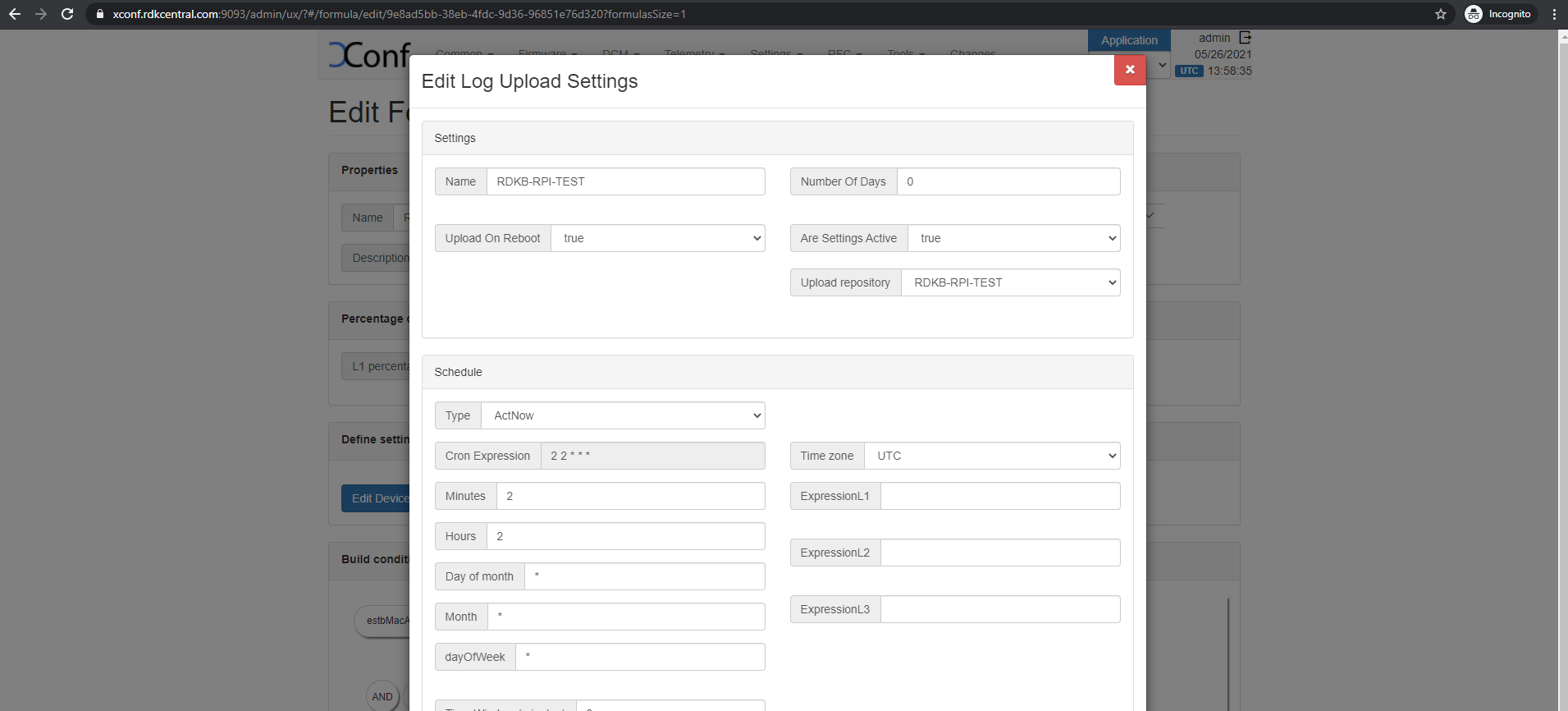

Create LogUpload Settings

Xconf Server → DCM → LogUpload Settings

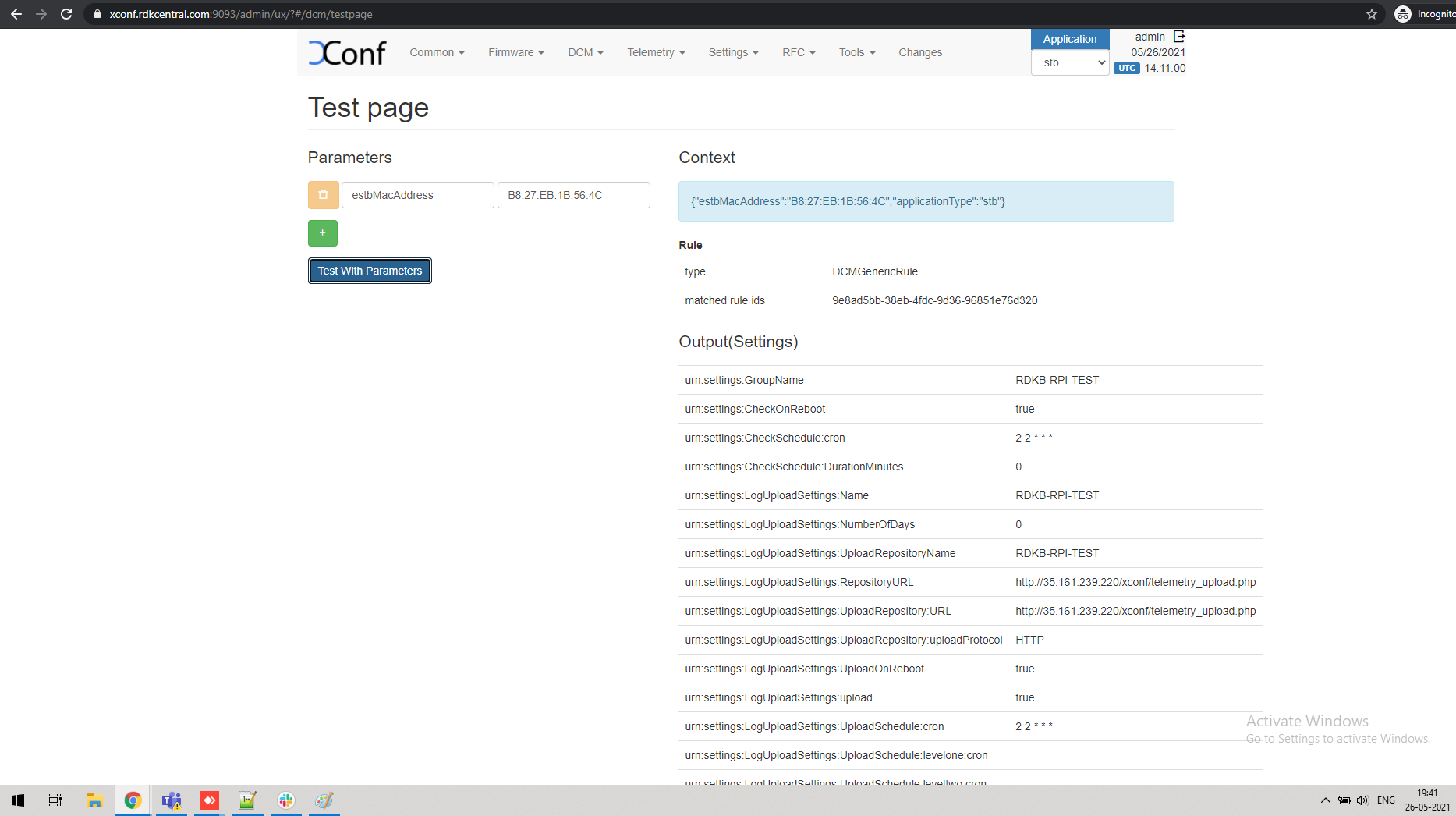

Test Page

Xconf Server → DCM → Test Page

In the Test Page, give estbMacAddress(B8:27:EB:1B:56:4C → Mac Address of RPI) and ensure the parameters that has been configured in the DCM.

Create Permanent Profiles

The markers are of 3 types .
1.Split based markers.
2. Count based markers
3. TR-181 based markers.

Marker Type	Sample configuration from xconf	Description with respect to sample configuration
Count based markers	{"header":"RF_ERROR_IPV4PingFailed","content":"Ping to IPv4 Gateway Address are failed","type":"SelfHeal.txt.0","pollingFrequency":"0"}	Expects the occurrence count of content “Ping to IPv4 Gateway Address are failed”
Split based markers	{"header":"bootuptime_ClientConnectComplete_split","content":"Client_Connect_complete:","type":"LM.txt.log","pollingFrequency":"0"}	Expects the value after content “Client_Connect_complete:”
TR-181 based markers	{“header” : “CMMAC_split”,”content” : “Device.DeviceInfo.X_COMCAST-COM_CM_MAC”,”type” : “<message_bus>”,”pollingFrequency”:”48″}	Markers whose type is configured as “<message_bus>”

In T2.0, the aim is to instrument possible number of split and count based markers from component side. These are termed as event markers. Can be classified as one more type under the classification of markers.
Once a marker is instrumented from component side, its configuration on xconf will be changed from the configured file name to “<event>” in ‘type:’ section.

Example:

{"header":"bootuptime_ClientConnectComplete_split","content":"ccsp-lm-lite","type":<event>","pollingFrequency":"0"}

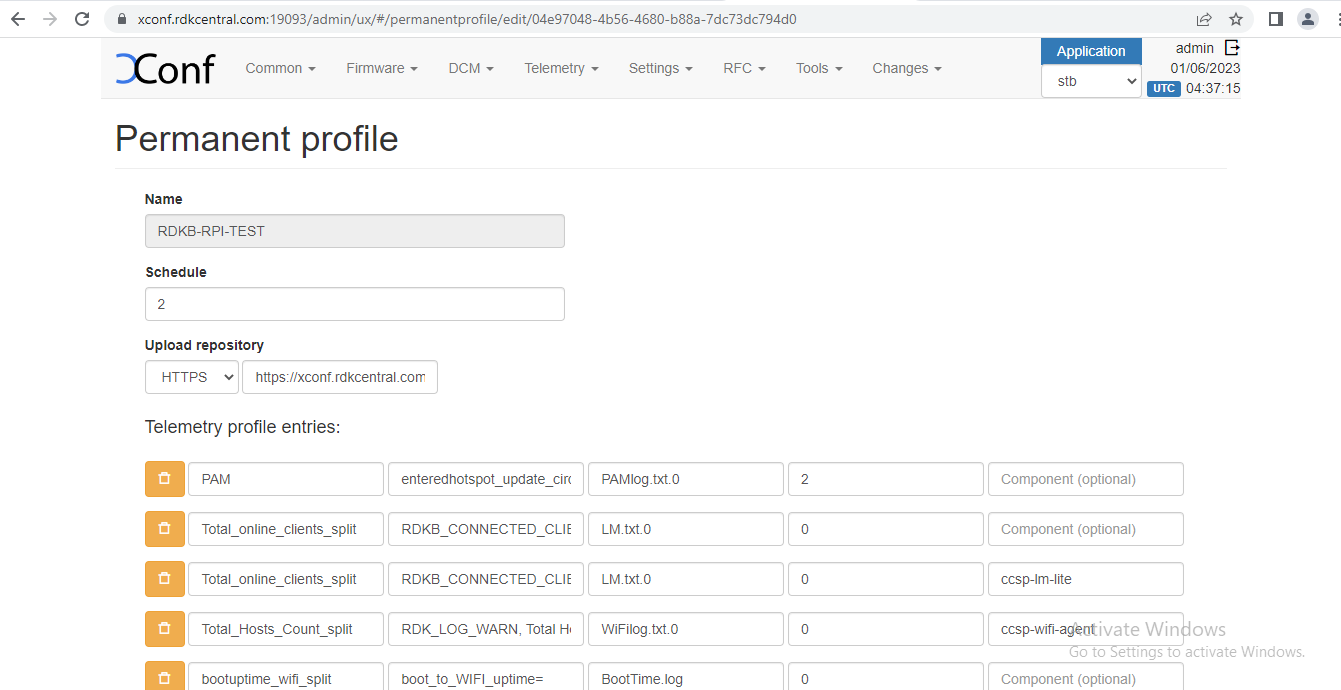

Xconf Server → Telemetry → Permanent Profiles

In the Telemetry Permanent Profile page, there will be a 5th column that allows a component name to be entered. The component name is optional and may be present for only some of the entries in the Telemetry profile.

2. Once you save the permanent profile, you will get a message overlay ‘Profile added to the pending changes’. Then go to Changes -> select the profile you create -> Click on “Approve selected changes”.
Then the permanent profile will be listed under Telemetry – > Permanent profiles

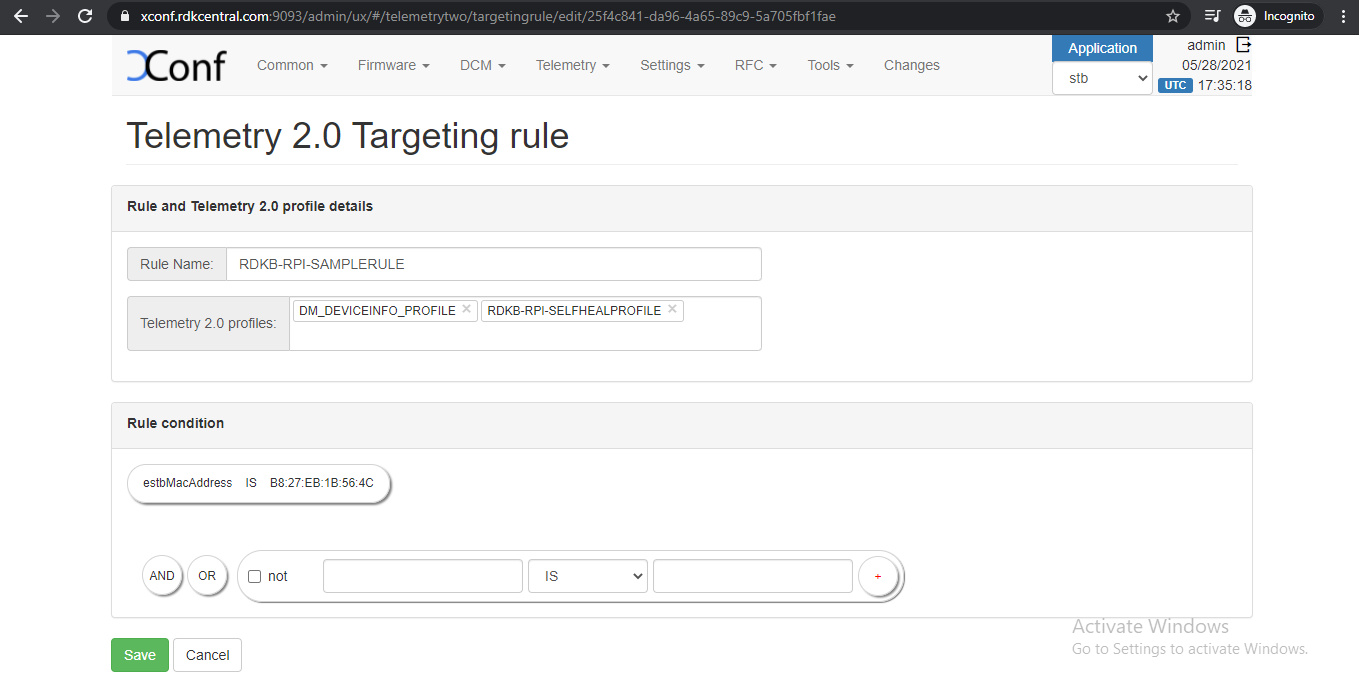

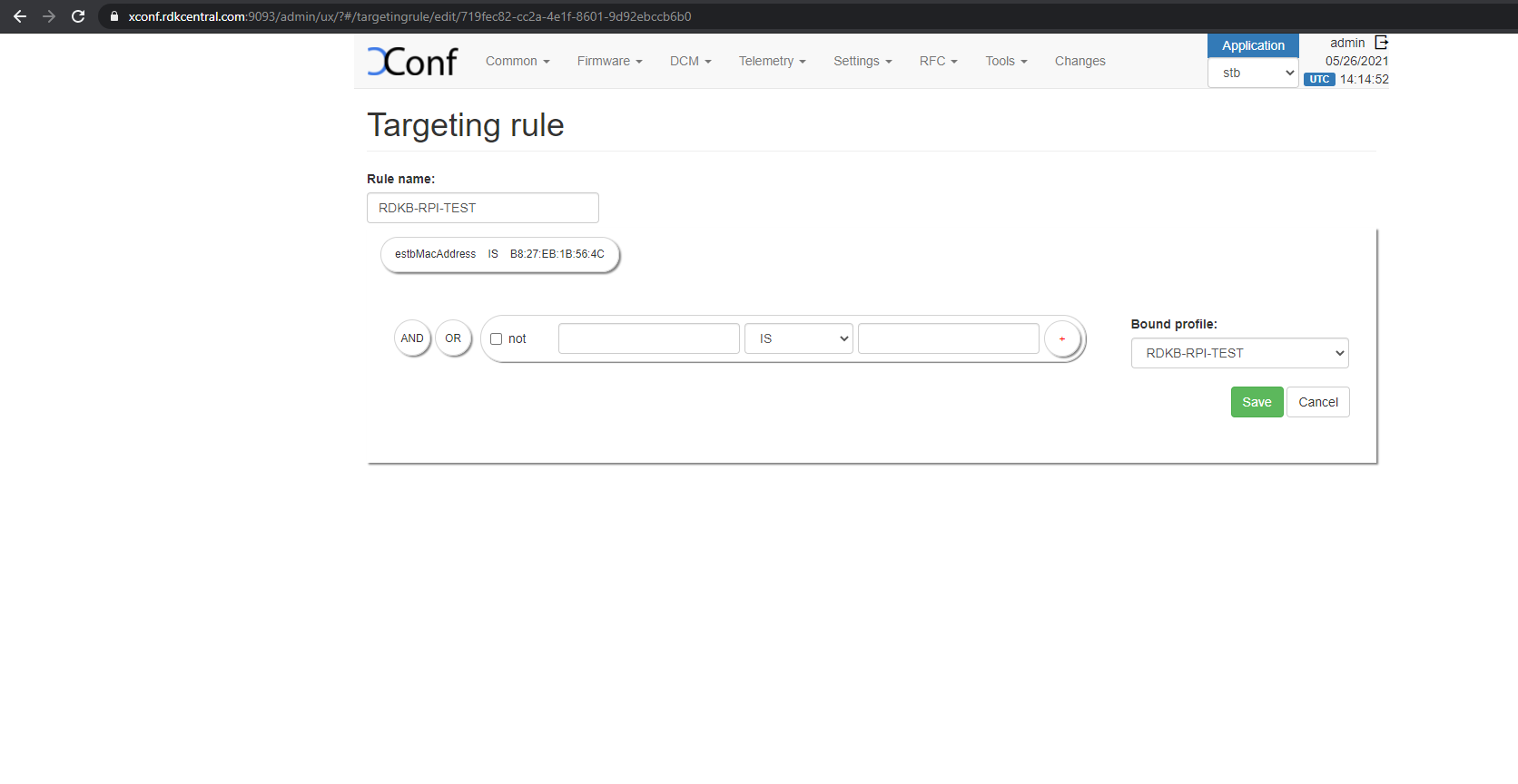

Create Targeting Rules

Create targeting rule via Telemetry -> Targeting rules. Targeting rules is to map the profiles with rules.

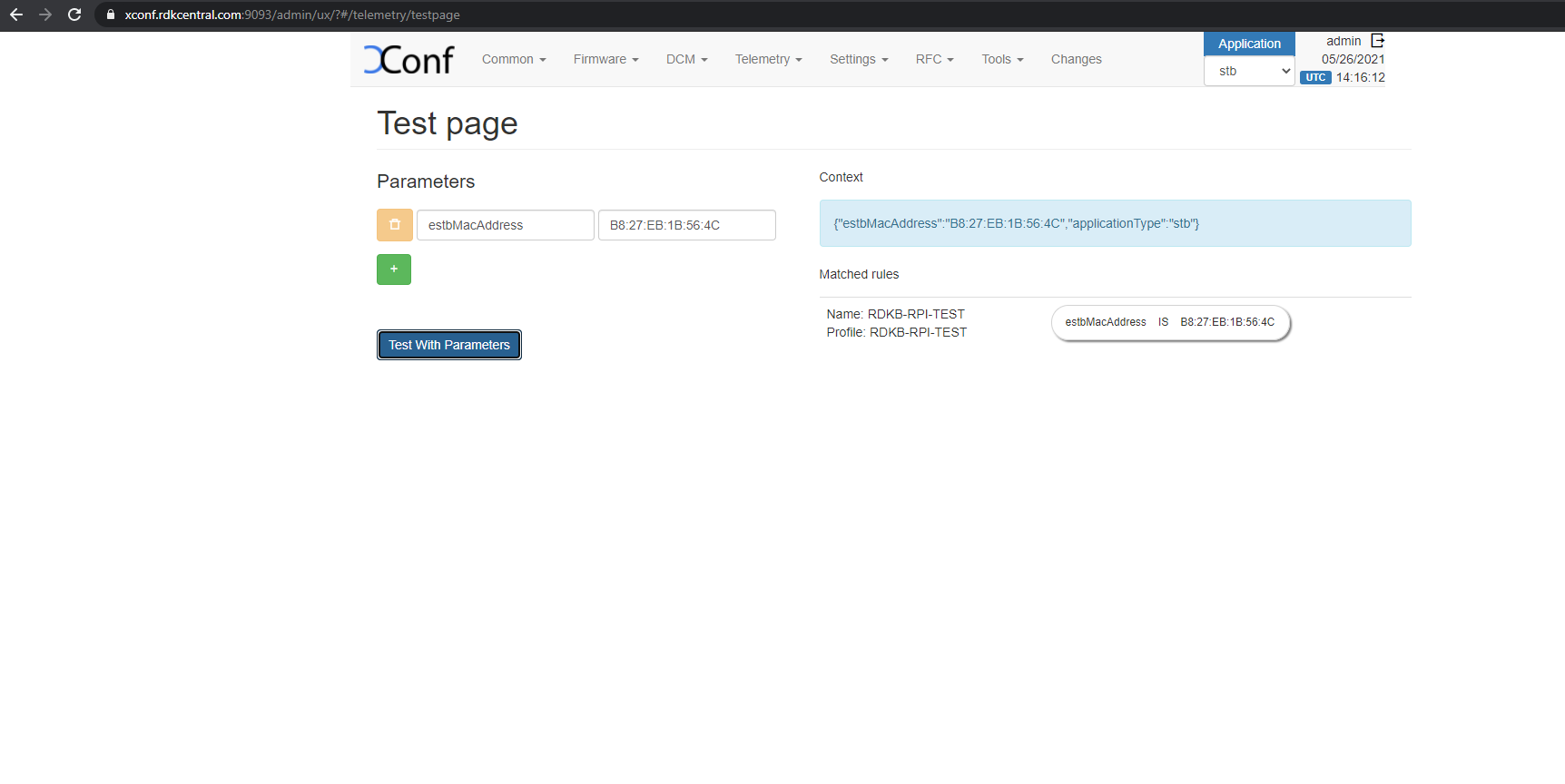

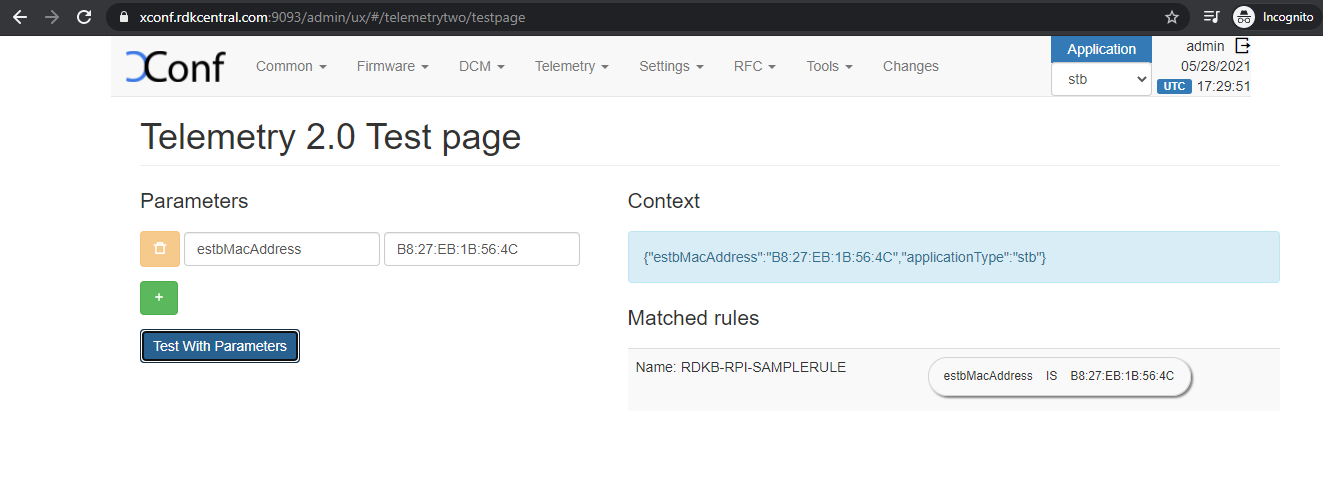

Test Page

Xconf Server → Telemetry → Test page

After creating the permanent profile and targeting rules, go to Telemetry->Test page and give a parameter that will match the one of the rule that you have created. Then matched rule will be displayed like below.

In the Test Page, give estbMacAddress(B8:27:EB:1B:56:4C→ Mac Address of RPI)

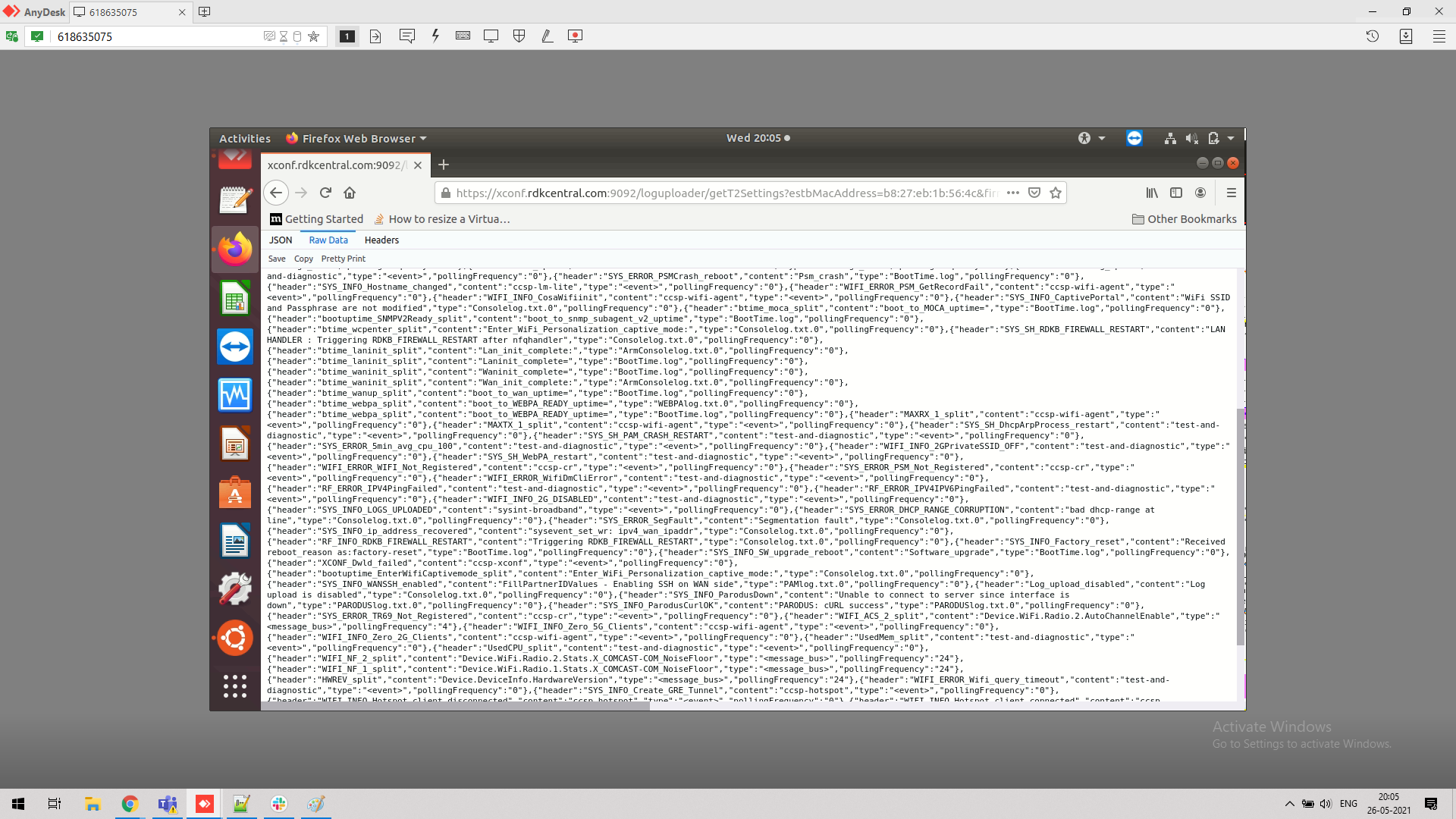

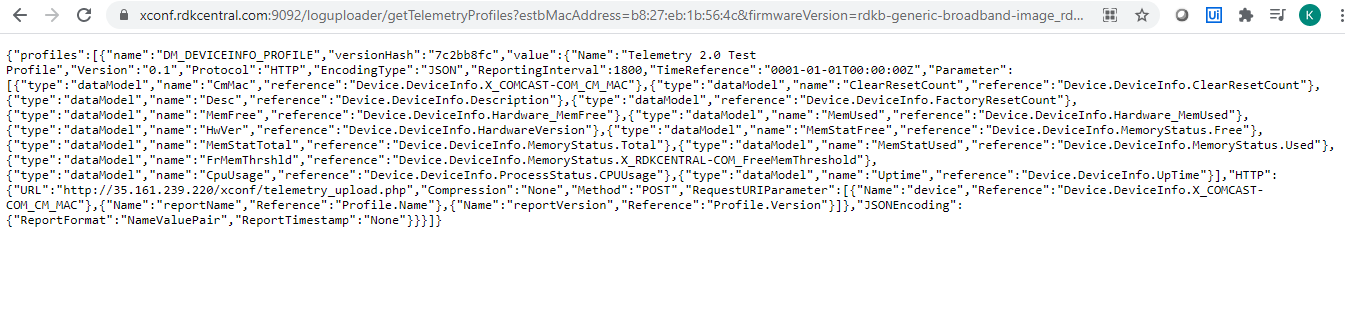

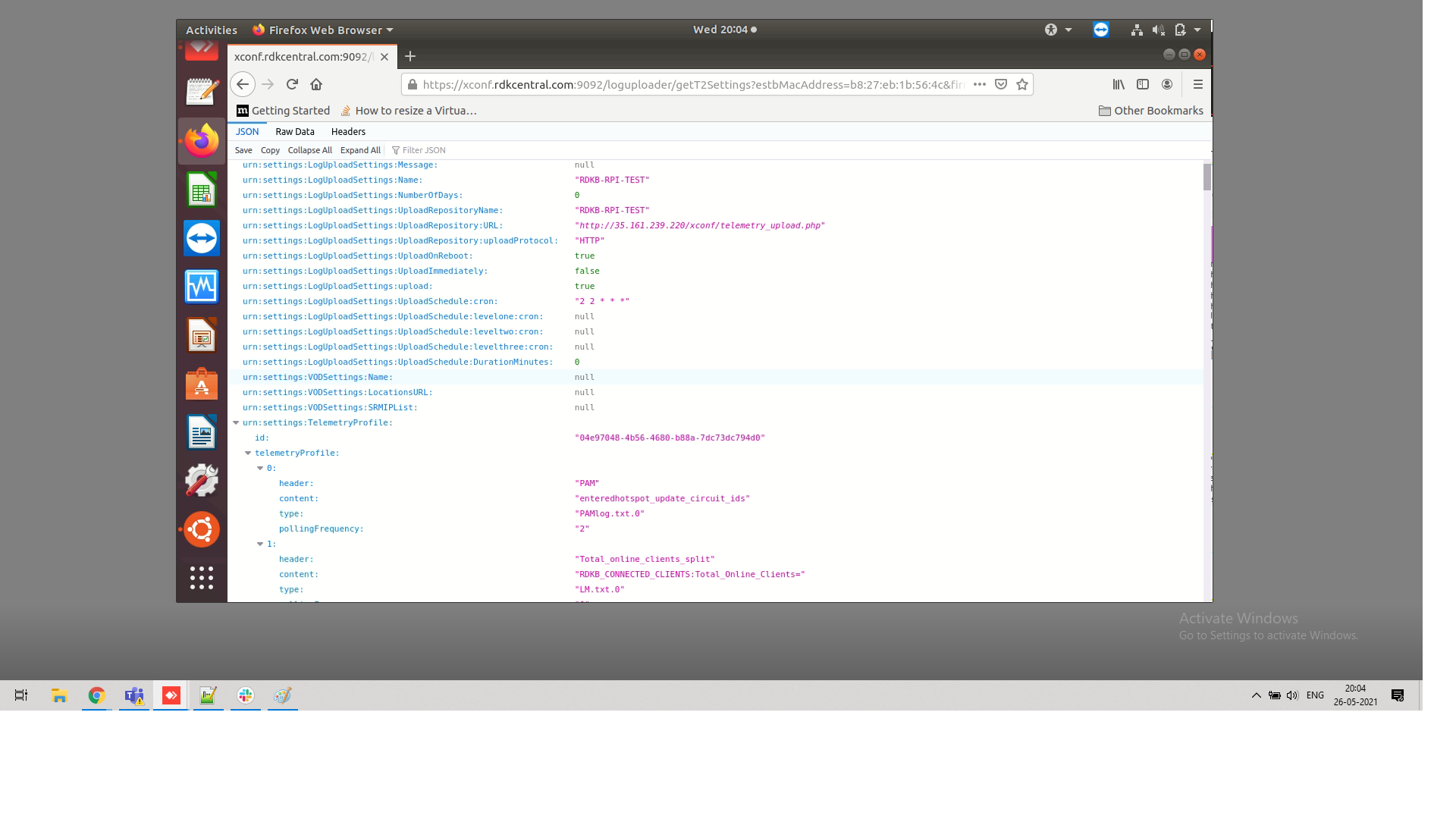

JSON Response

https://xconf.rdkcentral.com:19092/loguploader/getT2Settings?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_rdk-next_20210329055811&model=&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2

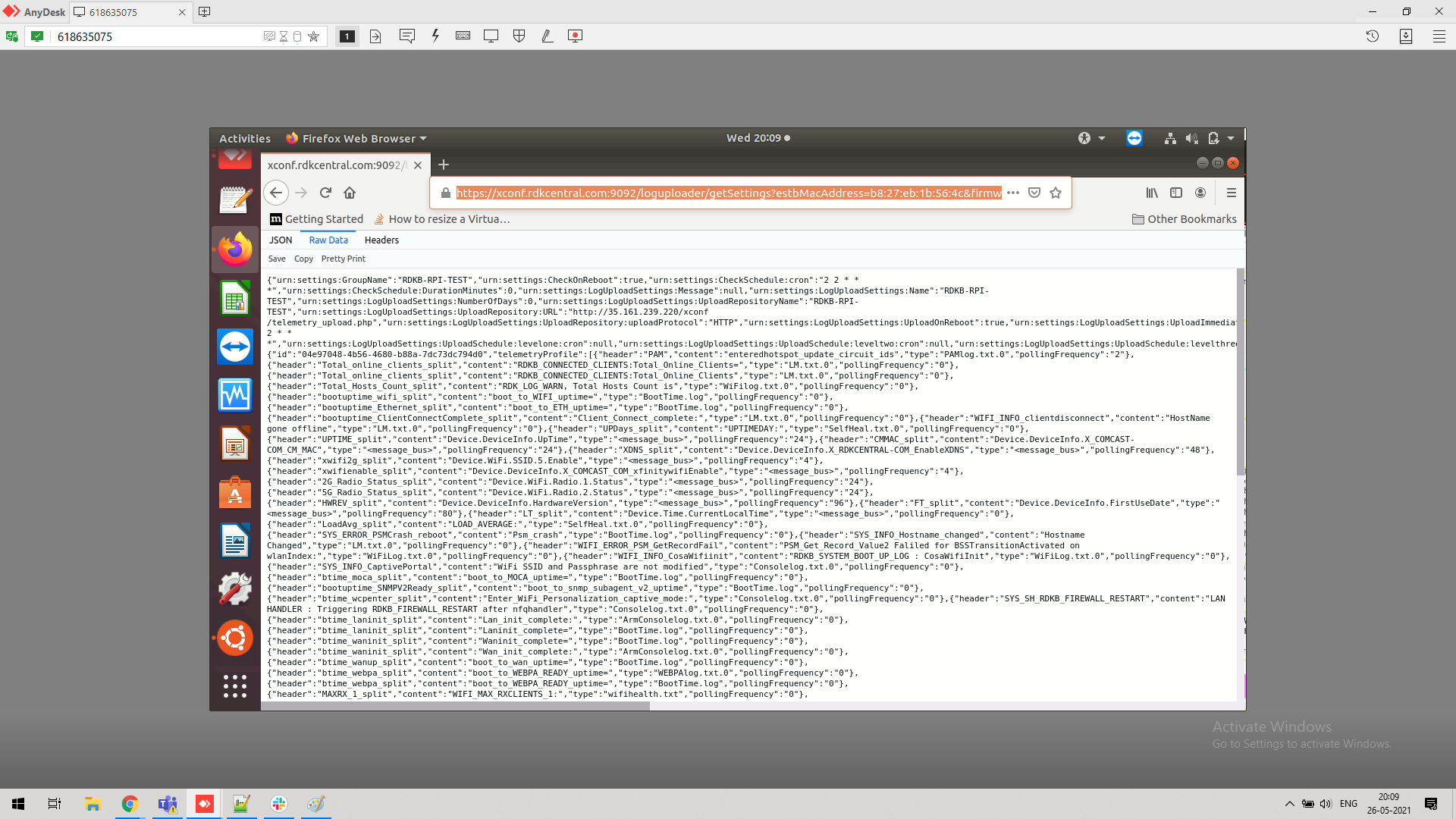

RAW data Response

RAW Data Response of T1

https://xconf.rdkcentral.com:9092/loguploader/getSettings?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_rdk-next_20210329055811&model=&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2

RPI(target) devices Response’s

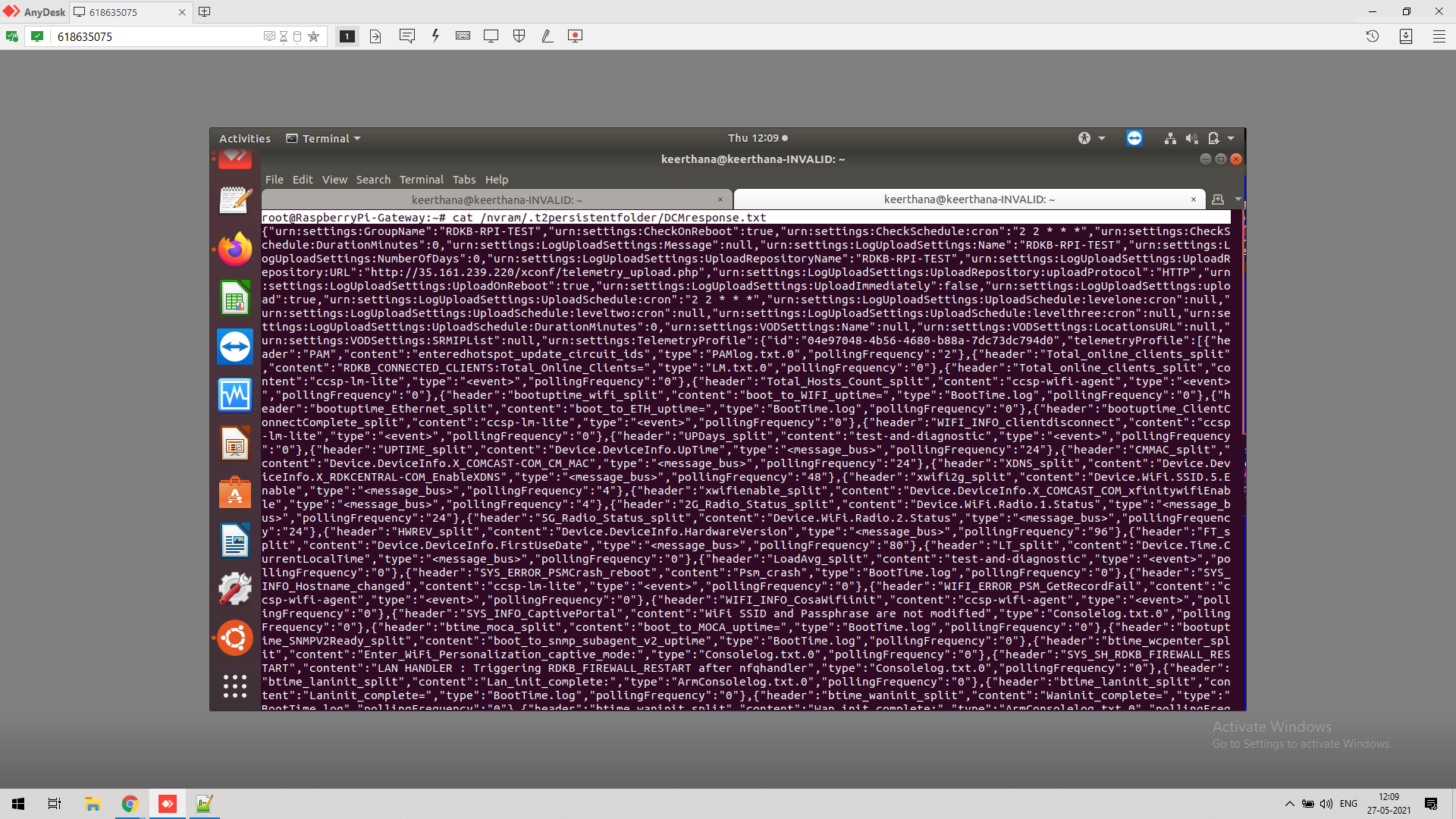

DCMresponse Text Data

DCMresponse.txt Expand source

root@RaspberryPi-Gateway:~# cat /tmp/DCMresponse.txt
"urn:settings:GroupName":"RDKB-RPI-TEST"
"urn:settings:CheckOnReboot":true
"urn:settings:CheckSchedule:cron":"2 2 * * *"
"urn:settings:CheckSchedule:DurationMinutes":0
"urn:settings:LogUploadSettings:Message":null
"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST"
"urn:settings:LogUploadSettings:NumberOfDays":0
"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST"
"urn:settings:LogUploadSettings:UploadRepository:URL":"https://xconf.rdkcentral.com/xconf/telemetry_upload.php"
"urn:settings:LogUploadSettings:UploadRepository:uploadProtocol":"HTTP"
"urn:settings:LogUploadSettings:UploadOnReboot":true
"urn:settings:LogUploadSettings:UploadImmediately":false
"urn:settings:LogUploadSettings:upload":true
"urn:settings:LogUploadSettings:UploadSchedule:cron":"2 2 * * *"
"urn:settings:LogUploadSettings:UploadSchedule:levelone:cron":null
"urn:settings:LogUploadSettings:UploadSchedule:leveltwo:cron":null
"urn:settings:LogUploadSettings:UploadSchedule:levelthree:cron":null
"urn:settings:LogUploadSettings:UploadSchedule:DurationMinutes":0
"urn:settings:VODSettings:Name":null
"urn:settings:VODSettings:LocationsURL":null
"urn:settings:VODSettings:SRMIPList":null
"urn:settings:TelemetryProfile":{"id":"04e97048-4b56-4680-b88a-7dc73dc794d0","telemetryProfile":[{"header":"PAM","content":"enteredhotspot_update_circuit_ids","type":"PAMlog.txt.0","pollingFrequency":"2"},{"header":"Total_online_clients_split","content":"RDKB_CONNECTED_CLIENTS:Total_Online_Clients=","type":"LM.txt.0","pollingFrequency":"0"},{"header":"Total_online_clients_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"Total_Hosts_Count_split","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"bootuptime_wifi_split","content":"boot_to_WIFI_uptime=","type":"BootTime.log","pollingFrequency":"0"},{"header":"bootuptime_Ethernet_split","content":"boot_to_ETH_uptime=","type":"BootTime.log","pollingFrequency":"0"},{"header":"bootuptime_ClientConnectComplete_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_clientdisconnect","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"UPDays_split","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"UPTIME_split","content":"Device.DeviceInfo.UpTime","type":"<message_bus>","pollingFrequency":"24"},{"header":"CMMAC_split","content":"Device.DeviceInfo.X_COMCAST-COM_CM_MAC","type":"<message_bus>","pollingFrequency":"24"},{"header":"XDNS_split","content":"Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS","type":"<message_bus>","pollingFrequency":"48"},{"header":"xwifi2g_split","content":"Device.WiFi.SSID.5.Enable","type":"<message_bus>","pollingFrequency":"4"},{"header":"xwifienable_split","content":"Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable","type":"<message_bus>","pollingFrequency":"4"},{"header":"2G_Radio_Status_split","content":"Device.WiFi.Radio.1.Status","type":"<message_bus>","pollingFrequency":"24"},{"header":"5G_Radio_Status_split","content":"Device.WiFi.Radio.2.Status","type":"<message_bus>","pollingFrequency":"24"},{"header":"HWREV_split","content":"Device.DeviceInfo.HardwareVersion","type":"<message_bus>","pollingFrequency":"96"},{"header":"FT_split","content":"Device.DeviceInfo.FirstUseDate","type":"<message_bus>","pollingFrequency":"80"},{"header":"LT_split","content":"Device.Time.CurrentLocalTime","type":"<message_bus>","pollingFrequency":"0"},{"header":"LoadAvg_split","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"SYS_ERROR_PSMCrash_reboot","content":"Psm_crash","type":"BootTime.log","pollingFrequency":"0"},{"header":"SYS_INFO_Hostname_changed","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_ERROR_PSM_GetRecordFail","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_CosaWifiinit","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"SYS_INFO_CaptivePortal","content":"WiFi SSID and Passphrase are not modified","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"btime_moca_split","content":"boot_to_MOCA_uptime=","type":"BootTime.log","pollingFrequency":"0"},{"header":"bootuptime_SNMPV2Ready_split","content":"boot_to_snmp_subagent_v2_uptime","type":"BootTime.log","pollingFrequency":"0"},{"header":"btime_wcpenter_split","content":"Enter_WiFi_Personalization_captive_mode:","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_SH_RDKB_FIREWALL_RESTART","content":"LAN HANDLER : Triggering RDKB_FIREWALL_RESTART after nfqhandler","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"btime_laninit_split","content":"Lan_init_complete:","type":"ArmConsolelog.txt.0","pollingFrequency":"0"},{"header":"btime_laninit_split","content":"Laninit_complete=","type":"BootTime.log","pollingFrequency":"0"},{"header":"btime_waninit_split","content":"Waninit_complete=","type":"BootTime.log","pollingFrequency":"0"},{"header":"btime_waninit_split","content":"Wan_init_complete:","type":"ArmConsolelog.txt.0","pollingFrequency":"0"},{"header":"btime_wanup_split","content":"boot_to_wan_uptime=","type":"BootTime.log","pollingFrequency":"0"},{"header":"btime_webpa_split","content":"boot_to_WEBPA_READY_uptime=","type":"WEBPAlog.txt.0","pollingFrequency":"0"},{"header":"btime_webpa_split","content":"boot_to_WEBPA_READY_uptime=","type":"BootTime.log","pollingFrequency":"0"},{"header":"MAXRX_1_split","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"MAXTX_1_split","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"SYS_SH_DhcpArpProcess_restart","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"SYS_SH_PAM_CRASH_RESTART","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"SYS_ERROR_5min_avg_cpu_100","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_2GPrivateSSID_OFF","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"SYS_SH_WebPA_restart","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_ERROR_WIFI_Not_Registered","content":"ccsp-cr","type":"<event>","pollingFrequency":"0"},{"header":"SYS_ERROR_PSM_Not_Registered","content":"ccsp-cr","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_ERROR_WifiDmCliError","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"RF_ERROR_IPV4PingFailed","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"RF_ERROR_IPV4IPV6PingFailed","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_2G_DISABLED","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"SYS_INFO_LOGS_UPLOADED","content":"sysint-broadband","type":"<event>","pollingFrequency":"0"},{"header":"SYS_ERROR_DHCP_RANGE_CORRUPTION","content":"bad dhcp-range at line","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_ERROR_SegFault","content":"Segmentation fault","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_ip_address_recovered","content":"sysevent_set_wr: ipv4_wan_ipaddr","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"RF_INFO_RDKB_FIREWALL_RESTART","content":"Triggering RDKB_FIREWALL_RESTART","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_Factory_reset","content":"Received reboot_reason as:factory-reset","type":"BootTime.log","pollingFrequency":"0"},{"header":"SYS_INFO_SW_upgrade_reboot","content":"Software_upgrade","type":"BootTime.log","pollingFrequency":"0"},{"header":"XCONF_Dwld_failed","content":"ccsp-xconf","type":"<event>","pollingFrequency":"0"},{"header":"bootuptime_EnterWifiCaptivemode_split","content":"Enter_WiFi_Personalization_captive_mode:","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_WANSSH_enabled","content":"FillPartnerIDValues - Enabling SSH on WAN side","type":"PAMlog.txt.0","pollingFrequency":"0"},{"header":"Log_upload_disabled","content":"Log upload is disabled","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_ParodusDown","content":"Unable to connect to server since interface is down","type":"PARODUSlog.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_ParodusCurlOK","content":"PARODUS: cURL success","type":"PARODUSlog.txt.0","pollingFrequency":"0"},{"header":"SYS_ERROR_TR69_Not_Registered","content":"ccsp-cr","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_ACS_2_split","content":"Device.WiFi.Radio.2.AutoChannelEnable","type":"<message_bus>","pollingFrequency":"4"},{"header":"WIFI_INFO_Zero_5G_Clients","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_Zero_2G_Clients","content":"ccsp-wifi-agent","type":"<event>","pollingFrequency":"0"},{"header":"UsedMem_split","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"UsedCPU_split","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_NF_2_split","content":"Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor","type":"<message_bus>","pollingFrequency":"24"},{"header":"WIFI_NF_1_split","content":"Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor","type":"<message_bus>","pollingFrequency":"24"},{"header":"HWREV_split","content":"Device.DeviceInfo.HardwareVersion","type":"<message_bus>","pollingFrequency":"24"},{"header":"WIFI_ERROR_Wifi_query_timeout","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"},{"header":"SYS_INFO_Create_GRE_Tunnel","content":"ccsp-hotspot","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_Hotspot_client_disconnected","content":"ccsp-hotspot","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_Hotspot_client_connected","content":"ccsp-hotspot","type":"<event>","pollingFrequency":"0"},{"header":"SYS_INFO_Hotspot_MaxClients","content":"ccsp-hotspot","type":"<event>","pollingFrequency":"0"},{"header":"WIFI_INFO_ClientTransitionToXfininityWifi","content":"ccsp-hotspot","type":"<event>","pollingFrequency":"0"},{"header":"Total_Ethernet_Clients_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"Total_online_clients_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"Total_devices_connected_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"Total_offline_clients_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"Total_wifi_clients_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"Total_moca_clients_split","content":"ccsp-lm-lite","type":"<event>","pollingFrequency":"0"},{"header":"SYS_ERROR_CPU100","content":"test-and-diagnostic","type":"<event>","pollingFrequency":"0"}],"schedule":"2","expires":0,"telemetryProfile:name":"RDKB-RPI-TEST","uploadRepository:URL":"http://xconf.rdkcentral.com/xconf/telemetry_upload.php","uploadRepository:uploadProtocol":"HTTP"}
root@RaspberryPi-Gateway:~#

RPI device Logs

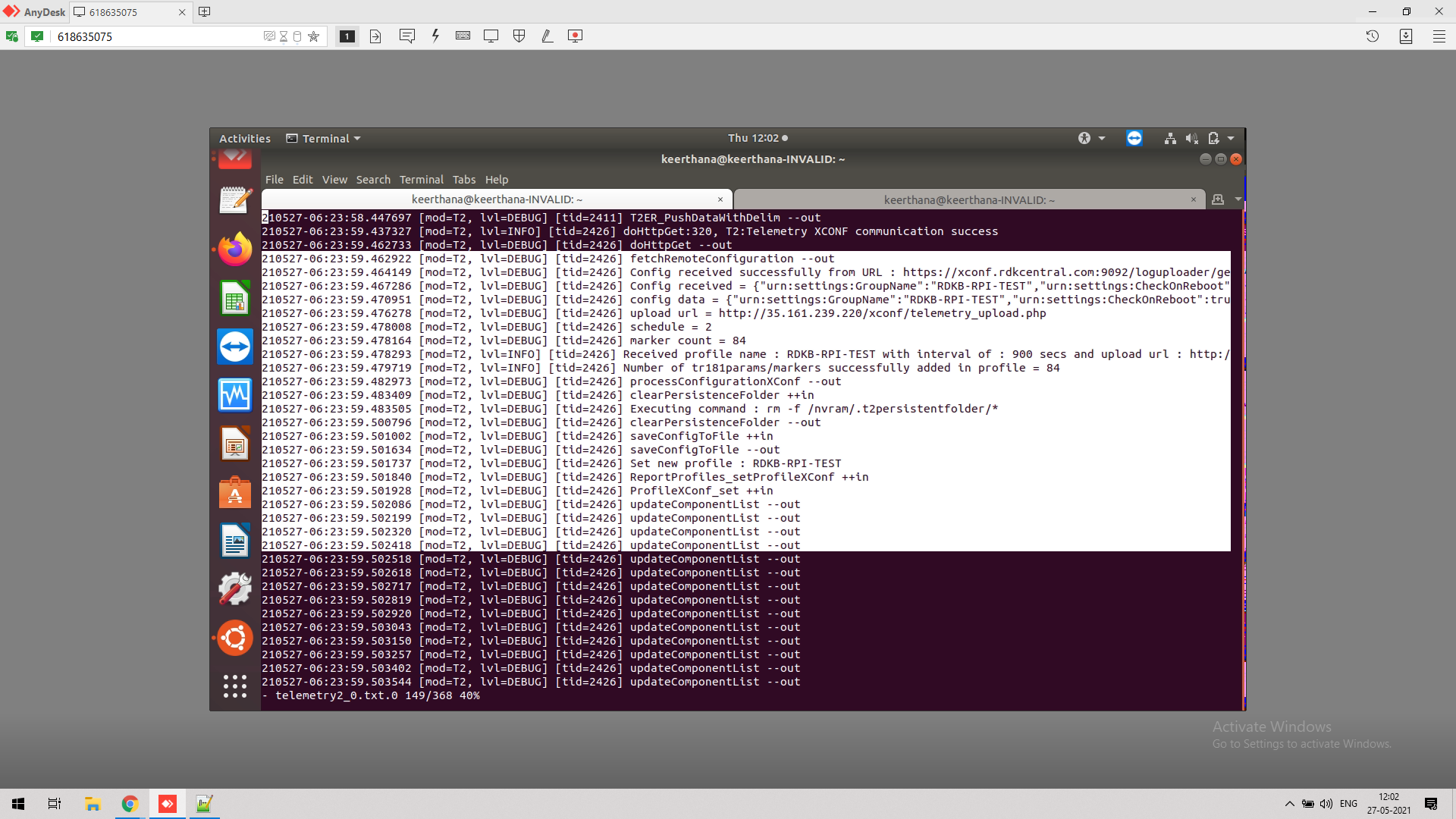

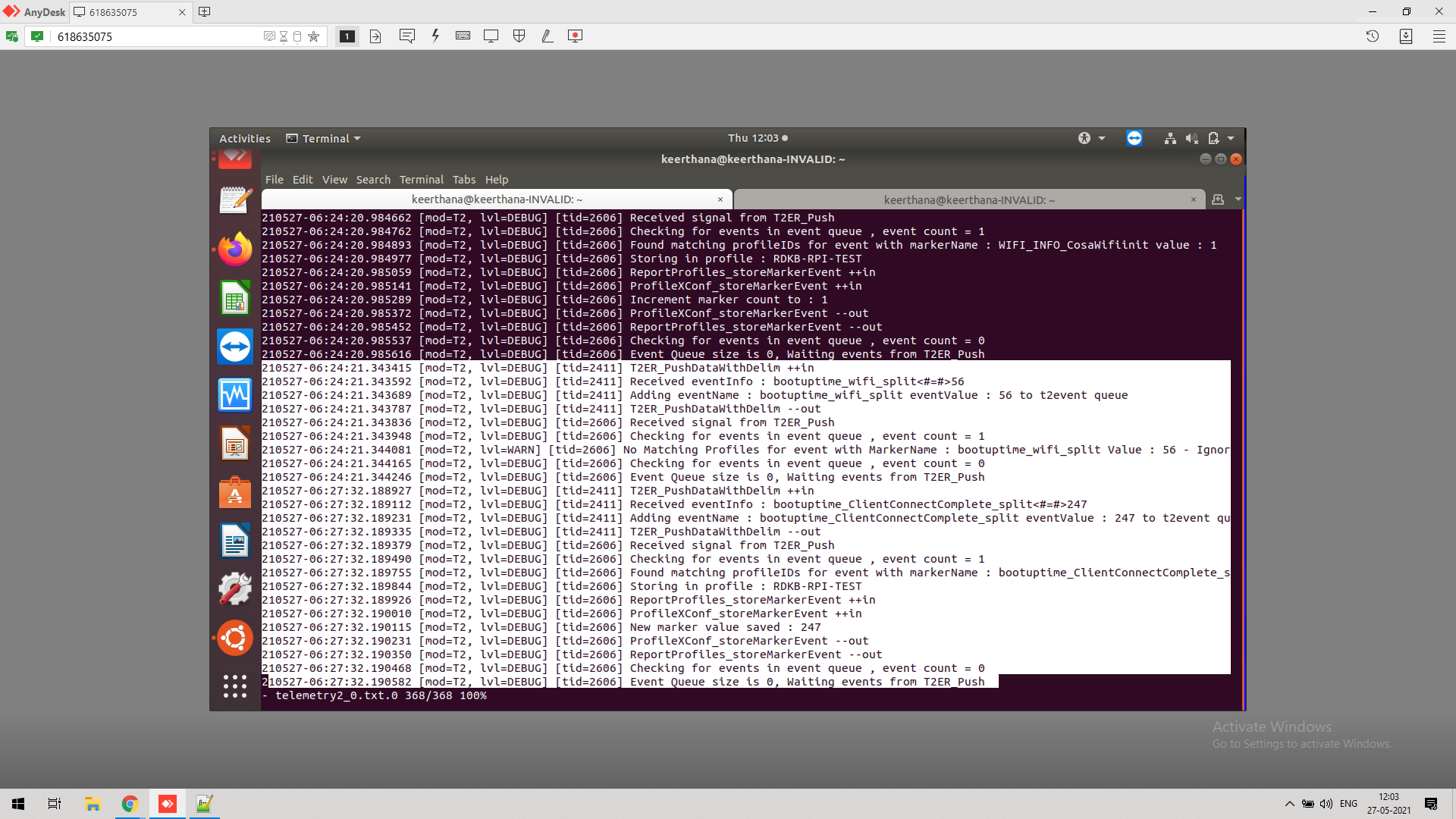

Successful communication logs between device and xconf server in /rdklogs/logs/telemetry2_0.txt.0,

In T2, Receiving events from RDKB components and comparing those events in Uploaded Makers list in xconf in /rdklogs/logs/telemetry2_0.txt.0,

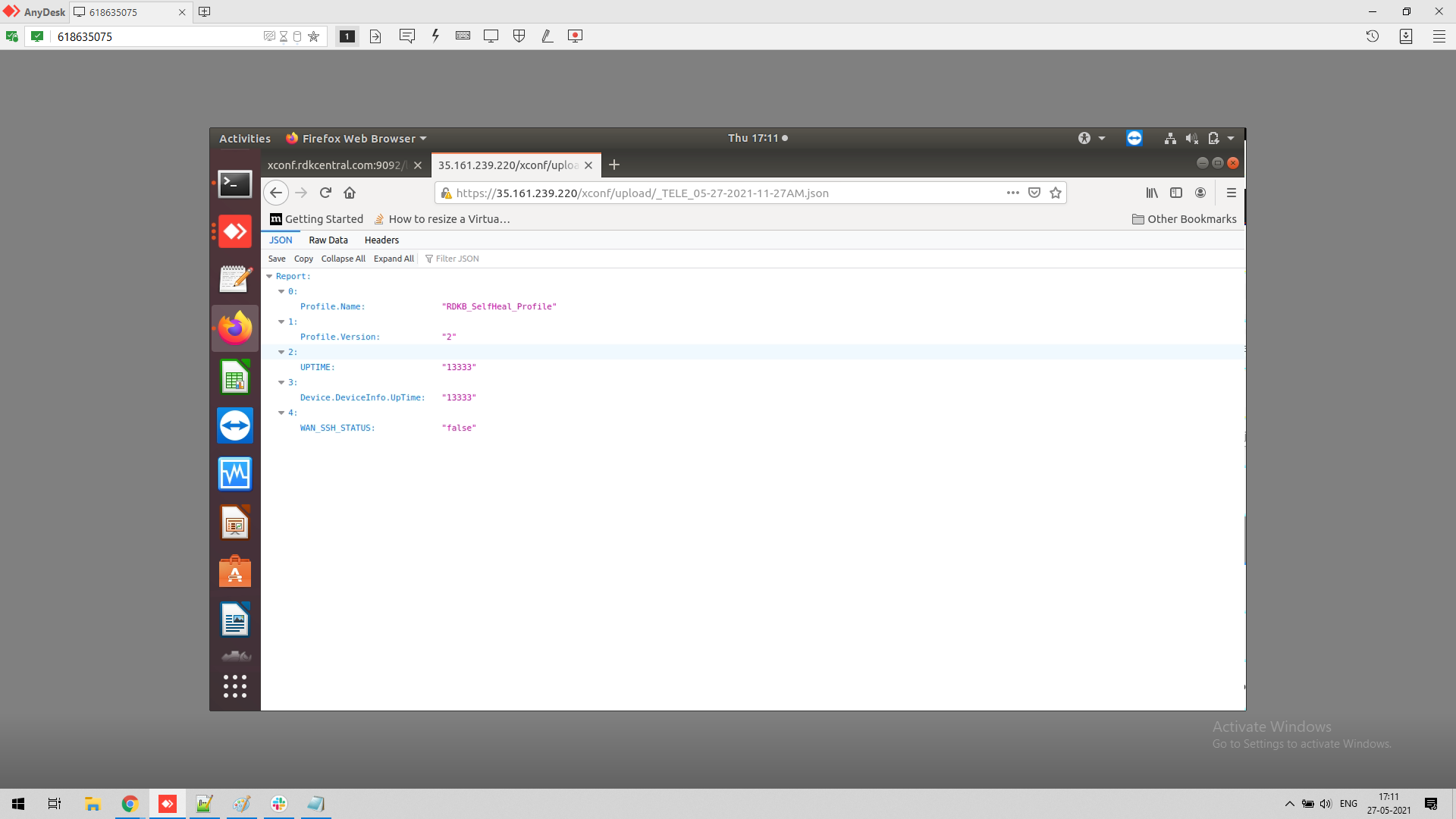

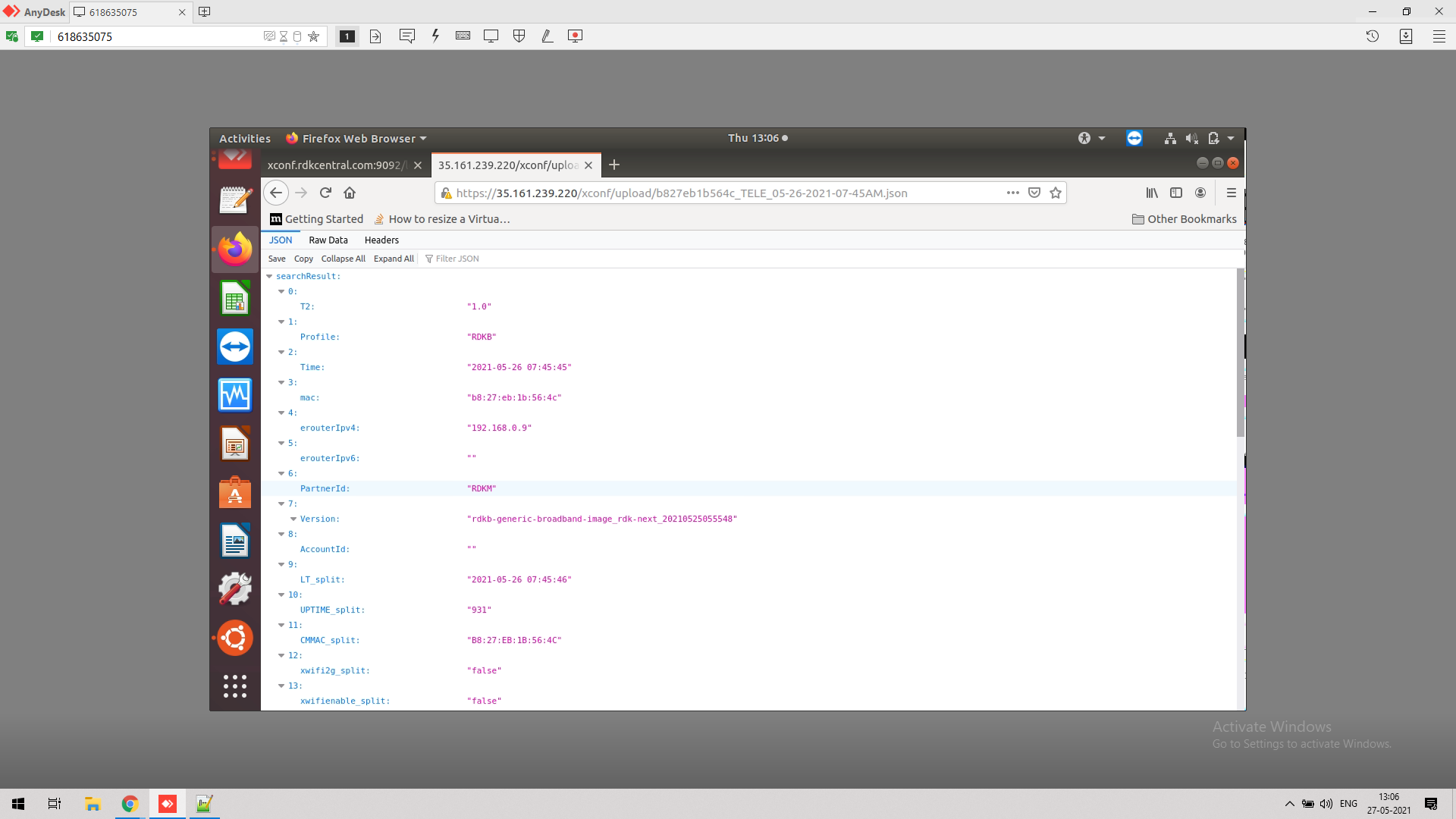

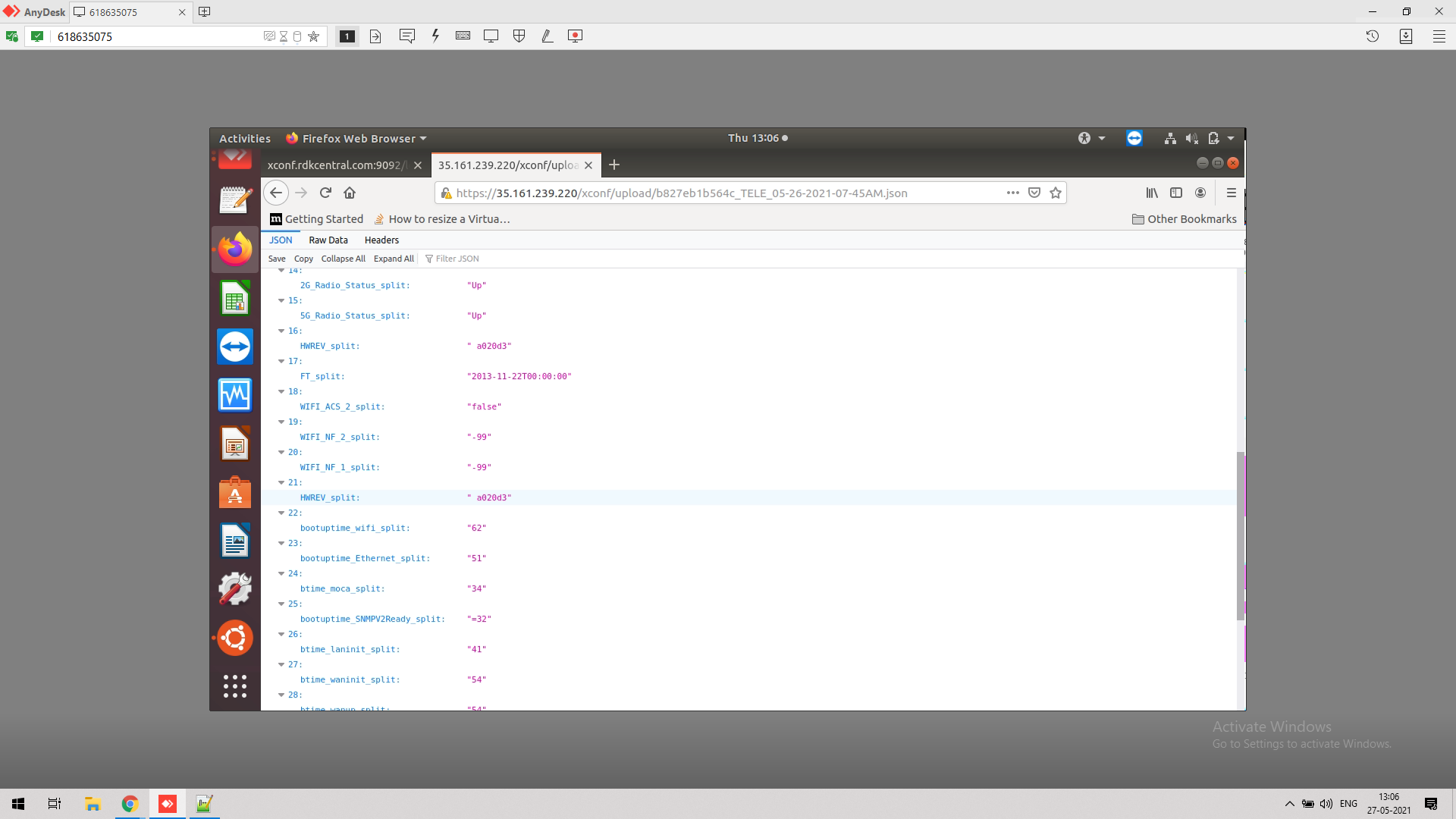

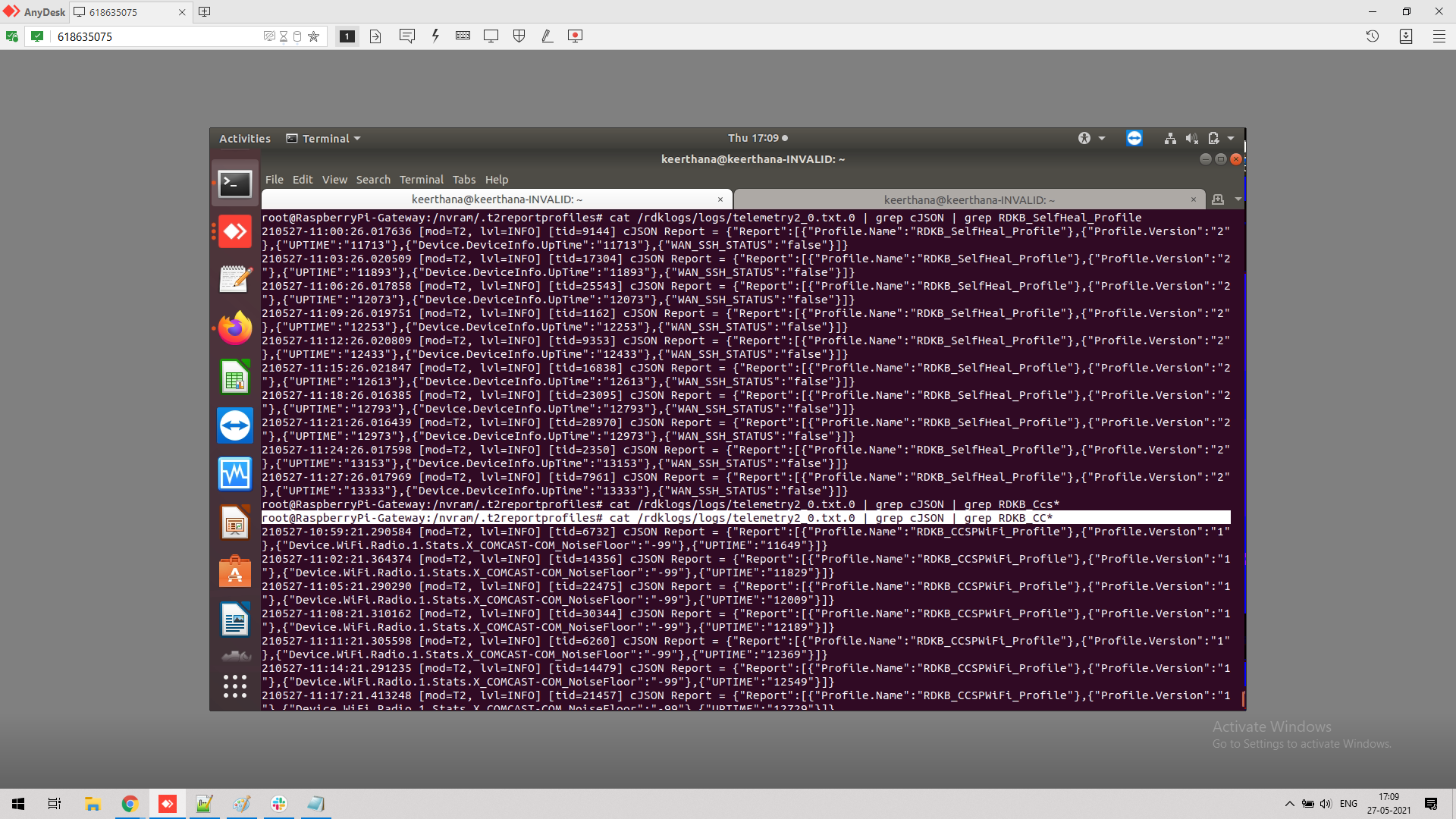

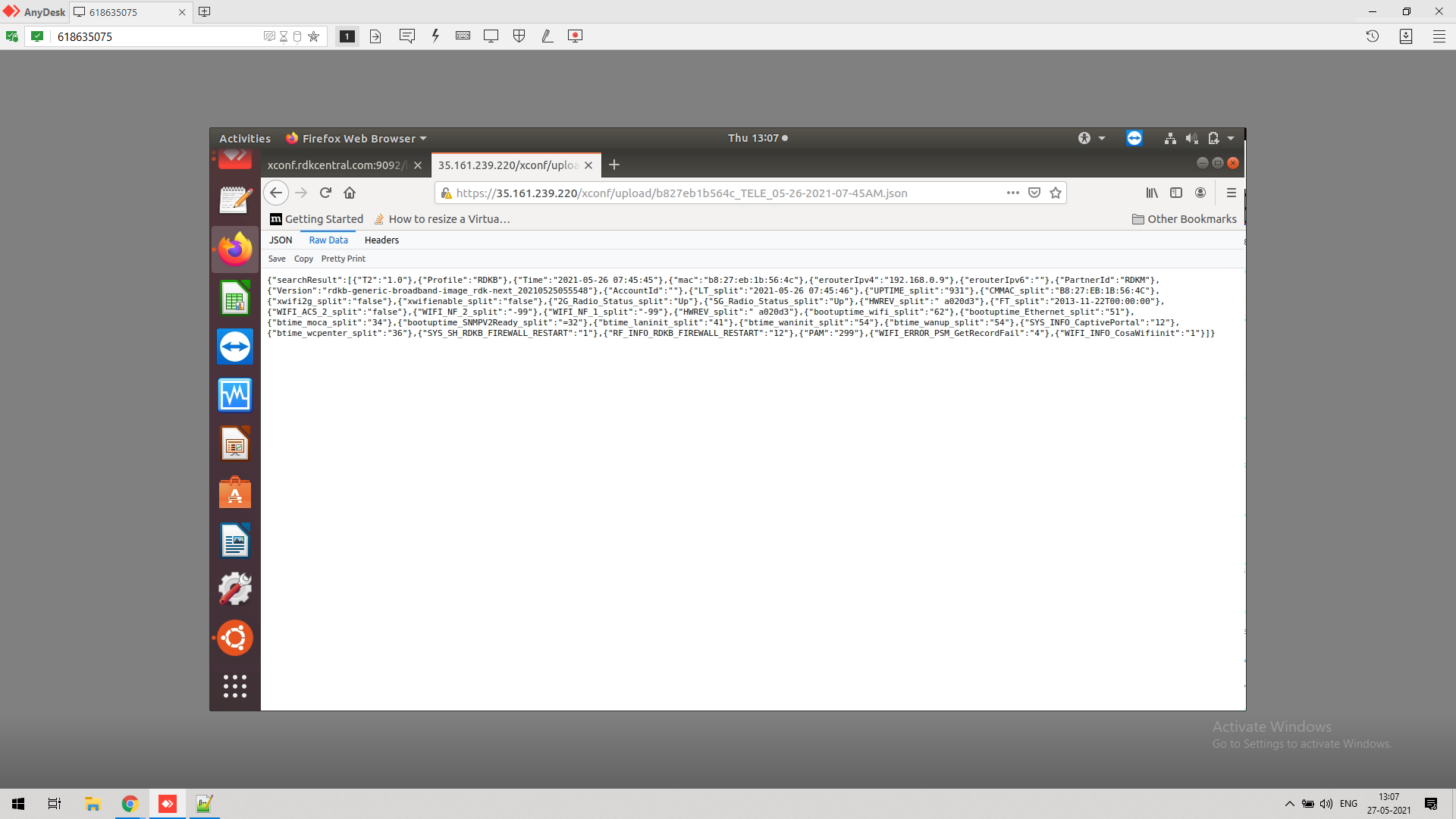

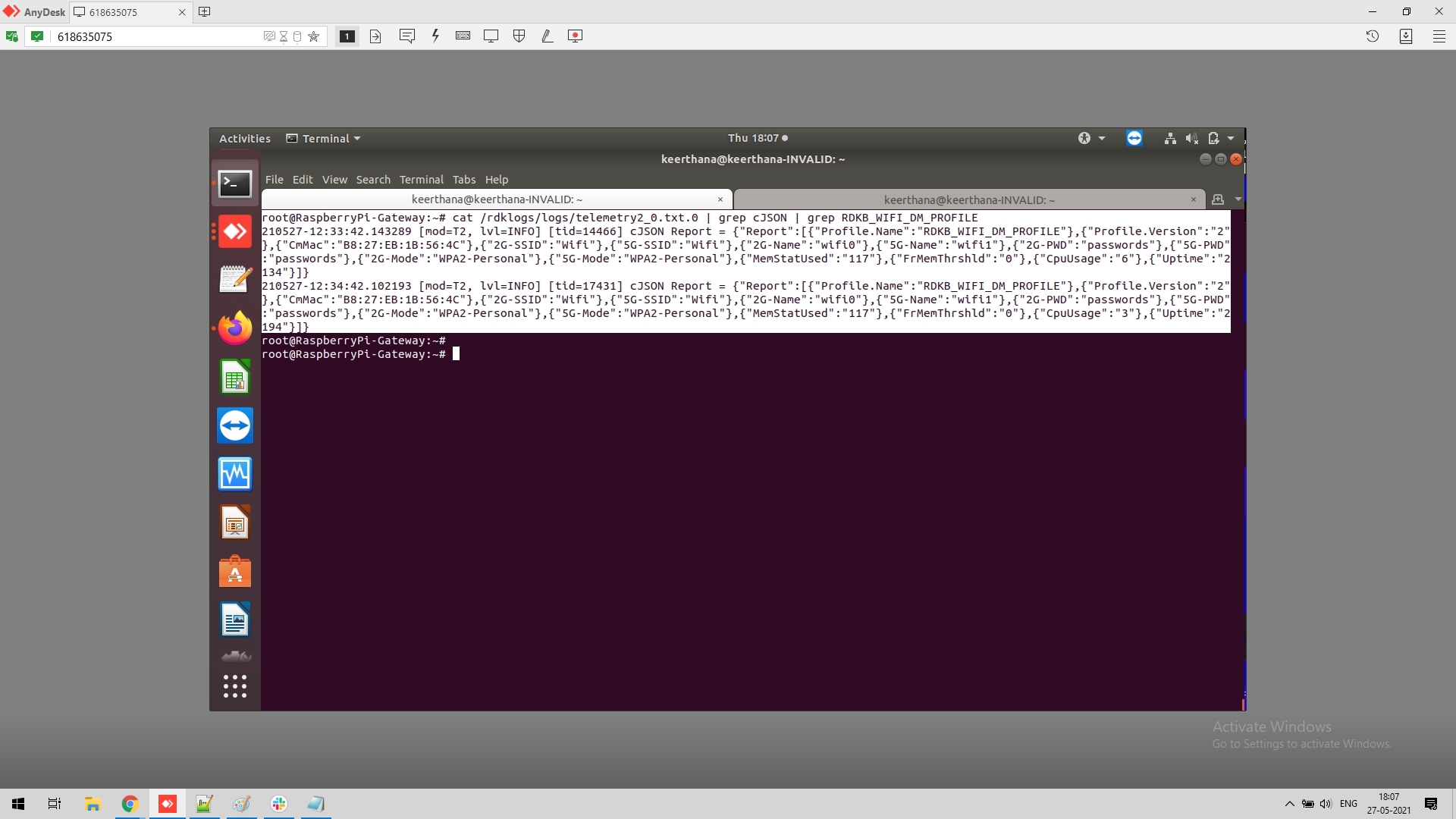

JSON Report

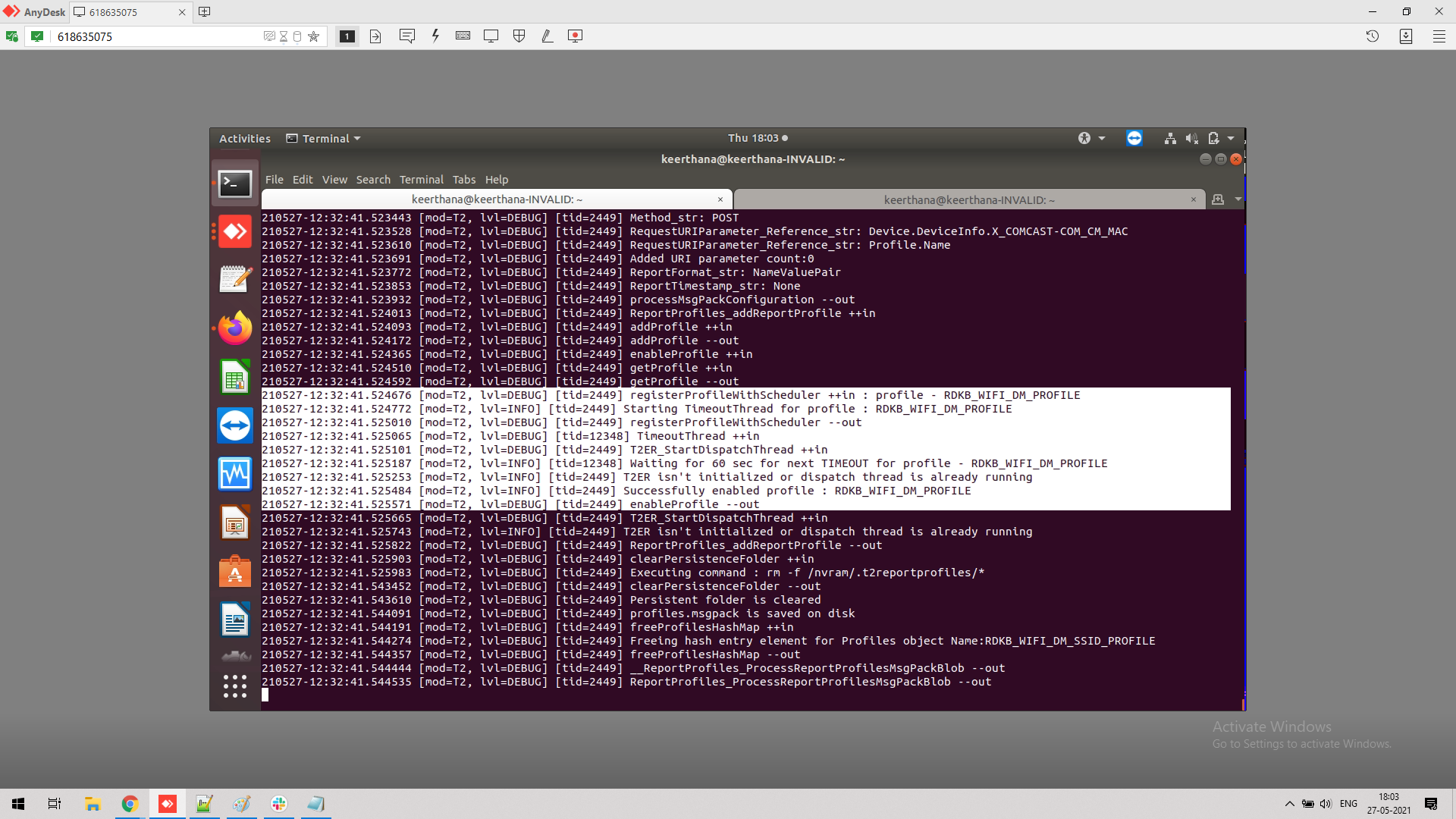

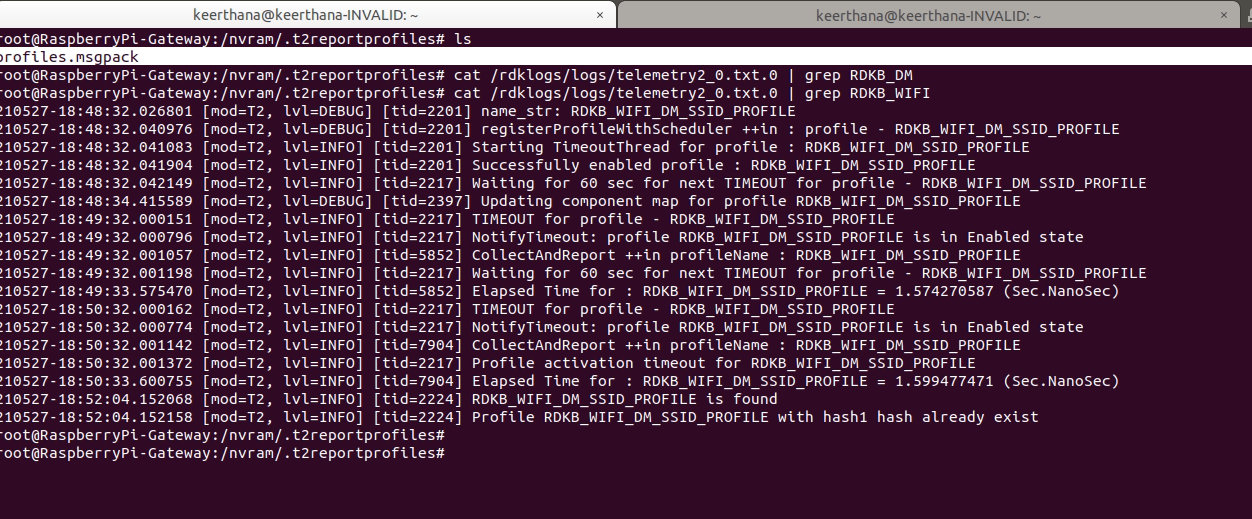

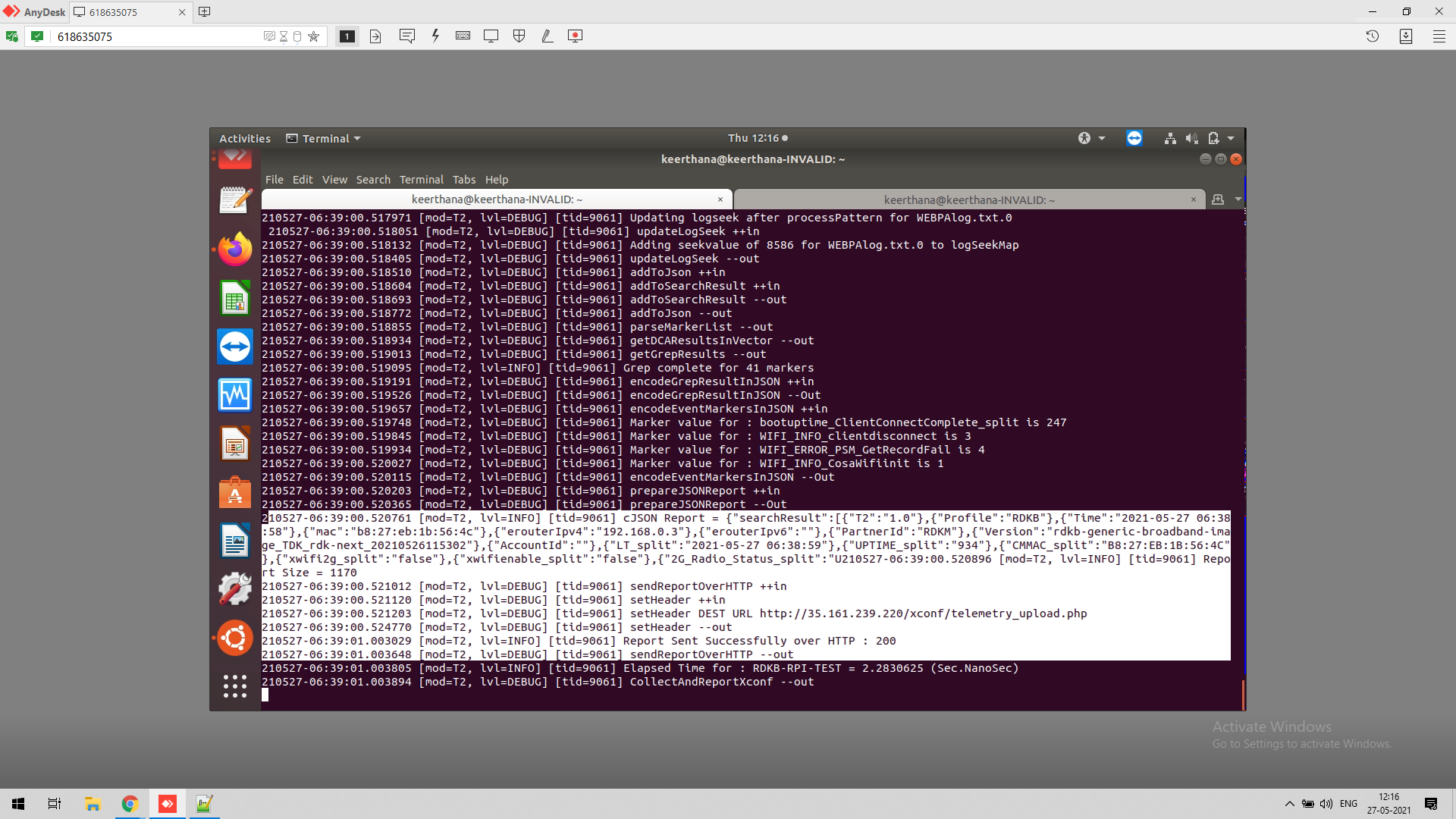

Successful logs for sending the JSON report to xconf server in /rdklogs/logs/telemetry2_0.txt.0,

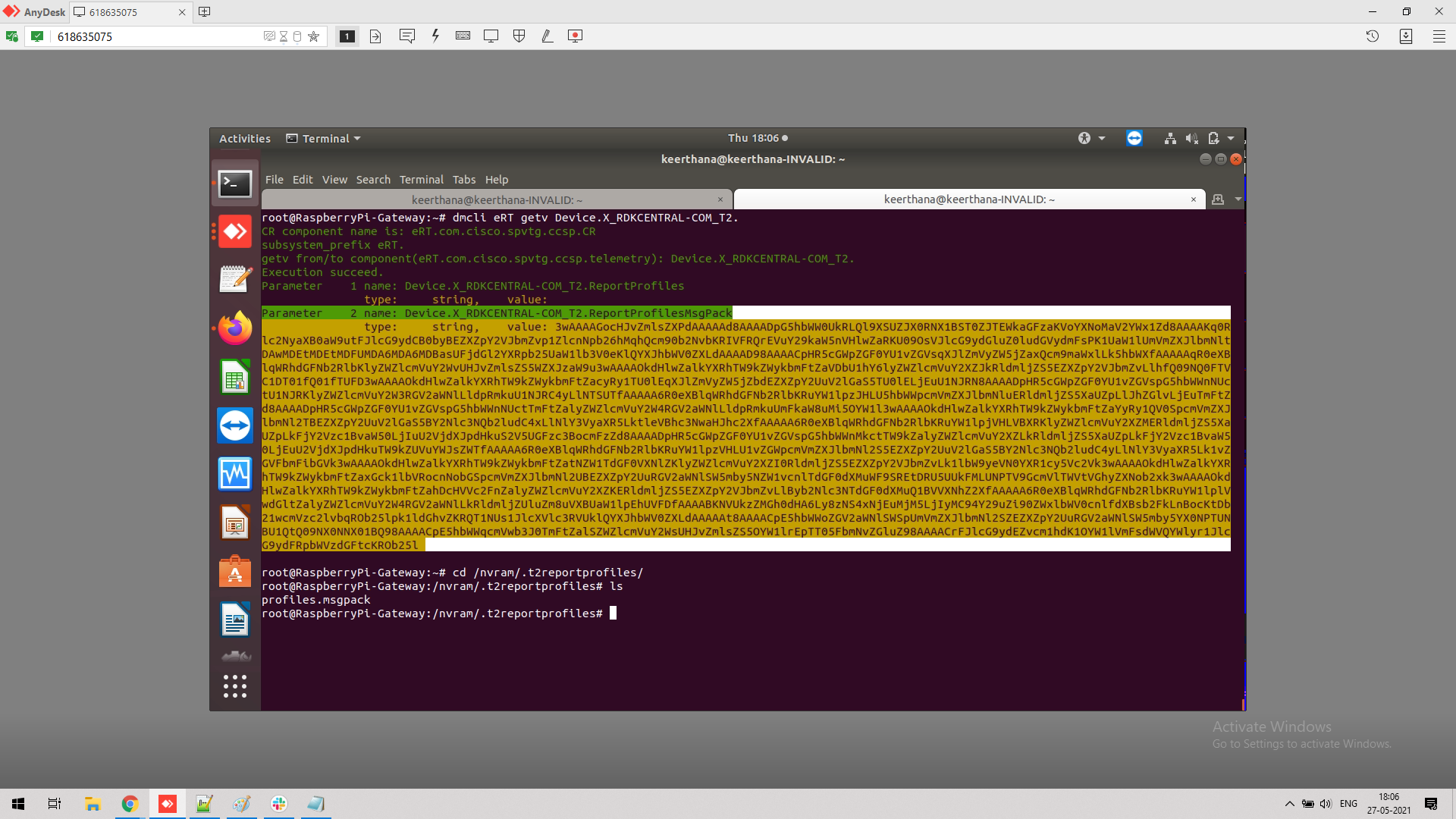

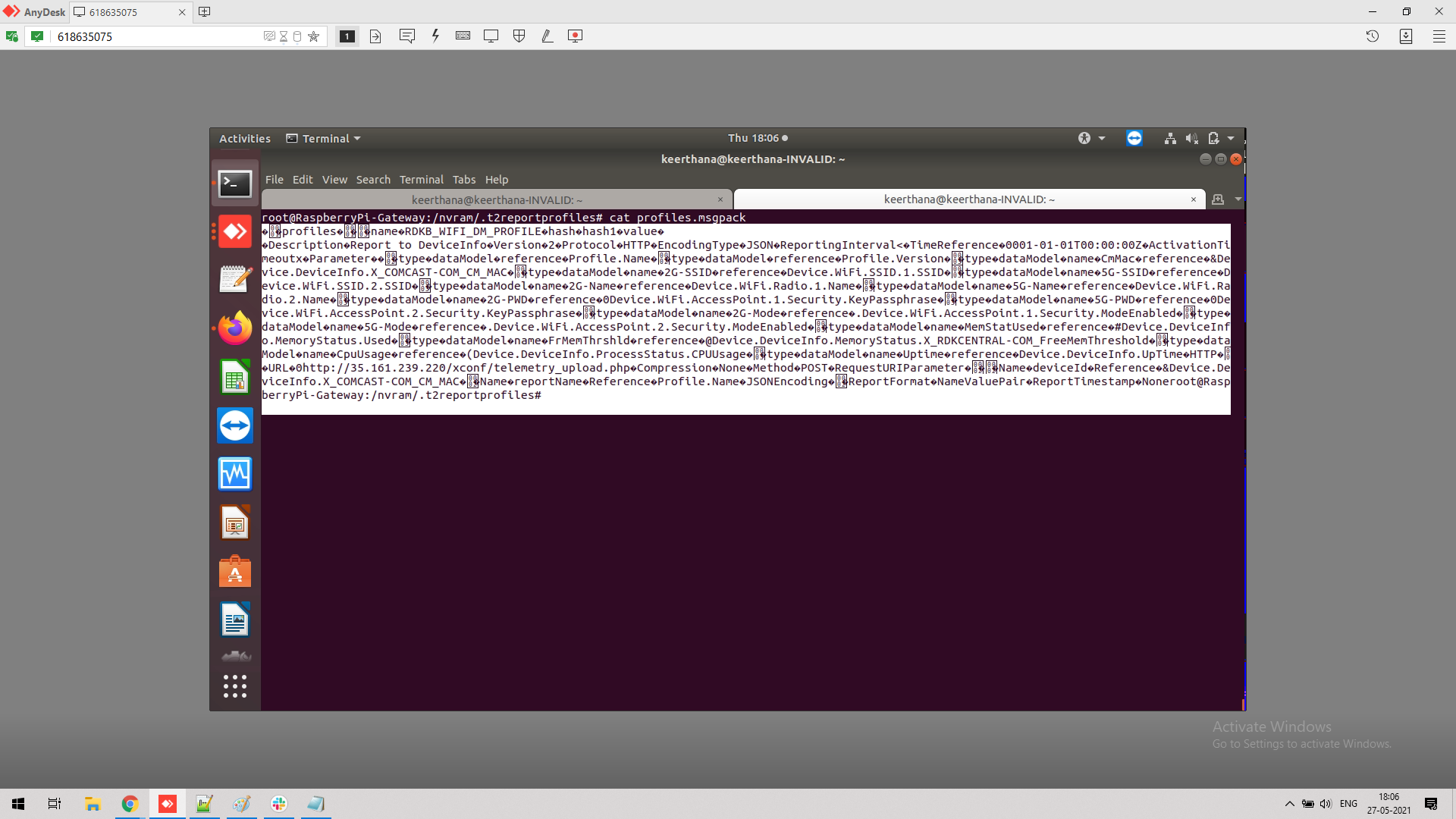

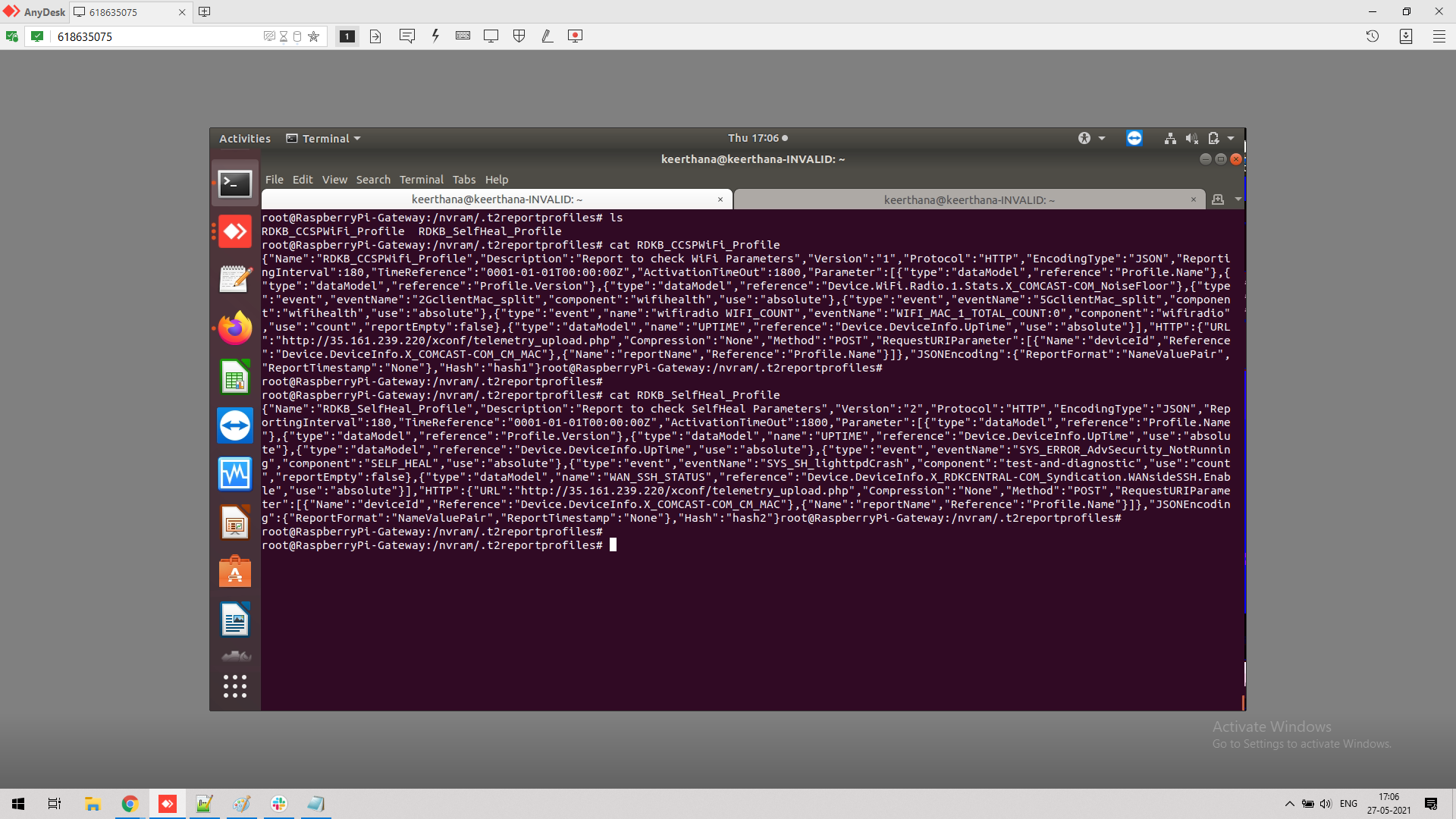

Configuration file

Once the profile details are successfully retrieved , the conf file will be created under /nvram/.t2persistentfolder/DCMresponse.txt which has the server configurations

Log File

$ cat /rdklogs/logs/telemetry2_0.txt.0

Telemetry2 Logs Expand source

RaspberryPi-Gateway:/rdklogs/logs# cat telemetry2_0.txt.0
210527-06:50:44.224195 [mod=T2, lvl=INFO] [tid=2480] Initializing Telemetry 2.0 Component
210527-06:50:44.226510 [mod=T2, lvl=DEBUG] [tid=2480] initTelemetry ++in
210527-06:50:44.226645 [mod=T2, lvl=DEBUG] [tid=2480] initReportProfiles ++in
210527-06:50:44.226775 [mod=T2, lvl=DEBUG] [tid=2480] initScheduler ++in
210527-06:50:44.226867 [mod=T2, lvl=DEBUG] [tid=2480] initScheduler --out
210527-06:50:44.226956 [mod=T2, lvl=DEBUG] [tid=2480] initT2MarkerComponentMap ++in
210527-06:50:44.227054 [mod=T2, lvl=DEBUG] [tid=2480] initT2MarkerComponentMap --out
210527-06:50:44.227137 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_Init ++in
210527-06:50:44.227253 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled ++in
210527-06:50:44.227507 [mod=T2, lvl=DEBUG] [tid=2480] RBUS mode active status = false
210527-06:50:44.227592 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled --out
210527-06:50:44.227673 [mod=T2, lvl=DEBUG] [tid=2480] Register event call back function T2ER_PushDataWithDelim
210527-06:50:44.227764 [mod=T2, lvl=DEBUG] [tid=2480] registerForTelemetryEvents ++in
210527-06:50:44.227870 [mod=T2, lvl=DEBUG] [tid=2480] busInit ++in
210527-06:50:44.227974 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled ++in
210527-06:50:44.228084 [mod=T2, lvl=DEBUG] [tid=2480] RBUS mode active status = false
210527-06:50:44.228167 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled --out
210527-06:50:44.228246 [mod=T2, lvl=DEBUG] [tid=2480] busInit --out
210527-06:50:44.228335 [mod=T2, lvl=DEBUG] [tid=2480] registerCcspT2EventListener ++in
210527-06:50:44.228417 [mod=T2, lvl=DEBUG] [tid=2480] CCSPInterface_Init ++in
210527-06:50:44.242998 [mod=T2, lvl=DEBUG] [tid=2480] CCSPInterface_Init --out
210527-06:50:44.245132 [mod=T2, lvl=INFO] [tid=2480] Registration with CCSP Bus successful, waiting for Telemetry Events from components...
210527-06:50:44.245330 [mod=T2, lvl=DEBUG] [tid=2480] registerCcspT2EventListener --out
210527-06:50:44.245440 [mod=T2, lvl=DEBUG] [tid=2480] registerForTelemetryEvents --out
210527-06:50:44.356471 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_Init --out
210527-06:50:44.356699 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_init ++in
210527-06:50:44.356829 [mod=T2, lvl=DEBUG] [tid=2480] fetchLocalConfigs ++in
210527-06:50:44.357081 [mod=T2, lvl=DEBUG] [tid=2480] Config file : /nvram/.t2persistentfolder/DCMresponse.txt
210527-06:50:44.357228 [mod=T2, lvl=INFO] [tid=2480] Filename : DCMresponse.txt Size : 11126
210527-06:50:44.357468 [mod=T2, lvl=DEBUG] [tid=2480] Config data size = 11126
210527-06:50:44.358279 [mod=T2, lvl=DEBUG] [tid=2480] Config data = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL":"h210527-06:50:44.358694 [mod=T2, lvl=INFO] [tid=2480] Returning 1 local configurations
210527-06:50:44.358823 [mod=T2, lvl=DEBUG] [tid=2480] fetchLocalConfigs --out
210527-06:50:44.358916 [mod=T2, lvl=DEBUG] [tid=2480] Processing config with name : DCMresponse.txt
210527-06:50:44.359020 [mod=T2, lvl=DEBUG] [tid=2480] Config Size = 11126
210527-06:50:44.359138 [mod=T2, lvl=DEBUG] [tid=2480] processConfigurationXConf ++in
210527-06:50:44.359872 [mod=T2, lvl=DEBUG] [tid=2480] config data = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL":"h210527-06:50:44.361926 [mod=T2, lvl=DEBUG] [tid=2480] profile name = RDKB-RPI-TEST
210527-06:50:44.362060 [mod=T2, lvl=DEBUG] [tid=2480] upload url = http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:44.362203 [mod=T2, lvl=DEBUG] [tid=2480] schedule = 2
210527-06:50:44.362285 [mod=T2, lvl=DEBUG] [tid=2480] marker count = 84
210527-06:50:44.362391 [mod=T2, lvl=INFO] [tid=2480] Received profile name : RDKB-RPI-TEST with interval of : 900 secs and upload url : http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:44.363169 [mod=T2, lvl=INFO] [tid=2480] Number of tr181params/markers successfully added in profile = 84
210527-06:50:44.363740 [mod=T2, lvl=DEBUG] [tid=2480] processConfigurationXConf --out
210527-06:50:44.363835 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_set ++in
210527-06:50:44.363992 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364088 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364197 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364294 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364389 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364502 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364602 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364703 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364804 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364905 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365010 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365116 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365224 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365360 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365473 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365586 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365701 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365820 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366031 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366159 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366291 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366421 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366554 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366692 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366893 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367043 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367246 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367474 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367680 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367811 [mod=T2, lvl=DEBUG] [tid=2480] Found a matching T2Marker
210527-06:50:44.367905 [mod=T2, lvl=DEBUG] [tid=2480] RDKB-RPI-TEST already present in eventlist of Total_online_clients_split . Ignore updates
210527-06:50:44.368117 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368339 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368577 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368812 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368996 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.369127 [mod=T2, lvl=DEBUG] [tid=2480] registerProfileWithScheduler ++in : profile - RDKB-RPI-TEST
210527-06:50:44.369281 [mod=T2, lvl=INFO] [tid=2480] Starting TimeoutThread for profile : RDKB-RPI-TEST
210527-06:50:44.369610 [mod=T2, lvl=DEBUG] [tid=2480] registerProfileWithScheduler --out
210527-06:50:44.369716 [mod=T2, lvl=INFO] [tid=2480] Successfully set profile : RDKB-RPI-TEST
210527-06:50:44.369828 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_set --out
210527-06:50:44.369935 [mod=T2, lvl=DEBUG] [tid=2504] TimeoutThread ++in
210527-06:50:44.370145 [mod=T2, lvl=INFO] [tid=2504] Waiting for 900 sec for next TIMEOUT for profile - RDKB-RPI-TEST
210527-06:50:44.369943 [mod=T2, lvl=INFO] [tid=2480] Successfully set new profile: RDKB-RPI-TEST
210527-06:50:44.384757 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_init --out
210527-06:50:44.384917 [mod=T2, lvl=DEBUG] [tid=2480] getParameterValue ++in
210527-06:50:44.385043 [mod=T2, lvl=DEBUG] [tid=2480] getCCSPParamVal ++in
210527-06:50:44.385178 [mod=T2, lvl=DEBUG] [tid=2480] ccspGetParameterValues ++in
210527-06:50:44.385275 [mod=T2, lvl=DEBUG] [tid=2480] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version
210527-06:50:44.393891 [mod=T2, lvl=DEBUG] [tid=2480] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.394110 [mod=T2, lvl=DEBUG] [tid=2480] findDestComponent --out
210527-06:50:44.394244 [mod=T2, lvl=DEBUG] [tid=2480] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.397406 [mod=T2, lvl=DEBUG] [tid=2480] ccspGetParameterValues --out
210527-06:50:44.397582 [mod=T2, lvl=DEBUG] [tid=2480] Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version = 2
210527-06:50:44.397708 [mod=T2, lvl=DEBUG] [tid=2480] getCCSPParamVal --out
210527-06:50:44.397794 [mod=T2, lvl=DEBUG] [tid=2480] getParameterValue --out
210527-06:50:44.397927 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf is set
210527-06:50:44.398020 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled ++in
210527-06:50:44.398161 [mod=T2, lvl=DEBUG] [tid=2480] RBUS mode active status = false
210527-06:50:44.398258 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled --out
210527-06:50:44.398368 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_StartDispatchThread ++in
210527-06:50:44.398693 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_StartDispatchThread --out
210527-06:50:44.398800 [mod=T2, lvl=DEBUG] [tid=2512] T2ER_EventDispatchThread ++in
210527-06:50:44.398931 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 0
210527-06:50:44.399016 [mod=T2, lvl=DEBUG] [tid=2512] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:44.398806 [mod=T2, lvl=DEBUG] [tid=2480] initReportProfiles --out
210527-06:50:44.400249 [mod=T2, lvl=INFO] [tid=2480] Init ReportProfiles Successful
210527-06:50:44.400369 [mod=T2, lvl=DEBUG] [tid=2480] initXConfClient ++in
210527-06:50:44.400490 [mod=T2, lvl=DEBUG] [tid=2480] startXConfClient ++in
210527-06:50:44.400962 [mod=T2, lvl=DEBUG] [tid=2480] startXConfClient --out
210527-06:50:44.401059 [mod=T2, lvl=DEBUG] [tid=2513] getUpdatedConfigurationThread ++in
210527-06:50:44.401179 [mod=T2, lvl=DEBUG] [tid=2513] getRemoteConfigURL ++in
210527-06:50:44.401336 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.401462 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.401580 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.401725 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL
210527-06:50:44.401078 [mod=T2, lvl=DEBUG] [tid=2480] initXConfClient --out
210527-06:50:44.402751 [mod=T2, lvl=INFO] [tid=2480] Init Xconf Client Success
210527-06:50:44.403713 [mod=T2, lvl=DEBUG] [tid=2480] initTelemetry --out
210527-06:50:44.403814 [mod=T2, lvl=DEBUG] [tid=2480] initTelemetry --out
210527-06:50:44.403907 [mod=T2, lvl=INFO] [tid=2480] Telemetry 2.0 Component Init Success
210527-06:50:44.404502 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.404643 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.404751 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.408259 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.408442 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL = https://xconf.rdkcentral.com:9092/loguploader/getT2Settings
210527-06:50:44.408533 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.408616 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.408719 [mod=T2, lvl=INFO] [tid=2513] Setting config URL base location to : https://xconf.rdkcentral.com:9092/loguploader/getT2Settings
210527-06:50:44.408803 [mod=T2, lvl=DEBUG] [tid=2513] getRemoteConfigURL --out
210527-06:50:44.408884 [mod=T2, lvl=DEBUG] [tid=2513] fetchRemoteConfiguration ++in
210527-06:50:44.408968 [mod=T2, lvl=DEBUG] [tid=2513] appendRequestParams ++in
210527-06:50:44.409073 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.409180 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.409284 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.409375 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC
210527-06:50:44.412200 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.412414 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.412521 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.417216 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.417385 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_COMCAST-COM_WAN_MAC = b8:27:eb:1b:56:4c
210527-06:50:44.417476 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.417558 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.417688 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.417773 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.417854 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.417937 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.SoftwareVersion
210527-06:50:44.422401 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.422576 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.422698 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.SoftwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.446401 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.446590 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.SoftwareVersion = rdkb-generic-broadband-image_TDK_rdk-next_20210526115302
210527-06:50:44.446709 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.446793 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.446880 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.446977 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.447059 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.447146 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.ModelName
210527-06:50:44.450205 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.450402 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.450495 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.ModelName, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.482267 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.482567 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.ModelName = RPI
210527-06:50:44.482709 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.482795 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.482913 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.483015 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.483101 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.483202 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId
210527-06:50:44.491006 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.491186 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.491275 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.493930 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.494096 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId = RDKM
210527-06:50:44.494189 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.494280 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.494410 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.494521 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.494639 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.494742 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID
210527-06:50:44.499092 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.499265 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.499373 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.502496 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.502698 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID =
210527-06:50:44.502818 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.502938 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.503045 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.503143 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.503249 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.503368 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_CM_MAC
210527-06:50:44.510118 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.510291 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.510395 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_CM_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.555974 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.556186 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_COMCAST-COM_CM_MAC = B8:27:EB:1B:56:4C
210527-06:50:44.556290 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.556379 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.556661 [mod=T2, lvl=DEBUG] [tid=2513] appendRequestParams:216 Final http get URL if size 782 is :
 https://xconf.rdkcentral.com:9092/loguploader/getT2Settings?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_TDK_rdk-next_20210526115302&model=RPI&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2
210527-06:50:44.556829 [mod=T2, lvl=DEBUG] [tid=2513] appendRequestParams --out
210527-06:50:44.556912 [mod=T2, lvl=DEBUG] [tid=2513] doHttpGet ++in
210527-06:50:44.556995 [mod=T2, lvl=INFO] [tid=2513] doHttpGet with url https://xconf.rdkcentral.com:19092/loguploader/getT2Settings?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_TDK_rdk-next_20210526115302&model=RPI&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2
210527-06:50:44.722913 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:44.723097 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:44.723246 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:44.723418 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:44.723604 [mod=T2, lvl=DEBUG] [tid=2512] Received signal from T2ER_Push
210527-06:50:44.723692 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 1
210527-06:50:44.723824 [mod=T2, lvl=WARN] [tid=2512] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:44.723917 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 0
210527-06:50:44.724027 [mod=T2, lvl=DEBUG] [tid=2512] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:44.861693 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:44.861876 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : RF_ERROR_wan_restart<#=#>1
210527-06:50:44.861988 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : RF_ERROR_wan_restart eventValue : 1 to t2event queue
210527-06:50:44.862098 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:44.862271 [mod=T2, lvl=DEBUG] [tid=2512] Received signal from T2ER_Push
210527-06:50:44.862375 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 1
210527-06:50:44.862523 [mod=T2, lvl=WARN] [tid=2512] No Matching Profiles for event with MarkerName : RF_ERROR_wan_restart Value : 1 - Ignoring
210527-06:50:44.862617 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 0
210527-06:50:44.862713 [mod=T2, lvl=DEBUG] [tid=2512] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:45.733183 [mod=T2, lvl=INFO] [tid=2513] doHttpGet:320, T2:Telemetry XCONF communication success
210527-06:50:45.747311 [mod=T2, lvl=DEBUG] [tid=2513] doHttpGet --out
210527-06:50:45.747489 [mod=T2, lvl=DEBUG] [tid=2513] fetchRemoteConfiguration --out
210527-06:50:45.747576 [mod=T2, lvl=DEBUG] [tid=2513] Config received successfully from URL : https://xconf.rdkcentral.com:19092/loguploader/getT2Settings
210527-06:50:45.748496 [mod=T2, lvl=DEBUG] [tid=2513] Config received = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL210527-06:50:45.749017 [mod=T2, lvl=DEBUG] [tid=2513] processConfigurationXConf ++in
210527-06:50:45.749773 [mod=T2, lvl=DEBUG] [tid=2513] config data = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL":"h210527-06:50:45.752717 [mod=T2, lvl=DEBUG] [tid=2513] profile name = RDKB-RPI-TEST
210527-06:50:45.752899 [mod=T2, lvl=DEBUG] [tid=2513] upload url = http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:45.752990 [mod=T2, lvl=DEBUG] [tid=2513] schedule = 2
210527-06:50:45.753074 [mod=T2, lvl=DEBUG] [tid=2513] marker count = 84
210527-06:50:45.753160 [mod=T2, lvl=INFO] [tid=2513] Received profile name : RDKB-RPI-TEST with interval of : 900 secs and upload url : http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:45.754081 [mod=T2, lvl=INFO] [tid=2513] Number of tr181params/markers successfully added in profile = 84
210527-06:50:45.755185 [mod=T2, lvl=DEBUG] [tid=2513] processConfigurationXConf --out
210527-06:50:45.755354 [mod=T2, lvl=INFO] [tid=2513] Profile exists already, updating the config in file system
210527-06:50:45.755447 [mod=T2, lvl=DEBUG] [tid=2513] saveConfigToFile ++in
210527-06:50:45.757114 [mod=T2, lvl=DEBUG] [tid=2513] saveConfigToFile --out
210527-06:50:45.757265 [mod=T2, lvl=DEBUG] [tid=2513] Disable and Delete old profile RDKB-RPI-TEST
210527-06:50:45.757368 [mod=T2, lvl=DEBUG] [tid=2513] ReportProfiles_deleteProfileXConf ++in
210527-06:50:45.757452 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf is set
210527-06:50:45.757540 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StopDispatchThread ++in
210527-06:50:45.757688 [mod=T2, lvl=DEBUG] [tid=2512] Received signal from T2ER_Push
210527-06:50:45.757791 [mod=T2, lvl=DEBUG] [tid=2512] T2ER_EventDispatchThread --out
210527-06:50:45.757976 [mod=T2, lvl=DEBUG] [tid=2513] flushCacheFromFile ++in
210527-06:50:45.758350 [mod=T2, lvl=DEBUG] [tid=2513] T2: Sending cache event : btime_moca_split<#=#>30
210527-06:50:45.758457 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim ++in
210527-06:50:45.758542 [mod=T2, lvl=DEBUG] [tid=2513] Received eventInfo : btime_moca_split<#=#>30
210527-06:50:45.758630 [mod=T2, lvl=DEBUG] [tid=2513] Adding eventName : btime_moca_split eventValue : 30 to t2event queue
210527-06:50:45.758732 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim --out
210527-06:50:45.758816 [mod=T2, lvl=DEBUG] [tid=2513] T2: Sending cache event : bootuptime_SNMPV2Ready_split<#=#>32
210527-06:50:45.758897 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim ++in
210527-06:50:45.758978 [mod=T2, lvl=DEBUG] [tid=2513] Received eventInfo : bootuptime_SNMPV2Ready_split<#=#>32
210527-06:50:45.759063 [mod=T2, lvl=DEBUG] [tid=2513] Adding eventName : bootuptime_SNMPV2Ready_split eventValue : 32 to t2event queue
210527-06:50:45.759145 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim --out
210527-06:50:45.759445 [mod=T2, lvl=DEBUG] [tid=2513] T2: Sending cache event : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:45.759559 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim ++in
210527-06:50:45.759643 [mod=T2, lvl=DEBUG] [tid=2513] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:45.759730 [mod=T2, lvl=DEBUG] [tid=2513] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:45.760031 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim --out
210527-06:50:45.760494 [mod=T2, lvl=DEBUG] [tid=2513] fopen failed for /tmp/t2_atom_caching_file
210527-06:50:45.761094 [mod=T2, lvl=DEBUG] [tid=2513] flushCacheFromFile --out
210527-06:50:45.761251 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StopDispatchThread --out
210527-06:50:45.761352 [mod=T2, lvl=DEBUG] [tid=2513] clearT2MarkerComponentMap ++in
210527-06:50:45.761868 [mod=T2, lvl=DEBUG] [tid=2513] clearT2MarkerComponentMap --out
210527-06:50:45.761989 [mod=T2, lvl=DEBUG] [tid=2513] updateMarkerComponentMap ++in
210527-06:50:45.762073 [mod=T2, lvl=DEBUG] [tid=2513] updateMarkerComponentMap --out
210527-06:50:45.762166 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_delete ++in
210527-06:50:45.762266 [mod=T2, lvl=INFO] [tid=2513] removing profile : RDKB-RPI-TEST
210527-06:50:45.762502 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_delete --out
210527-06:50:45.762590 [mod=T2, lvl=DEBUG] [tid=2513] Set new profile : RDKB-RPI-TEST
210527-06:50:45.762951 [mod=T2, lvl=DEBUG] [tid=2513] ReportProfiles_setProfileXConf ++in
210527-06:50:45.763076 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_set ++in
210527-06:50:45.767168 [mod=T2, lvl=ERROR] [tid=2513] Component name list is not initialized . Re-initializing
210527-06:50:45.767419 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767541 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767657 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767775 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767874 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767974 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768073 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768330 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773294 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773469 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773610 [mod=T2, lvl=DEBUG] [tid=2513] Found a matching T2Marker
210527-06:50:45.773695 [mod=T2, lvl=DEBUG] [tid=2513] RDKB-RPI-TEST already present in eventlist of Total_online_clients_split . Ignore updates
210527-06:50:45.774410 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.774631 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.774800 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.774987 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.775328 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.775434 [mod=T2, lvl=DEBUG] [tid=2513] registerProfileWithScheduler ++in : profile - RDKB-RPI-TEST
210527-06:50:45.775542 [mod=T2, lvl=INFO] [tid=2513] Scheduler already assigned for profile RDKB-RPI-TEST , exiting .
210527-06:50:45.775624 [mod=T2, lvl=DEBUG] [tid=2513] registerProfileWithScheduler --out
210527-06:50:45.775705 [mod=T2, lvl=INFO] [tid=2513] Successfully set profile : RDKB-RPI-TEST
210527-06:50:45.775785 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_set --out
210527-06:50:45.775865 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StartDispatchThread ++in
210527-06:50:45.776072 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StartDispatchThread --out
210527-06:50:45.776116 [mod=T2, lvl=DEBUG] [tid=2806] T2ER_EventDispatchThread ++in
210527-06:50:45.776312 [mod=T2, lvl=DEBUG] [tid=2513] ReportProfiles_setProfileXConf --out
210527-06:50:45.776391 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 3
210527-06:50:45.776544 [mod=T2, lvl=INFO] [tid=2513] Successfully set new profile : RDKB-RPI-TEST
210527-06:50:45.776661 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : btime_moca_split Value : 30 - Ignoring
210527-06:50:45.776721 [mod=T2, lvl=DEBUG] [tid=2513] getUpdatedConfigurationThread --out
210527-06:50:45.776750 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 2
210527-06:50:45.776926 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : bootuptime_SNMPV2Ready_split Value : 32 - Ignoring
210527-06:50:45.777011 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:45.777148 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:45.777233 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:45.777325 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:47.890478 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:47.890740 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : btime_waninit_split<#=#>38
210527-06:50:47.890878 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : btime_waninit_split eventValue : 38 to t2event queue
210527-06:50:47.891062 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:47.891285 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:47.891387 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:47.891574 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : btime_waninit_split Value : 38 - Ignoring
210527-06:50:47.891681 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:47.891771 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:55.141136 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:55.141327 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:55.141422 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:55.141527 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:55.141669 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:55.141755 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:55.141886 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:55.141969 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:55.142048 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:55.903766 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:55.903975 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : btime_eth_split<#=#>46
210527-06:50:55.904092 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : btime_eth_split eventValue : 46 to t2event queue
210527-06:50:55.904205 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:55.904385 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:55.904480 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:55.904616 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : btime_eth_split Value : 46 - Ignoring
210527-06:50:55.904721 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:55.904804 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:56.103099 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:56.103339 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:56.103435 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:56.103565 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:56.103705 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:56.103791 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:56.103920 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:56.104005 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:56.104084 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:04.031749 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:04.031940 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:04.032051 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:04.032161 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:04.032301 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:04.032388 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:04.032542 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:04.032626 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:04.032718 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:04.032805 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:04.032890 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 1
210527-06:51:04.032970 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:04.033062 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:04.033147 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:04.033227 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:04.405652 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:04.405769 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:04.405862 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:04.405966 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:04.406103 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:04.406190 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:04.406316 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:04.406412 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:04.406493 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:04.406574 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:04.406659 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 2
210527-06:51:04.406737 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:04.406817 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:04.406899 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:04.406980 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:05.996497 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:05.996640 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:05.996797 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:05.996903 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:05.997036 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:05.997122 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:05.997251 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:05.997333 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:05.997414 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:05.997495 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:05.997581 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 3
210527-06:51:05.997661 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:05.997740 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:05.997836 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:05.997917 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:06.142735 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:06.142882 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:06.142977 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:06.143088 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:06.143230 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:06.143345 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:06.143495 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:06.143607 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:06.143709 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:06.143835 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:06.143935 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 4
210527-06:51:06.144020 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:06.144099 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:06.144186 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:06.144283 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:06.804651 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:06.804836 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_CosaWifiinit<#=#>1
210527-06:51:06.804949 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_CosaWifiinit eventValue : 1 to t2event queue
210527-06:51:06.805112 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:06.805274 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:06.805375 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:06.805501 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_CosaWifiinit value : 1
210527-06:51:06.805599 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:06.805682 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:06.805767 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:06.805852 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 1
210527-06:51:06.805931 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:06.806032 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:06.806116 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:06.806267 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:07.121048 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:07.121249 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : bootuptime_wifi_split<#=#>57
210527-06:51:07.121345 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : bootuptime_wifi_split eventValue : 57 to t2event queue
210527-06:51:07.121450 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:07.121591 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:07.121677 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:07.121806 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : bootuptime_wifi_split Value : 57 - Ignoring
210527-06:51:07.121891 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:07.121986 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:52:48.327283 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:52:48.327453 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : bootuptime_ClientConnectComplete_split<#=#>158
210527-06:52:48.327610 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : bootuptime_ClientConnectComplete_split eventValue : 158 to t2event queue
210527-06:52:48.327782 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:52:48.327936 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:52:48.328048 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:52:48.328246 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : bootuptime_ClientConnectComplete_split value : 158
210527-06:52:48.328353 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:52:48.328443 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:52:48.328537 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:52:48.328622 [mod=T2, lvl=DEBUG] [tid=2806] New marker value saved : 158
210527-06:52:48.328702 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:52:48.328781 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:52:48.328865 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:52:48.328944 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:53:48.952569 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:53:48.952792 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_clientdisconnect<#=#>1
210527-06:53:48.952899 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_clientdisconnect eventValue : 1 to t2event queue
210527-06:53:48.953031 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:53:48.953241 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:53:48.953353 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:53:48.953550 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_clientdisconnect value : 1
210527-06:53:48.953690 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:53:48.953822 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:53:48.953916 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:53:48.954000 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 1
210527-06:53:48.954080 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:53:48.954169 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:53:48.954299 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:53:48.954433 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:55:50.562218 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:55:50.562399 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_clientdisconnect<#=#>1
210527-06:55:50.562502 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_clientdisconnect eventValue : 1 to t2event queue
210527-06:55:50.562605 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:55:50.562643 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:55:50.562893 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:55:50.563036 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_clientdisconnect value : 1
210527-06:55:50.563126 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:55:50.563214 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:55:50.563303 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:55:50.563401 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 2
210527-06:55:50.563481 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:55:50.563561 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:55:50.563644 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:55:50.563724 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:56:50.182976 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:56:50.183138 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_clientdisconnect<#=#>1
210527-06:56:50.183238 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_clientdisconnect eventValue : 1 to t2event queue
210527-06:56:50.183342 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:56:50.183381 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:56:50.183497 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:56:50.183632 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_clientdisconnect value : 1
210527-06:56:50.183716 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:56:50.183797 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:56:50.183880 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:56:50.183984 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 3
210527-06:56:50.184064 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:56:50.184142 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:56:50.184225 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:56:50.184304 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-07:05:44.000155 [mod=T2, lvl=INFO] [tid=2504] TIMEOUT for profile - RDKB-RPI-TEST
210527-07:05:44.000380 [mod=T2, lvl=INFO] [tid=2504] ReportProfiles_TimeoutCb ++in
210527-07:05:44.000479 [mod=T2, lvl=DEBUG] [tid=2504] ProfileXConf_notifyTimeout ++in
210527-07:05:44.000763 [mod=T2, lvl=DEBUG] [tid=2504] ProfileXConf_notifyTimeout --out
210527-07:05:44.000840 [mod=T2, lvl=INFO] [tid=10812] CollectAndReportXconf ++in profileName : RDKB-RPI-TEST
210527-07:05:44.000850 [mod=T2, lvl=INFO] [tid=2504] ReportProfiles_TimeoutCb --out
210527-07:05:44.001026 [mod=T2, lvl=INFO] [tid=2504] Waiting for 900 sec for next TIMEOUT for profile - RDKB-RPI-TEST
210527-07:05:44.001185 [mod=T2, lvl=DEBUG] [tid=10812] getProfileParameterValues ++in
210527-07:05:44.001289 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPProfileParamValues ++in
210527-07:05:44.001381 [mod=T2, lvl=INFO] [tid=10812] TR-181 Param count : 7
210527-07:05:44.001469 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.001552 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC
210527-07:05:44.003602 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.003719 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.003805 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.005938 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.006072 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.006158 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_IP
210527-07:05:44.007953 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.008067 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.008169 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_IP, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.010227 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.010346 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.010430 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_IPv6
210527-07:05:44.012460 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.012606 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.012693 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_IPv6, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.014713 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.014833 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.014920 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId
210527-07:05:44.016763 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.016881 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.016969 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.019001 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.019121 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.019207 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.SoftwareVersion
210527-07:05:44.021236 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.021362 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.021452 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.SoftwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.035007 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.035167 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.035253 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID
210527-07:05:44.037183 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.037302 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.037454 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.039472 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.039596 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.039682 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.Time.CurrentLocalTime
210527-07:05:44.041650 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.041776 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.041865 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.Time.CurrentLocalTime, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.074549 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.074704 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPProfileParamValues --Out
210527-07:05:44.074789 [mod=T2, lvl=DEBUG] [tid=10812] getProfileParameterValues --Out
210527-07:05:44.074870 [mod=T2, lvl=INFO] [tid=10812] Fetch complete for TR-181 Object/Parameter Values for parameters
210527-07:05:44.074990 [mod=T2, lvl=DEBUG] [tid=10812] encodeParamResultInJSON ++in
210527-07:05:44.075080 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : mac valueCount = 1
210527-07:05:44.075193 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : erouterIpv4 valueCount = 1
210527-07:05:44.075282 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : erouterIpv6 valueCount = 1
210527-07:05:44.075369 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : PartnerId valueCount = 1
210527-07:05:44.075454 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : Version valueCount = 1
210527-07:05:44.075540 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : AccountId valueCount = 1
210527-07:05:44.075641 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : LT_split valueCount = 1
210527-07:05:44.075725 [mod=T2, lvl=DEBUG] [tid=10812] encodeParamResultInJSON --Out
210527-07:05:44.075806 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.075905 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.075986 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076067 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076146 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076228 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076307 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076389 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076468 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076550 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076629 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076718 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076797 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076881 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076974 [mod=T2, lvl=DEBUG] [tid=10812] getGrepResults ++in
210527-07:05:44.077063 [mod=T2, lvl=DEBUG] [tid=10812] getDCAResultsInVector ++in
210527-07:05:44.077162 [mod=T2, lvl=DEBUG] [tid=10812] initProperties ++in
210527-07:05:44.077377 [mod=T2, lvl=DEBUG] [tid=10812] updateIncludeConfVal ++in
210527-07:05:44.077577 [mod=T2, lvl=DEBUG] [tid=10812] updateIncludeConfVal --out
210527-07:05:44.077682 [mod=T2, lvl=DEBUG] [tid=10812] initProperties --out
210527-07:05:44.077768 [mod=T2, lvl=DEBUG] [tid=10812] parseMarkerList ++in
210527-07:05:44.077854 [mod=T2, lvl=DEBUG] [tid=10812] vMarkerList for profile RDKB-RPI-TEST is of count = 41
210527-07:05:44.077940 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekMapForProfile ++in
210527-07:05:44.078073 [mod=T2, lvl=DEBUG] [tid=10812] Get profileseek map for RDKB-RPI-TEST
210527-07:05:44.078154 [mod=T2, lvl=DEBUG] [tid=10812] Profile seek map doesn't exist, creating one ...
210527-07:05:44.078240 [mod=T2, lvl=DEBUG] [tid=10812] profileSeekMap count 0
210527-07:05:44.078328 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekMapForProfile --out
210527-07:05:44.078409 [mod=T2, lvl=DEBUG] [tid=10812] logSeekMap is null, add logSeekMap for RDKB-RPI-TEST
210527-07:05:44.078495 [mod=T2, lvl=DEBUG] [tid=10812] addToProfileSeekMap ++in for profileName = RDKB-RPI-TEST
210527-07:05:44.078576 [mod=T2, lvl=DEBUG] [tid=10812] Adding GrepSeekProfile for profile RDKB-RPI-TEST in profileSeekMap
210527-07:05:44.078667 [mod=T2, lvl=DEBUG] [tid=10812] addToProfileSeekMap --out
210527-07:05:44.079089 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.079178 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects ++in
210527-07:05:44.079269 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.079356 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.079436 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.079517 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.UpTime
210527-07:05:44.081727 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.081863 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.081951 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.UpTime, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.084014 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.084125 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.UpTime = 934
210527-07:05:44.084213 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.084294 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.084389 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.084492 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.084585 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.084666 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.084746 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.084828 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_CM_MAC
210527-07:05:44.086695 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.086811 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.086899 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_CM_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.106190 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.106363 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.X_COMCAST-COM_CM_MAC = B8:27:EB:1B:56:4C
210527-07:05:44.106454 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.106536 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.106618 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.106699 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.106781 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.106860 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.106941 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.107023 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.108916 [mod=T2, lvl=ERROR] [tid=10812] Failed to get component for Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS ret: 204
210527-07:05:44.109025 [mod=T2, lvl=ERROR] [tid=10812] Unable to find supporting component for parameter : Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.109167 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.109251 [mod=T2, lvl=ERROR] [tid=10812] Unable to get Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.109331 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.109412 [mod=T2, lvl=DEBUG] [tid=10812] Telemetry data source not found. Type = <message_bus>. Content string = Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.109494 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.109573 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.109653 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.109734 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.SSID.5.Enable
210527-07:05:44.111634 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.111768 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.111856 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.SSID.5.Enable, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.113744 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.113845 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.SSID.5.Enable = false
210527-07:05:44.113932 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.114013 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.114093 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.114173 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.114255 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.114334 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.114415 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.114508 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable
210527-07:05:44.116339 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.116455 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.116542 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.118521 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.118629 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable = false
210527-07:05:44.118717 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.118798 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.118879 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.118976 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.119057 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.119137 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.119217 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.119298 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.1.Status
210527-07:05:44.121226 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.121345 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.121432 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.1.Status, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.151756 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.151905 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.1.Status = Up
210527-07:05:44.152058 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.152141 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.152223 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.152404 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.152491 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.152572 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.152652 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.152733 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.2.Status
210527-07:05:44.154799 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.154916 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.155005 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.2.Status, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.185642 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.185792 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.2.Status = Up
210527-07:05:44.185882 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.185963 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.186044 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.186227 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.186316 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.186397 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.186478 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.186560 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.HardwareVersion
210527-07:05:44.188560 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.188691 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.188780 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.HardwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.202859 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.203016 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.HardwareVersion =  a020d3
210527-07:05:44.203107 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.203189 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.203371 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.203458 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.203541 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.203622 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.203716 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.203799 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.FirstUseDate
210527-07:05:44.205906 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.206019 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.206107 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.FirstUseDate, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.208435 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.208558 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.FirstUseDate = 2013-11-22T00:00:00
210527-07:05:44.208648 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.208729 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.208966 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.209058 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.209142 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.209222 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.209302 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.209384 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.2.AutoChannelEnable
210527-07:05:44.211659 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.211792 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.211881 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.2.AutoChannelEnable, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.213861 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.213985 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.2.AutoChannelEnable = false
210527-07:05:44.214074 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.214157 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.214238 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.214319 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.214402 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.214482 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.214744 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.214830 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor
210527-07:05:44.216751 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.216870 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.217069 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.671877 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.672030 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor = -99
210527-07:05:44.672120 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.672222 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.672304 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.672387 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.672468 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects --out
210527-07:05:44.672548 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.672632 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list UPTIME_split : 934
210527-07:05:44.672744 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list CMMAC_split : B8:27:EB:1B:56:4C
210527-07:05:44.672829 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list xwifi2g_split : false
210527-07:05:44.672913 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list xwifienable_split : false
210527-07:05:44.672996 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list 2G_Radio_Status_split : Up
210527-07:05:44.673079 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list 5G_Radio_Status_split : Up
210527-07:05:44.673164 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list HWREV_split :  a020d3
210527-07:05:44.673247 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list FT_split : 2013-11-22T00:00:00
210527-07:05:44.673330 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list WIFI_ACS_2_split : false
210527-07:05:44.673413 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list WIFI_NF_2_split : -99
210527-07:05:44.673492 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.673720 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.673816 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.673898 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects ++in
210527-07:05:44.673980 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.674059 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.674139 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.674220 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor
210527-07:05:44.676175 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.676293 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.676382 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.958291 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.958483 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor = -99
210527-07:05:44.958575 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.958657 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.958738 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.958819 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.958901 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.958980 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.959060 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.959141 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.HardwareVersion
210527-07:05:44.961528 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.961673 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.961781 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.HardwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.975552 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.975723 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.HardwareVersion =  a020d3
210527-07:05:44.975814 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.975896 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.975977 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.976058 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.976139 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects --out
210527-07:05:44.976218 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.976301 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list WIFI_NF_1_split : -99
210527-07:05:44.976395 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list HWREV_split :  a020d3
210527-07:05:44.976476 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.976566 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.976658 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.976763 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:44.976847 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 0 for <message_bus> to logSeekMap
210527-07:05:44.976930 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:44.977010 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:44.977090 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file ArmConsolelog.txt.0
210527-07:05:44.977183 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file ArmConsolelog.txt.0
210527-07:05:44.977263 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:44.977394 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:44.984781 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:44.984899 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.985082 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.985173 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.985296 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.985379 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:44.985462 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 38348 for ArmConsolelog.txt.0 to logSeekMap
210527-07:05:44.985548 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:44.985629 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:44.985709 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file BootTime.log
210527-07:05:44.985793 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file BootTime.log
210527-07:05:44.985883 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:44.985964 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:44.986359 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:44.986446 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.986530 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list bootuptime_wifi_split : 63
210527-07:05:44.986613 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list bootuptime_Ethernet_split : 57
210527-07:05:44.986697 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_moca_split : 28
210527-07:05:44.986779 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list bootuptime_SNMPV2Ready_split : =31
210527-07:05:44.986867 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_laninit_split : 39
210527-07:05:44.986951 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_waninit_split : 38
210527-07:05:44.987054 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list SYS_INFO_Factory_reset : 1
210527-07:05:44.987135 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.987338 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.987446 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.987527 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:44.987609 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 497 for BootTime.log to logSeekMap
210527-07:05:44.987692 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:44.987772 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:44.987851 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file Consolelog.txt.0
210527-07:05:44.987934 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file Consolelog.txt.0
210527-07:05:44.988013 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:44.988092 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.064220 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.064383 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.064474 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list SYS_INFO_CaptivePortal : 3
210527-07:05:45.064560 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_wcpenter_split : 77
210527-07:05:45.064648 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list SYS_SH_RDKB_FIREWALL_RESTART : 1
210527-07:05:45.064735 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list RF_INFO_RDKB_FIREWALL_RESTART : 17
210527-07:05:45.064816 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.064926 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.065017 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.065099 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.065180 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 441769 for Consolelog.txt.0 to logSeekMap
210527-07:05:45.065327 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.065410 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.065491 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file LM.txt.0
210527-07:05:45.065573 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file LM.txt.0
210527-07:05:45.065666 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.065745 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.067941 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.068029 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.068111 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.068195 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.068285 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.068366 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.068465 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 42121 for LM.txt.0 to logSeekMap
210527-07:05:45.068551 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.068632 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.068711 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file PAMlog.txt.0
210527-07:05:45.068794 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file PAMlog.txt.0
210527-07:05:45.068874 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.068953 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.078693 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.078796 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.078887 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list PAM : 299
210527-07:05:45.078968 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.079066 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.079165 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.079247 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.079328 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 207823 for PAMlog.txt.0 to logSeekMap
210527-07:05:45.079413 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.079494 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.079574 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file PARODUSlog.txt.0
210527-07:05:45.079657 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file PARODUSlog.txt.0
210527-07:05:45.079749 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.079830 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.080317 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.080436 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.080522 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.080662 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.080885 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.080967 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.081050 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.081144 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.081363 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.081445 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.081527 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.081610 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.081839 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.081921 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.082004 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.082086 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.082355 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.082437 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.082530 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.082613 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.082822 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.082902 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.082985 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.083066 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.083297 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.083379 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.083462 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.083544 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.083761 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.083842 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.083942 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.084025 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.084181 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.084264 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.084343 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.084427 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.084510 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.084590 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.084683 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 18859 for PARODUSlog.txt.0 to logSeekMap
210527-07:05:45.084768 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.084850 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.084929 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file WEBPAlog.txt.0
210527-07:05:45.085018 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file WEBPAlog.txt.0
210527-07:05:45.085099 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.085178 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.085778 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.085864 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.085944 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.086026 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.086116 [mod=T2, lvl=DEBUG] [tid=10812] Updating logseek after processPattern for WEBPAlog.txt.0
 210527-07:05:45.086196 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.086277 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 8586 for WEBPAlog.txt.0 to logSeekMap
210527-07:05:45.086362 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.086456 [mod=T2, lvl=DEBUG] [tid=10812] addToJson ++in
210527-07:05:45.086553 [mod=T2, lvl=DEBUG] [tid=10812] addToSearchResult ++in
210527-07:05:45.086633 [mod=T2, lvl=DEBUG] [tid=10812] addToSearchResult --out
210527-07:05:45.086712 [mod=T2, lvl=DEBUG] [tid=10812] addToJson --out
210527-07:05:45.086805 [mod=T2, lvl=DEBUG] [tid=10812] parseMarkerList --out
210527-07:05:45.086885 [mod=T2, lvl=DEBUG] [tid=10812] getDCAResultsInVector --out
210527-07:05:45.086964 [mod=T2, lvl=DEBUG] [tid=10812] getGrepResults --out
210527-07:05:45.087045 [mod=T2, lvl=INFO] [tid=10812] Grep complete for 41 markers
210527-07:05:45.087143 [mod=T2, lvl=DEBUG] [tid=10812] encodeGrepResultInJSON ++in
210527-07:05:45.087293 [mod=T2, lvl=DEBUG] [tid=10812] encodeGrepResultInJSON --Out
210527-07:05:45.087418 [mod=T2, lvl=DEBUG] [tid=10812] encodeEventMarkersInJSON ++in
210527-07:05:45.087516 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : bootuptime_ClientConnectComplete_split is 158
210527-07:05:45.087612 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : WIFI_INFO_clientdisconnect is 3
210527-07:05:45.087741 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : WIFI_ERROR_PSM_GetRecordFail is 4
210527-07:05:45.087829 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : WIFI_INFO_CosaWifiinit is 1
210527-07:05:45.087915 [mod=T2, lvl=DEBUG] [tid=10812] encodeEventMarkersInJSON --Out
210527-07:05:45.088004 [mod=T2, lvl=DEBUG] [tid=10812] prepareJSONReport ++in
210527-07:05:45.088175 [mod=T2, lvl=DEBUG] [tid=10812] prepareJSONReport --Out
210527-07:05:45.088369 [mod=T2, lvl=INFO] [tid=10812] cJSON Report = {"searchResult":[{"T2":"1.0"},{"Profile":"RDKB"},{"Time":"2021-05-27 07:05:43"},{"mac":"b8:27:eb:1b:56:4c"},{"erouterIpv4":"192.168.0.3"},{"erouterIpv6":""},{"PartnerId":"RDKM"},{"Version":"rdkb-generic-broadband-image_TDK_rdk-next_20210526115302"},{"AccountId":""},{"LT_split":"2021-05-27 07:05:44"},{"UPTIME_split":"934"},{"CMMAC_split":"B8:27:EB:1B:56:4C"},{"xwifi2g_split":"false"},{"xwifienable_split":"false"},{"2G_Radio_Status_split":"210527-07:05:45.088502 [mod=T2, lvl=INFO] [tid=10812] Report Size = 1170
210527-07:05:45.088623 [mod=T2, lvl=DEBUG] [tid=10812] sendReportOverHTTP ++in
210527-07:05:45.088726 [mod=T2, lvl=DEBUG] [tid=10812] setHeader ++in
210527-07:05:45.088809 [mod=T2, lvl=DEBUG] [tid=10812] setHeader DEST URL http://35.161.239.220/xconf/telemetry_upload.php
210527-07:05:45.091974 [mod=T2, lvl=DEBUG] [tid=10812] setHeader --out
210527-07:05:45.570388 [mod=T2, lvl=INFO] [tid=10812] Report Sent Successfully over HTTP : 200
210527-07:05:45.571061 [mod=T2, lvl=DEBUG] [tid=10812] sendReportOverHTTP --ou.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_ip_address_recovered","content":"sysevent_set_wr: ipv4_wan_ipaddr","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"RF_INFO_RDKB_FIREWALL_RESTART","content":"Triggering RDKB_FIREWALL_RESTART","type":"Consolelog.txt.0","pollingFrequency":"0"},{"header":"SYS_INFO_Factory_reset","content":"Reroot@RaspberryPi-Gateway:/rdklogs/logs# cat telemetry2_0.txt.0
210527-06:50:44.224195 [mod=T2, lvl=INFO] [tid=2480] Initializing Telemetry 2.0 Component
210527-06:50:44.226510 [mod=T2, lvl=DEBUG] [tid=2480] initTelemetry ++in
210527-06:50:44.226645 [mod=T2, lvl=DEBUG] [tid=2480] initReportProfiles ++in
210527-06:50:44.226775 [mod=T2, lvl=DEBUG] [tid=2480] initScheduler ++in
210527-06:50:44.226867 [mod=T2, lvl=DEBUG] [tid=2480] initScheduler --out
210527-06:50:44.226956 [mod=T2, lvl=DEBUG] [tid=2480] initT2MarkerComponentMap ++in
210527-06:50:44.227054 [mod=T2, lvl=DEBUG] [tid=2480] initT2MarkerComponentMap --out
210527-06:50:44.227137 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_Init ++in
210527-06:50:44.227253 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled ++in
210527-06:50:44.227507 [mod=T2, lvl=DEBUG] [tid=2480] RBUS mode active status = false
210527-06:50:44.227592 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled --out
210527-06:50:44.227673 [mod=T2, lvl=DEBUG] [tid=2480] Register event call back function T2ER_PushDataWithDelim
210527-06:50:44.227764 [mod=T2, lvl=DEBUG] [tid=2480] registerForTelemetryEvents ++in
210527-06:50:44.227870 [mod=T2, lvl=DEBUG] [tid=2480] busInit ++in
210527-06:50:44.227974 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled ++in
210527-06:50:44.228084 [mod=T2, lvl=DEBUG] [tid=2480] RBUS mode active status = false
210527-06:50:44.228167 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled --out
210527-06:50:44.228246 [mod=T2, lvl=DEBUG] [tid=2480] busInit --out
210527-06:50:44.228335 [mod=T2, lvl=DEBUG] [tid=2480] registerCcspT2EventListener ++in
210527-06:50:44.228417 [mod=T2, lvl=DEBUG] [tid=2480] CCSPInterface_Init ++in
210527-06:50:44.242998 [mod=T2, lvl=DEBUG] [tid=2480] CCSPInterface_Init --out
210527-06:50:44.245132 [mod=T2, lvl=INFO] [tid=2480] Registration with CCSP Bus successful, waiting for Telemetry Events from components...
210527-06:50:44.245330 [mod=T2, lvl=DEBUG] [tid=2480] registerCcspT2EventListener --out
210527-06:50:44.245440 [mod=T2, lvl=DEBUG] [tid=2480] registerForTelemetryEvents --out
210527-06:50:44.356471 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_Init --out
210527-06:50:44.356699 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_init ++in
210527-06:50:44.356829 [mod=T2, lvl=DEBUG] [tid=2480] fetchLocalConfigs ++in
210527-06:50:44.357081 [mod=T2, lvl=DEBUG] [tid=2480] Config file : /nvram/.t2persistentfolder/DCMresponse.txt
210527-06:50:44.357228 [mod=T2, lvl=INFO] [tid=2480] Filename : DCMresponse.txt Size : 11126
210527-06:50:44.357468 [mod=T2, lvl=DEBUG] [tid=2480] Config data size = 11126
210527-06:50:44.358279 [mod=T2, lvl=DEBUG] [tid=2480] Config data = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL":"h210527-06:50:44.358694 [mod=T2, lvl=INFO] [tid=2480] Returning 1 local configurations
210527-06:50:44.358823 [mod=T2, lvl=DEBUG] [tid=2480] fetchLocalConfigs --out
210527-06:50:44.358916 [mod=T2, lvl=DEBUG] [tid=2480] Processing config with name : DCMresponse.txt
210527-06:50:44.359020 [mod=T2, lvl=DEBUG] [tid=2480] Config Size = 11126
210527-06:50:44.359138 [mod=T2, lvl=DEBUG] [tid=2480] processConfigurationXConf ++in
210527-06:50:44.359872 [mod=T2, lvl=DEBUG] [tid=2480] config data = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL":"h210527-06:50:44.361926 [mod=T2, lvl=DEBUG] [tid=2480] profile name = RDKB-RPI-TEST
210527-06:50:44.362060 [mod=T2, lvl=DEBUG] [tid=2480] upload url = http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:44.362203 [mod=T2, lvl=DEBUG] [tid=2480] schedule = 2
210527-06:50:44.362285 [mod=T2, lvl=DEBUG] [tid=2480] marker count = 84
210527-06:50:44.362391 [mod=T2, lvl=INFO] [tid=2480] Received profile name : RDKB-RPI-TEST with interval of : 900 secs and upload url : http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:44.363169 [mod=T2, lvl=INFO] [tid=2480] Number of tr181params/markers successfully added in profile = 84
210527-06:50:44.363740 [mod=T2, lvl=DEBUG] [tid=2480] processConfigurationXConf --out
210527-06:50:44.363835 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_set ++in
210527-06:50:44.363992 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364088 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364197 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364294 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364389 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364502 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364602 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364703 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364804 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.364905 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365010 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365116 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365224 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365360 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365473 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365586 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365701 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.365820 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366031 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366159 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366291 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366421 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366554 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366692 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.366893 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367043 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367246 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367474 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367680 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.367811 [mod=T2, lvl=DEBUG] [tid=2480] Found a matching T2Marker
210527-06:50:44.367905 [mod=T2, lvl=DEBUG] [tid=2480] RDKB-RPI-TEST already present in eventlist of Total_online_clients_split . Ignore updates
210527-06:50:44.368117 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368339 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368577 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368812 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.368996 [mod=T2, lvl=DEBUG] [tid=2480] updateComponentList --out
210527-06:50:44.369127 [mod=T2, lvl=DEBUG] [tid=2480] registerProfileWithScheduler ++in : profile - RDKB-RPI-TEST
210527-06:50:44.369281 [mod=T2, lvl=INFO] [tid=2480] Starting TimeoutThread for profile : RDKB-RPI-TEST
210527-06:50:44.369610 [mod=T2, lvl=DEBUG] [tid=2480] registerProfileWithScheduler --out
210527-06:50:44.369716 [mod=T2, lvl=INFO] [tid=2480] Successfully set profile : RDKB-RPI-TEST
210527-06:50:44.369828 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_set --out
210527-06:50:44.369935 [mod=T2, lvl=DEBUG] [tid=2504] TimeoutThread ++in
210527-06:50:44.370145 [mod=T2, lvl=INFO] [tid=2504] Waiting for 900 sec for next TIMEOUT for profile - RDKB-RPI-TEST
210527-06:50:44.369943 [mod=T2, lvl=INFO] [tid=2480] Successfully set new profile: RDKB-RPI-TEST
210527-06:50:44.384757 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf_init --out
210527-06:50:44.384917 [mod=T2, lvl=DEBUG] [tid=2480] getParameterValue ++in
210527-06:50:44.385043 [mod=T2, lvl=DEBUG] [tid=2480] getCCSPParamVal ++in
210527-06:50:44.385178 [mod=T2, lvl=DEBUG] [tid=2480] ccspGetParameterValues ++in
210527-06:50:44.385275 [mod=T2, lvl=DEBUG] [tid=2480] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version
210527-06:50:44.393891 [mod=T2, lvl=DEBUG] [tid=2480] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.394110 [mod=T2, lvl=DEBUG] [tid=2480] findDestComponent --out
210527-06:50:44.394244 [mod=T2, lvl=DEBUG] [tid=2480] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.397406 [mod=T2, lvl=DEBUG] [tid=2480] ccspGetParameterValues --out
210527-06:50:44.397582 [mod=T2, lvl=DEBUG] [tid=2480] Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version = 2
210527-06:50:44.397708 [mod=T2, lvl=DEBUG] [tid=2480] getCCSPParamVal --out
210527-06:50:44.397794 [mod=T2, lvl=DEBUG] [tid=2480] getParameterValue --out
210527-06:50:44.397927 [mod=T2, lvl=DEBUG] [tid=2480] ProfileXConf is set
210527-06:50:44.398020 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled ++in
210527-06:50:44.398161 [mod=T2, lvl=DEBUG] [tid=2480] RBUS mode active status = false
210527-06:50:44.398258 [mod=T2, lvl=DEBUG] [tid=2480] isRbusEnabled --out
210527-06:50:44.398368 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_StartDispatchThread ++in
210527-06:50:44.398693 [mod=T2, lvl=DEBUG] [tid=2480] T2ER_StartDispatchThread --out
210527-06:50:44.398800 [mod=T2, lvl=DEBUG] [tid=2512] T2ER_EventDispatchThread ++in
210527-06:50:44.398931 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 0
210527-06:50:44.399016 [mod=T2, lvl=DEBUG] [tid=2512] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:44.398806 [mod=T2, lvl=DEBUG] [tid=2480] initReportProfiles --out
210527-06:50:44.400249 [mod=T2, lvl=INFO] [tid=2480] Init ReportProfiles Successful
210527-06:50:44.400369 [mod=T2, lvl=DEBUG] [tid=2480] initXConfClient ++in
210527-06:50:44.400490 [mod=T2, lvl=DEBUG] [tid=2480] startXConfClient ++in
210527-06:50:44.400962 [mod=T2, lvl=DEBUG] [tid=2480] startXConfClient --out
210527-06:50:44.401059 [mod=T2, lvl=DEBUG] [tid=2513] getUpdatedConfigurationThread ++in
210527-06:50:44.401179 [mod=T2, lvl=DEBUG] [tid=2513] getRemoteConfigURL ++in
210527-06:50:44.401336 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.401462 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.401580 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.401725 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL
210527-06:50:44.401078 [mod=T2, lvl=DEBUG] [tid=2480] initXConfClient --out
210527-06:50:44.402751 [mod=T2, lvl=INFO] [tid=2480] Init Xconf Client Success
210527-06:50:44.403713 [mod=T2, lvl=DEBUG] [tid=2480] initTelemetry --out
210527-06:50:44.403814 [mod=T2, lvl=DEBUG] [tid=2480] initTelemetry --out
210527-06:50:44.403907 [mod=T2, lvl=INFO] [tid=2480] Telemetry 2.0 Component Init Success
210527-06:50:44.404502 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.404643 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.404751 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.408259 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.408442 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL = https://xconf.rdkcentral.com:9092/loguploader/getT2Settings
210527-06:50:44.408533 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.408616 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.408719 [mod=T2, lvl=INFO] [tid=2513] Setting config URL base location to : https://xconf.rdkcentral.com:9092/loguploader/getT2Settings
210527-06:50:44.408803 [mod=T2, lvl=DEBUG] [tid=2513] getRemoteConfigURL --out
210527-06:50:44.408884 [mod=T2, lvl=DEBUG] [tid=2513] fetchRemoteConfiguration ++in
210527-06:50:44.408968 [mod=T2, lvl=DEBUG] [tid=2513] appendRequestParams ++in
210527-06:50:44.409073 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.409180 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.409284 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.409375 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC
210527-06:50:44.412200 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.412414 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.412521 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.417216 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.417385 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_COMCAST-COM_WAN_MAC = b8:27:eb:1b:56:4c
210527-06:50:44.417476 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.417558 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.417688 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.417773 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.417854 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.417937 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.SoftwareVersion
210527-06:50:44.422401 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.422576 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.422698 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.SoftwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.446401 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.446590 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.SoftwareVersion = rdkb-generic-broadband-image_TDK_rdk-next_20210526115302
210527-06:50:44.446709 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.446793 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.446880 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.446977 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.447059 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.447146 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.ModelName
210527-06:50:44.450205 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.450402 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.450495 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.ModelName, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.482267 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.482567 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.ModelName = RPI
210527-06:50:44.482709 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.482795 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.482913 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.483015 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.483101 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.483202 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId
210527-06:50:44.491006 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.491186 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.491275 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.493930 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.494096 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId = RDKM
210527-06:50:44.494189 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.494280 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.494410 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.494521 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.494639 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.494742 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID
210527-06:50:44.499092 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.499265 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.499373 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.502496 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.502698 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID =
210527-06:50:44.502818 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.502938 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.503045 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue ++in
210527-06:50:44.503143 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal ++in
210527-06:50:44.503249 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues ++in
210527-06:50:44.503368 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_CM_MAC
210527-06:50:44.510118 [mod=T2, lvl=DEBUG] [tid=2513] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-06:50:44.510291 [mod=T2, lvl=DEBUG] [tid=2513] findDestComponent --out
210527-06:50:44.510395 [mod=T2, lvl=DEBUG] [tid=2513] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_CM_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-06:50:44.555974 [mod=T2, lvl=DEBUG] [tid=2513] ccspGetParameterValues --out
210527-06:50:44.556186 [mod=T2, lvl=DEBUG] [tid=2513] Device.DeviceInfo.X_COMCAST-COM_CM_MAC = B8:27:EB:1B:56:4C
210527-06:50:44.556290 [mod=T2, lvl=DEBUG] [tid=2513] getCCSPParamVal --out
210527-06:50:44.556379 [mod=T2, lvl=DEBUG] [tid=2513] getParameterValue --out
210527-06:50:44.556661 [mod=T2, lvl=DEBUG] [tid=2513] appendRequestParams:216 Final http get URL if size 782 is :
 https://xconf.rdkcentral.com:9092/loguploader/getT2Settings?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_TDK_rdk-next_20210526115302&model=RPI&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2
210527-06:50:44.556829 [mod=T2, lvl=DEBUG] [tid=2513] appendRequestParams --out
210527-06:50:44.556912 [mod=T2, lvl=DEBUG] [tid=2513] doHttpGet ++in
210527-06:50:44.556995 [mod=T2, lvl=INFO] [tid=2513] doHttpGet with url https://xconf.rdkcentral.com:9092/loguploader/getT2Settings?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_TDK_rdk-next_20210526115302&model=RPI&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2
210527-06:50:44.722913 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:44.723097 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:44.723246 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:44.723418 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:44.723604 [mod=T2, lvl=DEBUG] [tid=2512] Received signal from T2ER_Push
210527-06:50:44.723692 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 1
210527-06:50:44.723824 [mod=T2, lvl=WARN] [tid=2512] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:44.723917 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 0
210527-06:50:44.724027 [mod=T2, lvl=DEBUG] [tid=2512] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:44.861693 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:44.861876 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : RF_ERROR_wan_restart<#=#>1
210527-06:50:44.861988 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : RF_ERROR_wan_restart eventValue : 1 to t2event queue
210527-06:50:44.862098 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:44.862271 [mod=T2, lvl=DEBUG] [tid=2512] Received signal from T2ER_Push
210527-06:50:44.862375 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 1
210527-06:50:44.862523 [mod=T2, lvl=WARN] [tid=2512] No Matching Profiles for event with MarkerName : RF_ERROR_wan_restart Value : 1 - Ignoring
210527-06:50:44.862617 [mod=T2, lvl=DEBUG] [tid=2512] Checking for events in event queue , event count = 0
210527-06:50:44.862713 [mod=T2, lvl=DEBUG] [tid=2512] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:45.733183 [mod=T2, lvl=INFO] [tid=2513] doHttpGet:320, T2:Telemetry XCONF communication success
210527-06:50:45.747311 [mod=T2, lvl=DEBUG] [tid=2513] doHttpGet --out
210527-06:50:45.747489 [mod=T2, lvl=DEBUG] [tid=2513] fetchRemoteConfiguration --out
210527-06:50:45.747576 [mod=T2, lvl=DEBUG] [tid=2513] Config received successfully from URL : https://xconf.rdkcentral.com:9092/loguploader/getT2Settings
210527-06:50:45.748496 [mod=T2, lvl=DEBUG] [tid=2513] Config received = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL210527-06:50:45.749017 [mod=T2, lvl=DEBUG] [tid=2513] processConfigurationXConf ++in
210527-06:50:45.749773 [mod=T2, lvl=DEBUG] [tid=2513] config data = {"urn:settings:GroupName":"RDKB-RPI-TEST","urn:settings:CheckOnReboot":true,"urn:settings:CheckSchedule:cron":"2 2 * * *","urn:settings:CheckSchedule:DurationMinutes":0,"urn:settings:LogUploadSettings:Message":null,"urn:settings:LogUploadSettings:Name":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:NumberOfDays":0,"urn:settings:LogUploadSettings:UploadRepositoryName":"RDKB-RPI-TEST","urn:settings:LogUploadSettings:UploadRepository:URL":"h210527-06:50:45.752717 [mod=T2, lvl=DEBUG] [tid=2513] profile name = RDKB-RPI-TEST
210527-06:50:45.752899 [mod=T2, lvl=DEBUG] [tid=2513] upload url = http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:45.752990 [mod=T2, lvl=DEBUG] [tid=2513] schedule = 2
210527-06:50:45.753074 [mod=T2, lvl=DEBUG] [tid=2513] marker count = 84
210527-06:50:45.753160 [mod=T2, lvl=INFO] [tid=2513] Received profile name : RDKB-RPI-TEST with interval of : 900 secs and upload url : http://35.161.239.220/xconf/telemetry_upload.php
210527-06:50:45.754081 [mod=T2, lvl=INFO] [tid=2513] Number of tr181params/markers successfully added in profile = 84
210527-06:50:45.755185 [mod=T2, lvl=DEBUG] [tid=2513] processConfigurationXConf --out
210527-06:50:45.755354 [mod=T2, lvl=INFO] [tid=2513] Profile exists already, updating the config in file system
210527-06:50:45.755447 [mod=T2, lvl=DEBUG] [tid=2513] saveConfigToFile ++in
210527-06:50:45.757114 [mod=T2, lvl=DEBUG] [tid=2513] saveConfigToFile --out
210527-06:50:45.757265 [mod=T2, lvl=DEBUG] [tid=2513] Disable and Delete old profile RDKB-RPI-TEST
210527-06:50:45.757368 [mod=T2, lvl=DEBUG] [tid=2513] ReportProfiles_deleteProfileXConf ++in
210527-06:50:45.757452 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf is set
210527-06:50:45.757540 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StopDispatchThread ++in
210527-06:50:45.757688 [mod=T2, lvl=DEBUG] [tid=2512] Received signal from T2ER_Push
210527-06:50:45.757791 [mod=T2, lvl=DEBUG] [tid=2512] T2ER_EventDispatchThread --out
210527-06:50:45.757976 [mod=T2, lvl=DEBUG] [tid=2513] flushCacheFromFile ++in
210527-06:50:45.758350 [mod=T2, lvl=DEBUG] [tid=2513] T2: Sending cache event : btime_moca_split<#=#>30
210527-06:50:45.758457 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim ++in
210527-06:50:45.758542 [mod=T2, lvl=DEBUG] [tid=2513] Received eventInfo : btime_moca_split<#=#>30
210527-06:50:45.758630 [mod=T2, lvl=DEBUG] [tid=2513] Adding eventName : btime_moca_split eventValue : 30 to t2event queue
210527-06:50:45.758732 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim --out
210527-06:50:45.758816 [mod=T2, lvl=DEBUG] [tid=2513] T2: Sending cache event : bootuptime_SNMPV2Ready_split<#=#>32
210527-06:50:45.758897 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim ++in
210527-06:50:45.758978 [mod=T2, lvl=DEBUG] [tid=2513] Received eventInfo : bootuptime_SNMPV2Ready_split<#=#>32
210527-06:50:45.759063 [mod=T2, lvl=DEBUG] [tid=2513] Adding eventName : bootuptime_SNMPV2Ready_split eventValue : 32 to t2event queue
210527-06:50:45.759145 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim --out
210527-06:50:45.759445 [mod=T2, lvl=DEBUG] [tid=2513] T2: Sending cache event : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:45.759559 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim ++in
210527-06:50:45.759643 [mod=T2, lvl=DEBUG] [tid=2513] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:45.759730 [mod=T2, lvl=DEBUG] [tid=2513] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:45.760031 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_PushDataWithDelim --out
210527-06:50:45.760494 [mod=T2, lvl=DEBUG] [tid=2513] fopen failed for /tmp/t2_atom_caching_file
210527-06:50:45.761094 [mod=T2, lvl=DEBUG] [tid=2513] flushCacheFromFile --out
210527-06:50:45.761251 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StopDispatchThread --out
210527-06:50:45.761352 [mod=T2, lvl=DEBUG] [tid=2513] clearT2MarkerComponentMap ++in
210527-06:50:45.761868 [mod=T2, lvl=DEBUG] [tid=2513] clearT2MarkerComponentMap --out
210527-06:50:45.761989 [mod=T2, lvl=DEBUG] [tid=2513] updateMarkerComponentMap ++in
210527-06:50:45.762073 [mod=T2, lvl=DEBUG] [tid=2513] updateMarkerComponentMap --out
210527-06:50:45.762166 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_delete ++in
210527-06:50:45.762266 [mod=T2, lvl=INFO] [tid=2513] removing profile : RDKB-RPI-TEST
210527-06:50:45.762502 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_delete --out
210527-06:50:45.762590 [mod=T2, lvl=DEBUG] [tid=2513] Set new profile : RDKB-RPI-TEST
210527-06:50:45.762951 [mod=T2, lvl=DEBUG] [tid=2513] ReportProfiles_setProfileXConf ++in
210527-06:50:45.763076 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_set ++in
210527-06:50:45.767168 [mod=T2, lvl=ERROR] [tid=2513] Component name list is not initialized . Re-initializing
210527-06:50:45.767419 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767541 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767657 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767775 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767874 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.767974 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768073 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768330 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768487 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768621 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768740 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768855 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.768971 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.769137 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.769253 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.770929 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.771069 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.771207 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.771441 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.771762 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.771942 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.772083 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.772241 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.772411 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.772644 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.772956 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773137 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773294 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773469 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.773610 [mod=T2, lvl=DEBUG] [tid=2513] Found a matching T2Marker
210527-06:50:45.773695 [mod=T2, lvl=DEBUG] [tid=2513] RDKB-RPI-TEST already present in eventlist of Total_online_clients_split . Ignore updates
210527-06:50:45.774410 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.774631 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.774800 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.774987 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.775328 [mod=T2, lvl=DEBUG] [tid=2513] updateComponentList --out
210527-06:50:45.775434 [mod=T2, lvl=DEBUG] [tid=2513] registerProfileWithScheduler ++in : profile - RDKB-RPI-TEST
210527-06:50:45.775542 [mod=T2, lvl=INFO] [tid=2513] Scheduler already assigned for profile RDKB-RPI-TEST , exiting .
210527-06:50:45.775624 [mod=T2, lvl=DEBUG] [tid=2513] registerProfileWithScheduler --out
210527-06:50:45.775705 [mod=T2, lvl=INFO] [tid=2513] Successfully set profile : RDKB-RPI-TEST
210527-06:50:45.775785 [mod=T2, lvl=DEBUG] [tid=2513] ProfileXConf_set --out
210527-06:50:45.775865 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StartDispatchThread ++in
210527-06:50:45.776072 [mod=T2, lvl=DEBUG] [tid=2513] T2ER_StartDispatchThread --out
210527-06:50:45.776116 [mod=T2, lvl=DEBUG] [tid=2806] T2ER_EventDispatchThread ++in
210527-06:50:45.776312 [mod=T2, lvl=DEBUG] [tid=2513] ReportProfiles_setProfileXConf --out
210527-06:50:45.776391 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 3
210527-06:50:45.776544 [mod=T2, lvl=INFO] [tid=2513] Successfully set new profile : RDKB-RPI-TEST
210527-06:50:45.776661 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : btime_moca_split Value : 30 - Ignoring
210527-06:50:45.776721 [mod=T2, lvl=DEBUG] [tid=2513] getUpdatedConfigurationThread --out
210527-06:50:45.776750 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 2
210527-06:50:45.776926 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : bootuptime_SNMPV2Ready_split Value : 32 - Ignoring
210527-06:50:45.777011 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:45.777148 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:45.777233 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:45.777325 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:47.890478 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:47.890740 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : btime_waninit_split<#=#>38
210527-06:50:47.890878 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : btime_waninit_split eventValue : 38 to t2event queue
210527-06:50:47.891062 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:47.891285 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:47.891387 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:47.891574 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : btime_waninit_split Value : 38 - Ignoring
210527-06:50:47.891681 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:47.891771 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:55.141136 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:55.141327 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:55.141422 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:55.141527 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:55.141669 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:55.141755 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:55.141886 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:55.141969 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:55.142048 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:55.903766 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:55.903975 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : btime_eth_split<#=#>46
210527-06:50:55.904092 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : btime_eth_split eventValue : 46 to t2event queue
210527-06:50:55.904205 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:55.904385 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:55.904480 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:55.904616 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : btime_eth_split Value : 46 - Ignoring
210527-06:50:55.904721 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:55.904804 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:50:56.103099 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:50:56.103339 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : SYS_SH_RDKB_FIREWALL_RESTART<#=#>1
210527-06:50:56.103435 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : SYS_SH_RDKB_FIREWALL_RESTART eventValue : 1 to t2event queue
210527-06:50:56.103565 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:50:56.103705 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:50:56.103791 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:50:56.103920 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : SYS_SH_RDKB_FIREWALL_RESTART Value : 1 - Ignoring
210527-06:50:56.104005 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:50:56.104084 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:04.031749 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:04.031940 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:04.032051 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:04.032161 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:04.032301 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:04.032388 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:04.032542 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:04.032626 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:04.032718 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:04.032805 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:04.032890 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 1
210527-06:51:04.032970 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:04.033062 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:04.033147 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:04.033227 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:04.405652 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:04.405769 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:04.405862 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:04.405966 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:04.406103 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:04.406190 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:04.406316 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:04.406412 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:04.406493 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:04.406574 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:04.406659 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 2
210527-06:51:04.406737 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:04.406817 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:04.406899 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:04.406980 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:05.996497 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:05.996640 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:05.996797 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:05.996903 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:05.997036 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:05.997122 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:05.997251 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:05.997333 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:05.997414 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:05.997495 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:05.997581 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 3
210527-06:51:05.997661 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:05.997740 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:05.997836 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:05.997917 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:06.142735 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:06.142882 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_ERROR_PSM_GetRecordFail<#=#>1
210527-06:51:06.142977 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_ERROR_PSM_GetRecordFail eventValue : 1 to t2event queue
210527-06:51:06.143088 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:06.143230 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:06.143345 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:06.143495 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_ERROR_PSM_GetRecordFail value : 1
210527-06:51:06.143607 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:06.143709 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:06.143835 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:06.143935 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 4
210527-06:51:06.144020 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:06.144099 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:06.144186 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:06.144283 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:06.804651 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:06.804836 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_CosaWifiinit<#=#>1
210527-06:51:06.804949 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_CosaWifiinit eventValue : 1 to t2event queue
210527-06:51:06.805112 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:06.805274 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:06.805375 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:06.805501 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_CosaWifiinit value : 1
210527-06:51:06.805599 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:51:06.805682 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:51:06.805767 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:51:06.805852 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 1
210527-06:51:06.805931 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:51:06.806032 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:51:06.806116 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:06.806267 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:51:07.121048 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:51:07.121249 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : bootuptime_wifi_split<#=#>57
210527-06:51:07.121345 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : bootuptime_wifi_split eventValue : 57 to t2event queue
210527-06:51:07.121450 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:51:07.121591 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:51:07.121677 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:51:07.121806 [mod=T2, lvl=WARN] [tid=2806] No Matching Profiles for event with MarkerName : bootuptime_wifi_split Value : 57 - Ignoring
210527-06:51:07.121891 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:51:07.121986 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:52:48.327283 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:52:48.327453 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : bootuptime_ClientConnectComplete_split<#=#>158
210527-06:52:48.327610 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : bootuptime_ClientConnectComplete_split eventValue : 158 to t2event queue
210527-06:52:48.327782 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:52:48.327936 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:52:48.328048 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:52:48.328246 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : bootuptime_ClientConnectComplete_split value : 158
210527-06:52:48.328353 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:52:48.328443 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:52:48.328537 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:52:48.328622 [mod=T2, lvl=DEBUG] [tid=2806] New marker value saved : 158
210527-06:52:48.328702 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:52:48.328781 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:52:48.328865 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:52:48.328944 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:53:48.952569 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:53:48.952792 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_clientdisconnect<#=#>1
210527-06:53:48.952899 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_clientdisconnect eventValue : 1 to t2event queue
210527-06:53:48.953031 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:53:48.953241 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:53:48.953353 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:53:48.953550 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_clientdisconnect value : 1
210527-06:53:48.953690 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:53:48.953822 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:53:48.953916 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:53:48.954000 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 1
210527-06:53:48.954080 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:53:48.954169 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:53:48.954299 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:53:48.954433 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:55:50.562218 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:55:50.562399 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_clientdisconnect<#=#>1
210527-06:55:50.562502 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_clientdisconnect eventValue : 1 to t2event queue
210527-06:55:50.562605 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:55:50.562643 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:55:50.562893 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:55:50.563036 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_clientdisconnect value : 1
210527-06:55:50.563126 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:55:50.563214 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:55:50.563303 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:55:50.563401 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 2
210527-06:55:50.563481 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:55:50.563561 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:55:50.563644 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:55:50.563724 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-06:56:50.182976 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim ++in
210527-06:56:50.183138 [mod=T2, lvl=DEBUG] [tid=2486] Received eventInfo : WIFI_INFO_clientdisconnect<#=#>1
210527-06:56:50.183238 [mod=T2, lvl=DEBUG] [tid=2486] Adding eventName : WIFI_INFO_clientdisconnect eventValue : 1 to t2event queue
210527-06:56:50.183342 [mod=T2, lvl=DEBUG] [tid=2486] T2ER_PushDataWithDelim --out
210527-06:56:50.183381 [mod=T2, lvl=DEBUG] [tid=2806] Received signal from T2ER_Push
210527-06:56:50.183497 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 1
210527-06:56:50.183632 [mod=T2, lvl=DEBUG] [tid=2806] Found matching profileIDs for event with markerName : WIFI_INFO_clientdisconnect value : 1
210527-06:56:50.183716 [mod=T2, lvl=DEBUG] [tid=2806] Storing in profile : RDKB-RPI-TEST
210527-06:56:50.183797 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent ++in
210527-06:56:50.183880 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent ++in
210527-06:56:50.183984 [mod=T2, lvl=DEBUG] [tid=2806] Increment marker count to : 3
210527-06:56:50.184064 [mod=T2, lvl=DEBUG] [tid=2806] ProfileXConf_storeMarkerEvent --out
210527-06:56:50.184142 [mod=T2, lvl=DEBUG] [tid=2806] ReportProfiles_storeMarkerEvent --out
210527-06:56:50.184225 [mod=T2, lvl=DEBUG] [tid=2806] Checking for events in event queue , event count = 0
210527-06:56:50.184304 [mod=T2, lvl=DEBUG] [tid=2806] Event Queue size is 0, Waiting events from T2ER_Push
210527-07:05:44.000155 [mod=T2, lvl=INFO] [tid=2504] TIMEOUT for profile - RDKB-RPI-TEST
210527-07:05:44.000380 [mod=T2, lvl=INFO] [tid=2504] ReportProfiles_TimeoutCb ++in
210527-07:05:44.000479 [mod=T2, lvl=DEBUG] [tid=2504] ProfileXConf_notifyTimeout ++in
210527-07:05:44.000763 [mod=T2, lvl=DEBUG] [tid=2504] ProfileXConf_notifyTimeout --out
210527-07:05:44.000840 [mod=T2, lvl=INFO] [tid=10812] CollectAndReportXconf ++in profileName : RDKB-RPI-TEST
210527-07:05:44.000850 [mod=T2, lvl=INFO] [tid=2504] ReportProfiles_TimeoutCb --out
210527-07:05:44.001026 [mod=T2, lvl=INFO] [tid=2504] Waiting for 900 sec for next TIMEOUT for profile - RDKB-RPI-TEST
210527-07:05:44.001185 [mod=T2, lvl=DEBUG] [tid=10812] getProfileParameterValues ++in
210527-07:05:44.001289 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPProfileParamValues ++in
210527-07:05:44.001381 [mod=T2, lvl=INFO] [tid=10812] TR-181 Param count : 7
210527-07:05:44.001469 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.001552 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC
210527-07:05:44.003602 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.003719 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.003805 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.005938 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.006072 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.006158 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_IP
210527-07:05:44.007953 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.008067 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.008169 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_IP, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.010227 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.010346 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.010430 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_WAN_IPv6
210527-07:05:44.012460 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.012606 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.012693 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_WAN_IPv6, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.014713 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.014833 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.014920 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId
210527-07:05:44.016763 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.016881 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.016969 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.PartnerId, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.019001 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.019121 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.019207 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.SoftwareVersion
210527-07:05:44.021236 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.021362 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.021452 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.SoftwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.035007 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.035167 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.035253 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID
210527-07:05:44.037183 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.037302 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.037454 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.AccountInfo.AccountID, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.039472 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.039596 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.039682 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.Time.CurrentLocalTime
210527-07:05:44.041650 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.041776 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.041865 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.Time.CurrentLocalTime, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.074549 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.074704 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPProfileParamValues --Out
210527-07:05:44.074789 [mod=T2, lvl=DEBUG] [tid=10812] getProfileParameterValues --Out
210527-07:05:44.074870 [mod=T2, lvl=INFO] [tid=10812] Fetch complete for TR-181 Object/Parameter Values for parameters
210527-07:05:44.074990 [mod=T2, lvl=DEBUG] [tid=10812] encodeParamResultInJSON ++in
210527-07:05:44.075080 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : mac valueCount = 1
210527-07:05:44.075193 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : erouterIpv4 valueCount = 1
210527-07:05:44.075282 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : erouterIpv6 valueCount = 1
210527-07:05:44.075369 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : PartnerId valueCount = 1
210527-07:05:44.075454 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : Version valueCount = 1
210527-07:05:44.075540 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : AccountId valueCount = 1
210527-07:05:44.075641 [mod=T2, lvl=DEBUG] [tid=10812] Parameter Name : LT_split valueCount = 1
210527-07:05:44.075725 [mod=T2, lvl=DEBUG] [tid=10812] encodeParamResultInJSON --Out
210527-07:05:44.075806 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.075905 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.075986 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076067 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076146 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076228 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076307 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076389 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076468 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076550 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076629 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076718 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076797 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues ++in
210527-07:05:44.076881 [mod=T2, lvl=DEBUG] [tid=10812] freeProfileValues --Out
210527-07:05:44.076974 [mod=T2, lvl=DEBUG] [tid=10812] getGrepResults ++in
210527-07:05:44.077063 [mod=T2, lvl=DEBUG] [tid=10812] getDCAResultsInVector ++in
210527-07:05:44.077162 [mod=T2, lvl=DEBUG] [tid=10812] initProperties ++in
210527-07:05:44.077377 [mod=T2, lvl=DEBUG] [tid=10812] updateIncludeConfVal ++in
210527-07:05:44.077577 [mod=T2, lvl=DEBUG] [tid=10812] updateIncludeConfVal --out
210527-07:05:44.077682 [mod=T2, lvl=DEBUG] [tid=10812] initProperties --out
210527-07:05:44.077768 [mod=T2, lvl=DEBUG] [tid=10812] parseMarkerList ++in
210527-07:05:44.077854 [mod=T2, lvl=DEBUG] [tid=10812] vMarkerList for profile RDKB-RPI-TEST is of count = 41
210527-07:05:44.077940 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekMapForProfile ++in
210527-07:05:44.078073 [mod=T2, lvl=DEBUG] [tid=10812] Get profileseek map for RDKB-RPI-TEST
210527-07:05:44.078154 [mod=T2, lvl=DEBUG] [tid=10812] Profile seek map doesn't exist, creating one ...
210527-07:05:44.078240 [mod=T2, lvl=DEBUG] [tid=10812] profileSeekMap count 0
210527-07:05:44.078328 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekMapForProfile --out
210527-07:05:44.078409 [mod=T2, lvl=DEBUG] [tid=10812] logSeekMap is null, add logSeekMap for RDKB-RPI-TEST
210527-07:05:44.078495 [mod=T2, lvl=DEBUG] [tid=10812] addToProfileSeekMap ++in for profileName = RDKB-RPI-TEST
210527-07:05:44.078576 [mod=T2, lvl=DEBUG] [tid=10812] Adding GrepSeekProfile for profile RDKB-RPI-TEST in profileSeekMap
210527-07:05:44.078667 [mod=T2, lvl=DEBUG] [tid=10812] addToProfileSeekMap --out
210527-07:05:44.079089 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.079178 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects ++in
210527-07:05:44.079269 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.079356 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.079436 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.079517 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.UpTime
210527-07:05:44.081727 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.081863 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.081951 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.UpTime, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.084014 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.084125 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.UpTime = 934
210527-07:05:44.084213 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.084294 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.084389 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.084492 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.084585 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.084666 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.084746 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.084828 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST-COM_CM_MAC
210527-07:05:44.086695 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.086811 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.086899 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST-COM_CM_MAC, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.106190 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.106363 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.X_COMCAST-COM_CM_MAC = B8:27:EB:1B:56:4C
210527-07:05:44.106454 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.106536 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.106618 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.106699 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.106781 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.106860 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.106941 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.107023 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.108916 [mod=T2, lvl=ERROR] [tid=10812] Failed to get component for Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS ret: 204
210527-07:05:44.109025 [mod=T2, lvl=ERROR] [tid=10812] Unable to find supporting component for parameter : Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.109167 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.109251 [mod=T2, lvl=ERROR] [tid=10812] Unable to get Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.109331 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.109412 [mod=T2, lvl=DEBUG] [tid=10812] Telemetry data source not found. Type = <message_bus>. Content string = Device.DeviceInfo.X_RDKCENTRAL-COM_EnableXDNS
210527-07:05:44.109494 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.109573 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.109653 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.109734 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.SSID.5.Enable
210527-07:05:44.111634 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.111768 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.111856 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.SSID.5.Enable, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.113744 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.113845 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.SSID.5.Enable = false
210527-07:05:44.113932 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.114013 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.114093 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.114173 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.114255 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.114334 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.114415 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.114508 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable
210527-07:05:44.116339 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.116455 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.116542 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.118521 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.118629 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.X_COMCAST_COM_xfinitywifiEnable = false
210527-07:05:44.118717 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.118798 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.118879 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.118976 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.119057 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.119137 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.119217 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.119298 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.1.Status
210527-07:05:44.121226 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.121345 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.121432 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.1.Status, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.151756 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.151905 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.1.Status = Up
210527-07:05:44.152058 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.152141 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.152223 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.152404 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.152491 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.152572 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.152652 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.152733 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.2.Status
210527-07:05:44.154799 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.154916 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.155005 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.2.Status, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.185642 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.185792 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.2.Status = Up
210527-07:05:44.185882 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.185963 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.186044 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.186227 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.186316 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.186397 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.186478 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.186560 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.HardwareVersion
210527-07:05:44.188560 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.188691 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.188780 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.HardwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.202859 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.203016 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.HardwareVersion =  a020d3
210527-07:05:44.203107 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.203189 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.203371 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.203458 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.203541 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.203622 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.203716 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.203799 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.FirstUseDate
210527-07:05:44.205906 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.206019 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.206107 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.FirstUseDate, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.208435 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.208558 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.FirstUseDate = 2013-11-22T00:00:00
210527-07:05:44.208648 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.208729 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.208966 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.209058 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.209142 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.209222 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.209302 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.209384 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.2.AutoChannelEnable
210527-07:05:44.211659 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.211792 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.211881 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.2.AutoChannelEnable, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.213861 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.213985 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.2.AutoChannelEnable = false
210527-07:05:44.214074 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.214157 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.214238 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.214319 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.214402 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.214482 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.214744 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.214830 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor
210527-07:05:44.216751 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.216870 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.217069 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.671877 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.672030 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.2.Stats.X_COMCAST-COM_NoiseFloor = -99
210527-07:05:44.672120 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.672222 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.672304 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.672387 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.672468 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects --out
210527-07:05:44.672548 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.672632 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list UPTIME_split : 934
210527-07:05:44.672744 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list CMMAC_split : B8:27:EB:1B:56:4C
210527-07:05:44.672829 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list xwifi2g_split : false
210527-07:05:44.672913 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list xwifienable_split : false
210527-07:05:44.672996 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list 2G_Radio_Status_split : Up
210527-07:05:44.673079 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list 5G_Radio_Status_split : Up
210527-07:05:44.673164 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list HWREV_split :  a020d3
210527-07:05:44.673247 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list FT_split : 2013-11-22T00:00:00
210527-07:05:44.673330 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list WIFI_ACS_2_split : false
210527-07:05:44.673413 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list WIFI_NF_2_split : -99
210527-07:05:44.673492 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.673720 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.673816 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.673898 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects ++in
210527-07:05:44.673980 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.674059 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.674139 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.674220 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor
210527-07:05:44.676175 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.wifi destPath = /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.676293 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.676382 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.wifi and path /com/cisco/spvtg/ccsp/wifi
210527-07:05:44.958291 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.958483 [mod=T2, lvl=DEBUG] [tid=10812] Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor = -99
210527-07:05:44.958575 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.958657 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.958738 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.958819 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.958901 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue ++in
210527-07:05:44.958980 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal ++in
210527-07:05:44.959060 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues ++in
210527-07:05:44.959141 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent ++in for paramName : Device.DeviceInfo.HardwareVersion
210527-07:05:44.961528 [mod=T2, lvl=DEBUG] [tid=10812] destCompName = eRT.com.cisco.spvtg.ccsp.pam destPath = /com/cisco/spvtg/ccsp/pam
210527-07:05:44.961673 [mod=T2, lvl=DEBUG] [tid=10812] findDestComponent --out
210527-07:05:44.961781 [mod=T2, lvl=DEBUG] [tid=10812] Calling CcspBaseIf_getParameterValues for : Device.DeviceInfo.HardwareVersion, paramCount : 1 Destination name : eRT.com.cisco.spvtg.ccsp.pam and path /com/cisco/spvtg/ccsp/pam
210527-07:05:44.975552 [mod=T2, lvl=DEBUG] [tid=10812] ccspGetParameterValues --out
210527-07:05:44.975723 [mod=T2, lvl=DEBUG] [tid=10812] Device.DeviceInfo.HardwareVersion =  a020d3
210527-07:05:44.975814 [mod=T2, lvl=DEBUG] [tid=10812] getCCSPParamVal --out
210527-07:05:44.975896 [mod=T2, lvl=DEBUG] [tid=10812] getParameterValue --out
210527-07:05:44.975977 [mod=T2, lvl=DEBUG] [tid=10812] appendData ++in
210527-07:05:44.976058 [mod=T2, lvl=DEBUG] [tid=10812] appendData --out
210527-07:05:44.976139 [mod=T2, lvl=DEBUG] [tid=10812] processTr181Objects --out
210527-07:05:44.976218 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.976301 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list WIFI_NF_1_split : -99
210527-07:05:44.976395 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list HWREV_split :  a020d3
210527-07:05:44.976476 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.976566 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.976658 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.976763 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:44.976847 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 0 for <message_bus> to logSeekMap
210527-07:05:44.976930 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:44.977010 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:44.977090 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file ArmConsolelog.txt.0
210527-07:05:44.977183 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file ArmConsolelog.txt.0
210527-07:05:44.977263 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:44.977394 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:44.984781 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:44.984899 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.985082 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.985173 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.985296 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.985379 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:44.985462 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 38348 for ArmConsolelog.txt.0 to logSeekMap
210527-07:05:44.985548 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:44.985629 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:44.985709 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file BootTime.log
210527-07:05:44.985793 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file BootTime.log
210527-07:05:44.985883 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:44.985964 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:44.986359 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:44.986446 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:44.986530 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list bootuptime_wifi_split : 63
210527-07:05:44.986613 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list bootuptime_Ethernet_split : 57
210527-07:05:44.986697 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_moca_split : 28
210527-07:05:44.986779 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list bootuptime_SNMPV2Ready_split : =31
210527-07:05:44.986867 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_laninit_split : 39
210527-07:05:44.986951 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_waninit_split : 38
210527-07:05:44.987054 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list SYS_INFO_Factory_reset : 1
210527-07:05:44.987135 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:44.987338 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:44.987446 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:44.987527 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:44.987609 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 497 for BootTime.log to logSeekMap
210527-07:05:44.987692 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:44.987772 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:44.987851 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file Consolelog.txt.0
210527-07:05:44.987934 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file Consolelog.txt.0
210527-07:05:44.988013 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:44.988092 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.064220 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.064383 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.064474 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list SYS_INFO_CaptivePortal : 3
210527-07:05:45.064560 [mod=T2, lvl=DEBUG] [tid=10812] Adding STR to result list btime_wcpenter_split : 77
210527-07:05:45.064648 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list SYS_SH_RDKB_FIREWALL_RESTART : 1
210527-07:05:45.064735 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list RF_INFO_RDKB_FIREWALL_RESTART : 17
210527-07:05:45.064816 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.064926 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.065017 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.065099 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.065180 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 441769 for Consolelog.txt.0 to logSeekMap
210527-07:05:45.065327 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.065410 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.065491 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file LM.txt.0
210527-07:05:45.065573 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file LM.txt.0
210527-07:05:45.065666 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.065745 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.067941 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.068029 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.068111 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.068195 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.068285 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.068366 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.068465 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 42121 for LM.txt.0 to logSeekMap
210527-07:05:45.068551 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.068632 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.068711 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file PAMlog.txt.0
210527-07:05:45.068794 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file PAMlog.txt.0
210527-07:05:45.068874 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.068953 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.078693 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.078796 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.078887 [mod=T2, lvl=DEBUG] [tid=10812] Adding OCCURENCE to result list PAM : 299
210527-07:05:45.078968 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.079066 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.079165 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.079247 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.079328 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 207823 for PAMlog.txt.0 to logSeekMap
210527-07:05:45.079413 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.079494 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.079574 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file PARODUSlog.txt.0
210527-07:05:45.079657 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file PARODUSlog.txt.0
210527-07:05:45.079749 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.079830 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.080317 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.080436 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.080522 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.080662 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.080885 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.080967 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.081050 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.081144 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.081363 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.081445 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.081527 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.081610 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.081839 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.081921 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.082004 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.082086 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.082355 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.082437 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.082530 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.082613 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.082822 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.082902 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.082985 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.083066 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.083297 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.083379 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.083462 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.083544 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.083761 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes ++in
210527-07:05:45.083842 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode ++in
210527-07:05:45.083942 [mod=T2, lvl=DEBUG] [tid=10812] getErrorCode --out
210527-07:05:45.084025 [mod=T2, lvl=DEBUG] [tid=10812] handleRDKErrCodes --out
210527-07:05:45.084181 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.084264 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.084343 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.084427 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.084510 [mod=T2, lvl=DEBUG] [tid=10812] processPattern ++in
210527-07:05:45.084590 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.084683 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 18859 for PARODUSlog.txt.0 to logSeekMap
210527-07:05:45.084768 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.084850 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern ++in
210527-07:05:45.084929 [mod=T2, lvl=DEBUG] [tid=10812] Read from log file WEBPAlog.txt.0
210527-07:05:45.085018 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue ++in for file WEBPAlog.txt.0
210527-07:05:45.085099 [mod=T2, lvl=DEBUG] [tid=10812] data is null .. Setting seek value to 0 from getLogSeekValue
210527-07:05:45.085178 [mod=T2, lvl=DEBUG] [tid=10812] getLogSeekValue --out
210527-07:05:45.085778 [mod=T2, lvl=DEBUG] [tid=10812] processCountPattern --out
210527-07:05:45.085864 [mod=T2, lvl=DEBUG] [tid=10812] addToVector ++in
210527-07:05:45.085944 [mod=T2, lvl=DEBUG] [tid=10812] addToVector --out
210527-07:05:45.086026 [mod=T2, lvl=DEBUG] [tid=10812] processPattern --out
210527-07:05:45.086116 [mod=T2, lvl=DEBUG] [tid=10812] Updating logseek after processPattern for WEBPAlog.txt.0
 210527-07:05:45.086196 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek ++in
210527-07:05:45.086277 [mod=T2, lvl=DEBUG] [tid=10812] Adding seekvalue of 8586 for WEBPAlog.txt.0 to logSeekMap
210527-07:05:45.086362 [mod=T2, lvl=DEBUG] [tid=10812] updateLogSeek --out
210527-07:05:45.086456 [mod=T2, lvl=DEBUG] [tid=10812] addToJson ++in
210527-07:05:45.086553 [mod=T2, lvl=DEBUG] [tid=10812] addToSearchResult ++in
210527-07:05:45.086633 [mod=T2, lvl=DEBUG] [tid=10812] addToSearchResult --out
210527-07:05:45.086712 [mod=T2, lvl=DEBUG] [tid=10812] addToJson --out
210527-07:05:45.086805 [mod=T2, lvl=DEBUG] [tid=10812] parseMarkerList --out
210527-07:05:45.086885 [mod=T2, lvl=DEBUG] [tid=10812] getDCAResultsInVector --out
210527-07:05:45.086964 [mod=T2, lvl=DEBUG] [tid=10812] getGrepResults --out
210527-07:05:45.087045 [mod=T2, lvl=INFO] [tid=10812] Grep complete for 41 markers
210527-07:05:45.087143 [mod=T2, lvl=DEBUG] [tid=10812] encodeGrepResultInJSON ++in
210527-07:05:45.087293 [mod=T2, lvl=DEBUG] [tid=10812] encodeGrepResultInJSON --Out
210527-07:05:45.087418 [mod=T2, lvl=DEBUG] [tid=10812] encodeEventMarkersInJSON ++in
210527-07:05:45.087516 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : bootuptime_ClientConnectComplete_split is 158
210527-07:05:45.087612 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : WIFI_INFO_clientdisconnect is 3
210527-07:05:45.087741 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : WIFI_ERROR_PSM_GetRecordFail is 4
210527-07:05:45.087829 [mod=T2, lvl=DEBUG] [tid=10812] Marker value for : WIFI_INFO_CosaWifiinit is 1
210527-07:05:45.087915 [mod=T2, lvl=DEBUG] [tid=10812] encodeEventMarkersInJSON --Out
210527-07:05:45.088004 [mod=T2, lvl=DEBUG] [tid=10812] prepareJSONReport ++in
210527-07:05:45.088175 [mod=T2, lvl=DEBUG] [tid=10812] prepareJSONReport --Out
210527-07:05:45.088369 [mod=T2, lvl=INFO] [tid=10812] cJSON Report = {"searchResult":[{"T2":"1.0"},{"Profile":"RDKB"},{"Time":"2021-05-27 07:05:43"},{"mac":"b8:27:eb:1b:56:4c"},{"erouterIpv4":"192.168.0.3"},{"erouterIpv6":""},{"PartnerId":"RDKM"},{"Version":"rdkb-generic-broadband-image_TDK_rdk-next_20210526115302"},{"AccountId":""},{"LT_split":"2021-05-27 07:05:44"},{"UPTIME_split":"934"},{"CMMAC_split":"B8:27:EB:1B:56:4C"},{"xwifi2g_split":"false"},{"xwifienable_split":"false"},{"2G_Radio_Status_split":"210527-07:05:45.088502 [mod=T2, lvl=INFO] [tid=10812] Report Size = 1170
210527-07:05:45.088623 [mod=T2, lvl=DEBUG] [tid=10812] sendReportOverHTTP ++in
210527-07:05:45.088726 [mod=T2, lvl=DEBUG] [tid=10812] setHeader ++in
210527-07:05:45.088809 [mod=T2, lvl=DEBUG] [tid=10812] setHeader DEST URL http://35.161.239.220/xconf/telemetry_upload.php
210527-07:05:45.091974 [mod=T2, lvl=DEBUG] [tid=10812] setHeader --out
210527-07:05:45.570388 [mod=T2, lvl=INFO] [tid=10812] Report Sent Successfully over HTTP : 200
210527-07:05:45.571061 [mod=T2, lvl=DEBUG] [tid=10812] sendReportOverHTTP --out

$ cat /rdklogs/logs/dcmscript.log

Log upload onto HTTPS Server

Verify that Json file displayed in HTTPS server → https://xconf.rdkcentral.com/xconf/upload/display.php?mode=telemetry

JSON file upload

open the uploaded json file and ensure the parameters

https://xconf.rdkcentral.com/xconf/upload/b827eb1b564c_TELE_05-26-2021-07-45AM.json

https://xconf.rdkcentral.com/xconf/upload/e45f010d7886_TELE_01-03-2023-09-35AM.json

Telemetry Version : 2.0.1 – Multiprofile

Pre– requisites for enabling Telemetry2_0

Telemetry Version : 2.0.1 (by default telemetry version as 1)

Below are the steps for enabling telemetry 2.0.1 in rpi,
1. dmcli eRT setv Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Enable bool true
2. dmcli eRT setv Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.Version string 2.0.1
3. dmcli eRT setv Device.DeviceInfo.X_RDKCENTRAL-COM_RFC.Feature.Telemetry.ConfigURL string https://xconf.rdkcentral.com:19092/loguploader/getT2Settings
4. touch /nvram/enable_t2_debug
5. reboot the device
6. pidof “telemetry2_0” – check the running status of telemetry2

7. T2 DataModel will be loaded

After board boot up, disable log rotation by using the command:

$ systemctl disable rdkbLogMonitor

Below screenshot for enabling the T2 process of version 2.0.1 in rpi,

After reboot the device,

Telemetry 2.0 Report Profiles

Telemetry 2 brings multi-profile support to RDK telemetry. This allows for multiple report profiles to be active on a device at one time, each with their own data and reporting configuration. Specific profiles may be targeted to data for specific purposes, such as WiFi Happiness, Deviceinfo information or many other areas. Telemetry 2.0 Report Profiles are supported along with legacy Telemetry 1.0/1.1 configurations, so that T2.0 Report Profiles can be actively added and removed without disturbing legacy telemetry.

In addition, Telemetry 2 adds support for RDK Components to send their telemetry data to the T2 component for reporting. This allows for moving away from the CPU-intensive process of searching through log files for telemetry strings.

Telemetry 2.0 allows for an RDK device to be updated with a set of T2 profiles at any time.

T2 DataModel

There are 2 parameters under T2 report profiles,

S.NO	DM	Description
1	Device.X_RDKCENTRAL-COM_T2.ReportProfiles	Value must be JSON configuration blob in string
2	Device.X_RDKCENTRAL-COM_T2.ReportProfilesMsgPack	Value must be JSON configuration blob in base 64 encoded msgpack format

DMCLI SET Command for T2 Report Profile

dmcli command Expand source

dmcli eRT setv Device.X_RDKCENTRAL-COM_T2.ReportProfiles string '{"profiles":[{"name":"RDKB_CCSPWiFi_Profile","hash":"hash1","value":{"Name":"RDKB_CCSPWifi_Profile","Description":"Report to check WiFi Parameters","Version":"1","Protocol":"HTTP","EncodingType":"JSON","ReportingInterval":180,"TimeReference":"0001-01-01T00:00:00Z","ActivationTimeOut":1800,"Parameter":[{"type":"dataModel","reference":"Profile.Name"},{"type":"dataModel","reference":"Profile.Version"},{"type":"dataModel","reference":"Device.WiFi.Radio.1.Stats.X_COMCAST-COM_NoiseFloor"},{"type":"event","eventName":"2GclientMac_split","component":"wifihealth","use":"absolute"},{"type":"event","eventName":"5GclientMac_split","component":"wifihealth","use":"absolute"},{"type":"event","name":"wifiradio WIFI_COUNT","eventName":"WIFI_MAC_1_TOTAL_COUNT:0","component":"wifiradio","use":"count","reportEmpty":false},{"type":"dataModel","name":"UPTIME","reference":"Device.DeviceInfo.UpTime","use":"absolute"}],"HTTP":{"URL":"https://xconf.rdkcentral.com/xconf/telemetry_upload.php","Compression":"None","Method":"POST","RequestURIParameter":[{"Name":"deviceId","Reference":"Device.DeviceInfo.X_COMCAST-COM_CM_MAC"},{"Name":"reportName","Reference":"Profile.Name"}]},"JSONEncoding":{"ReportFormat":"NameValuePair","ReportTimestamp":"None"}}},{"name":"RDKB_SelfHeal_Profile","hash":"hash2","value":{"Name":"RDKB_SelfHeal_Profile","Description":"Report to check SelfHeal Parameters","Version":"2","Protocol":"HTTP","EncodingType":"JSON","ReportingInterval":180,"TimeReference":"0001-01-01T00:00:00Z","ActivationTimeOut":1800,"Parameter":[{"type":"dataModel","reference":"Profile.Name"},{"type":"dataModel","reference":"Profile.Version"},{"type":"dataModel","name":"UPTIME","reference":"Device.DeviceInfo.UpTime","use":"absolute"},{"type":"dataModel","reference":"Device.DeviceInfo.UpTime","use":"absolute"},{"type":"event","eventName":"SYS_ERROR_AdvSecurity_NotRunning","component":"SELF_HEAL","use":"absolute"},{"type":"event","eventName":"SYS_SH_lighttpdCrash","component":"test-and-diagnostic","use":"count","reportEmpty":false},{"type":"dataModel","name":"WAN_SSH_STATUS","reference":"Device.DeviceInfo.X_RDKCENTRAL-COM_Syndication.WANsideSSH.Enable","use":"absolute"}],"HTTP":{"URL":"https://xconf.rdkcentral.com/xconf/telemetry_upload.php","Compression":"None","Method":"POST","RequestURIParameter":[{"Name":"deviceId","Reference":"Device.DeviceInfo.X_COMCAST-COM_CM_MAC"},{"Name":"reportName","Reference":"Profile.Name"}]},"JSONEncoding":{"ReportFormat":"NameValuePair","ReportTimestamp":"None"}}}]}'

Dmcli Get

RPI Device Logs

cJSON Report

Log Upload

https://xconf.rdkcentral.com /xconf/upload/_TELE_05-27-2021-11-27AM.json

https://xconf.rdkcentral.com /xconf/upload/_TELE_05-27-2021-11-26AM.json

Telemtry 2.0 ProfileMsgPack

The Telemetry 2.0 Component must support T2 report profiles in msgPack format.

1. Parameter Name: Device.X_RDKCENTRAL-COM_T2.ReportProfilesMsgPack

1. Type: base64 (base64-encoded msgPack)
  Access: Read and Write access
  Persistence: Not persisted
  Factory default: Null string
  Usage: When set, T2.0 will use the value of this parameter to configure its T2 active report profiles, as defined in Configuring Active T2.0 Profiles, below.
The T2.0 Parameter Device.X_RDKCENTRAL-COM_T2.ReportProfiles that accepts T2 report profiles in JSON format will be deprecated. While deprecated, if report profiles are received via both ReportProfiles and ReportProfilesMsgPack, the last configuration received will be respected.
The T2.0 Component must continue to concurrently support the legacy telemetry report profile received from XConf DCM response in JSON format.

Sample JSON Profile

JSON Expand source

{
  "profiles": [
    {
    "name": "RDKB_WIFI_DM_PROFILE",
    "hash": "hash1",
    "value": {
    "Description": "Report to DeviceInfo",
    "Version":"2",
    "Protocol":"HTTP",
    "EncodingType":"JSON",
    "ReportingInterval":60,
    "TimeReference":"0001-01-01T00:00:00Z",
    "ActivationTimeout": 120,
    "Parameter": [
        {"type":"dataModel","reference":"Profile.Name"},{"type":"dataModel","reference":"Profile.Version"},
        {
            "type": "dataModel", "name": "CmMac",
            "reference": "Device.DeviceInfo.X_COMCAST-COM_CM_MAC"
        }, {
            "type": "dataModel", "name": "2G-SSID",
            "reference": "Device.WiFi.SSID.1.SSID"
        }, {
            "type": "dataModel", "name": "5G-SSID",
            "reference": "Device.WiFi.SSID.2.SSID"
        }, {
            "type": "dataModel", "name": "2G-Name",
            "reference": "Device.WiFi.Radio.1.Name"
        }, {
            "type": "dataModel", "name": "5G-Name",
            "reference": "Device.WiFi.Radio.2.Name"
        }, {
            "type": "dataModel", "name": "2G-PWD",
            "reference": "Device.WiFi.AccessPoint.1.Security.KeyPassphrase"
        }, {
            "type": "dataModel", "name": "5G-PWD",
            "reference": "Device.WiFi.AccessPoint.2.Security.KeyPassphrase"
        }, {
            "type": "dataModel", "name": "2G-Mode",
            "reference": "Device.WiFi.AccessPoint.1.Security.ModeEnabled"
        }, {
            "type": "dataModel", "name": "5G-Mode",
            "reference": "Device.WiFi.AccessPoint.2.Security.ModeEnabled"
        }, {
            "type": "dataModel", "name": "MemStatUsed",
            "reference": "Device.DeviceInfo.MemoryStatus.Used"
        }, {
            "type": "dataModel", "name": "FrMemThrshld",
            "reference": "Device.DeviceInfo.MemoryStatus.X_RDKCENTRAL-COM_FreeMemThreshold"
        }, {
            "type": "dataModel", "name": "CpuUsage",
            "reference": "Device.DeviceInfo.ProcessStatus.CPUUsage"
        }, {
            "type": "dataModel", "name": "Uptime",
            "reference": "Device.DeviceInfo.UpTime"
        }],
    "HTTP": {
        "URL":"https://xconf.rdkcentral.com/xconf/telemetry_upload.php",
        "Compression":"None",
        "Method":"POST",
        "RequestURIParameter": [
            {
              "Name": "deviceId",
              "Reference": "Device.DeviceInfo.X_COMCAST-COM_CM_MAC"
            },
            {
              "Name": "reportName",
              "Reference": "Profile.Name"
            }
        ]
    },
    "JSONEncoding": {
        "ReportFormat":"NameValuePair",
        "ReportTimestamp": "None"
    }
   }
   }
  ]
}

Convert JSON into base-64

T2 Report Profiles can still be authored in JSON. They will just need to be sent through a msgPack and base64 process, like at https://toolslick.com/conversion/data/json-to-messagepack#, to get msgPacked data that has been base64 encoded. Choose Output Type “Base 64”.

dmcli set

dmcli eRT setv Device.X_RDKCENTRAL-COM_T2.ReportProfilesMsgPack string 3wAAAAGocHJvZmlsZXPdAAAAAd8AAAADpG5hbWW0UkRLQl9XSUZJX0RNX1BST0ZJTEWkaGFzaKVoYXNoMaV2YWx1Zd8AAAAKq0Rlc2NyaXB0aW9utFJlcG9ydCB0byBEZXZpY2VJbmZvp1ZlcnNpb26hMqhQcm90b2NvbKRIVFRQrEVuY29kaW5nVHlwZaRKU09OsVJlcG9ydGluZ0ludGVydmFsPK1UaW1lUmVmZXJlbmNltDAwMDEtMDEtMDFUMDA6MDA6MDBasUFjdGl2YXRpb25UaW1lb3V0eKlQYXJhbWV0ZXLdAAAAD98AAAACpHR5cGWpZGF0YU1vZGVsqXJlZmVyZW5jZaxQcm9maWxlLk5hbWXfAAAAAqR0eXBlqWRhdGFNb2RlbKlyZWZlcmVuY2WvUHJvZmlsZS5WZXJzaW9u3wAAAAOkdHlwZalkYXRhTW9kZWykbmFtZaVDbU1hY6lyZWZlcmVuY2XZJkRldmljZS5EZXZpY2VJbmZvLlhfQ09NQ0FTVC1DT01fQ01fTUFD3wAAAAOkdHlwZalkYXRhTW9kZWykbmFtZacyRy1TU0lEqXJlZmVyZW5jZbdEZXZpY2UuV2lGaS5TU0lELjEuU1NJRN8AAAADpHR5cGWpZGF0YU1vZGVspG5hbWWnNUctU1NJRKlyZWZlcmVuY2W3RGV2aWNlLldpRmkuU1NJRC4yLlNTSUTfAAAAA6R0eXBlqWRhdGFNb2RlbKRuYW1lpzJHLU5hbWWpcmVmZXJlbmNluERldmljZS5XaUZpLlJhZGlvLjEuTmFtZd8AAAADpHR5cGWpZGF0YU1vZGVspG5hbWWnNUctTmFtZalyZWZlcmVuY2W4RGV2aWNlLldpRmkuUmFkaW8uMi5OYW1l3wAAAAOkdHlwZalkYXRhTW9kZWykbmFtZaYyRy1QV0SpcmVmZXJlbmNl2TBEZXZpY2UuV2lGaS5BY2Nlc3NQb2ludC4xLlNlY3VyaXR5LktleVBhc3NwaHJhc2XfAAAAA6R0eXBlqWRhdGFNb2RlbKRuYW1lpjVHLVBXRKlyZWZlcmVuY2XZMERldmljZS5XaUZpLkFjY2Vzc1BvaW50LjIuU2VjdXJpdHkuS2V5UGFzc3BocmFzZd8AAAADpHR5cGWpZGF0YU1vZGVspG5hbWWnMkctTW9kZalyZWZlcmVuY2XZLkRldmljZS5XaUZpLkFjY2Vzc1BvaW50LjEuU2VjdXJpdHkuTW9kZUVuYWJsZWTfAAAAA6R0eXBlqWRhdGFNb2RlbKRuYW1lpzVHLU1vZGWpcmVmZXJlbmNl2S5EZXZpY2UuV2lGaS5BY2Nlc3NQb2ludC4yLlNlY3VyaXR5Lk1vZGVFbmFibGVk3wAAAAOkdHlwZalkYXRhTW9kZWykbmFtZatNZW1TdGF0VXNlZKlyZWZlcmVuY2XZI0RldmljZS5EZXZpY2VJbmZvLk1lbW9yeVN0YXR1cy5Vc2Vk3wAAAAOkdHlwZalkYXRhTW9kZWykbmFtZaxGck1lbVRocnNobGSpcmVmZXJlbmNl2UBEZXZpY2UuRGV2aWNlSW5mby5NZW1vcnlTdGF0dXMuWF9SREtDRU5UUkFMLUNPTV9GcmVlTWVtVGhyZXNob2xk3wAAAAOkdHlwZalkYXRhTW9kZWykbmFtZahDcHVVc2FnZalyZWZlcmVuY2XZKERldmljZS5EZXZpY2VJbmZvLlByb2Nlc3NTdGF0dXMuQ1BVVXNhZ2XfAAAAA6R0eXBlqWRhdGFNb2RlbKRuYW1lplVwdGltZalyZWZlcmVuY2W4RGV2aWNlLkRldmljZUluZm8uVXBUaW1lpEhUVFDfAAAABKNVUkzZMGh0dHA6Ly8zNS4xNjEuMjM5LjIyMC94Y29uZi90ZWxlbWV0cnlfdXBsb2FkLnBocKtDb21wcmVzc2lvbqROb25lpk1ldGhvZKRQT1NUs1JlcXVlc3RVUklQYXJhbWV0ZXLdAAAAAt8AAAACpE5hbWWoZGV2aWNlSWSpUmVmZXJlbmNl2SZEZXZpY2UuRGV2aWNlSW5mby5YX0NPTUNBU1QtQ09NX0NNX01BQ98AAAACpE5hbWWqcmVwb3J0TmFtZalSZWZlcmVuY2WsUHJvZmlsZS5OYW1lrEpTT05FbmNvZGluZ98AAAACrFJlcG9ydEZvcm1hdK1OYW1lVmFsdWVQYWlyr1JlcG9ydFRpbWVzdGFtcKROb25l

dmcli Get

profiles.msgpack

Telemetry 2 Log data

cJSON Report

Log upload

Telemetry 2.0 Report Profiles Generation in xconf,

In xconf > Telemetry > Telemetry 2.0 Profiles > create

2. In xconf > Telemetry > Telemetry 2.0 Rules > create

3. In xconf > Telemetry > Telemetry 2.0 Test page

4. Get the TelemetryProfiles

Sample SingleTelemetryProfiles,

https://xconf.rdkcentral.com:9092/loguploader/getTelemetryProfiles?estbMacAddress=b8:27:eb:1b:56:4c&firmwareVersion=rdkb-generic-broadband-image_rdk-next_20210329055811&model=&partnerId=RDKM&accountId=&ecmMacAddress=B8:27:EB:1B:56:4C&env=dev&controllerId=2504&channelMapId=2345&vodId=15660&version=2

Sample MultipleTelemetryProfiles,

Report Profiles Validation through WebPA Commands

check the webpa running status before executing the T2 Report Profiles commands,

root@RaspberryPi-Gateway:~# ps aux | grep webpa
5046 root 0:00 /usr/bin/parodus –hw-model=RPI –hw-serial-number=00000000a31b564c –hw-manufacturer=Raspberry –hw-last-reboot-reason=unknown –fw-name=rdkb-generic-broadband-image_TDK_rdk-next_20210526115302 –boot-time=1622141278 –hw-mac=B8:27:EB:1B:56:4C –webpa-ping-time=180 –webpa-interface-used=erouter0 –webpa-url=http://54.148.37.189:8080 –webpa-backoff-max=9 –parodus-local-url=tcp://127.0.0.1:6666 –partner-id=comcast –ssl-cert-path=/etc/ssl/certs/ca-certificates.crt –force-ipv4
5070 root 0:00 /usr/bin/webpa &
5632 root 0:00 grep webpa
root@RaspberryPi-Gateway:~#
